Specifications

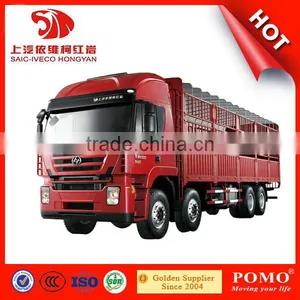

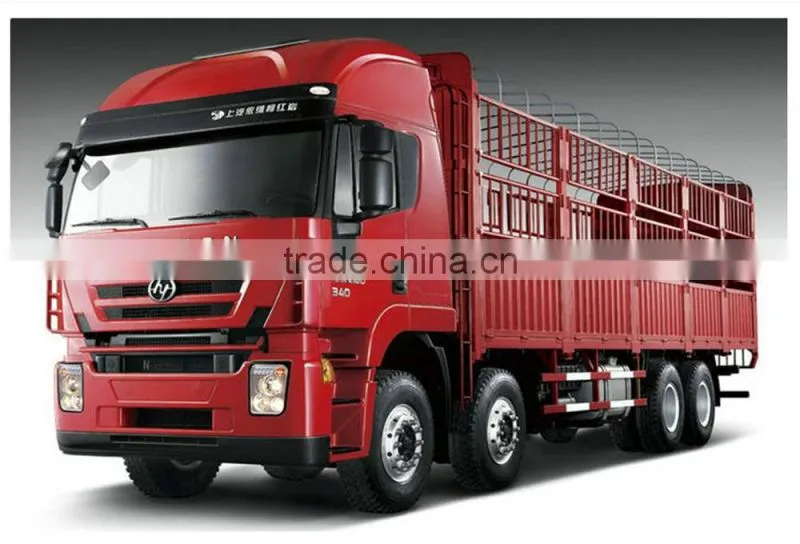

8*4 stake truck, used to carry animals. Possible to use the canvas to cover the loof and side.Product Name: 2014 Hot selling custom HONGYAN GENLYON 8*4 transportation truck
1.Products specification and details of transportation truck
| HONGYAN GENLYON 8*4 STAKE TRUCK SPECIFICATION | ||||||
| Model | CQ1315HMG466V | CQ1315HTG466V | CQ1315HMG466V | CQ1315HTG466V | CQ1315HTG466 | |
| Driving Type | 8 × 4 | |||||
| Wheelbase mm | 1800+4625+1350 | 1800+4650+1350 | ||||
| GVW kg | 11400 | 13500 | ||||
| Vehicle kerb Mass kg | 9900 | |||||
| Max. Payload kg | 19470 19405 | 17370 17305 | ||||
| Outside dimension mm | L | 11,990 | ||||
| W | 2500 | |||||
| H | 3226 3638 3838 | |||||
| Cargo box dimension | L | 9400 | ||||
| W | 2368 | |||||
| H | 800 | |||||
| Max. Speed km/h | 95 | |||||
| Engine | F2CE3681K*P F2CE3681H*P | F2CE3681G*P | F2CE3681H*P | F2CE3681G*P | F2CE3681G*P F2CE3681E*P | |
| Gearbox | 10-speed | 12-speed | 10-speed | 12-speed | 12-speed | |
| Frame | 305×8 | 305×8+4 | ||||
| Cab | genlyon high roof | |||||
| Steering | hydraulic power steering gear | ZF variable ratio hydraulic power steering gear | hydraulic power steering gear | |||
| Drive Axle | single reduction | single/hub reduction | ||||
| Tire | 295/80R22.5 16PR 315/80R22.5 16PR 11.00-20 18PR 11.00R20 18PR | 315/80R22.5 16PR 11.00-20 18PR 11.00R20 18PR 12.00-20 16PR 12.00R20 16PR 12R22.5 18PR | ||||
| Emission Standard | Euro 4 | |||||
2. Engine Specification and Details of transportation truck
| Engine Specification | |
| Manufacturer & Brand | SFH |
| Code | F2CE0681B*B052 |
| Name | Cursor 9 |
| Intake Type | Compressor, Mid-Cooling |
| External Dimension | L1335mm*W825mm*H1055mm |
| Cylinder | 6 |
| Valve | 4 |
| Displacement (mL) | 8709 |
| Bore Diameter (mm) | 117 |
| Stroke (mm) | 135 |
| Rated Power (kw) | 280 (380 HP) |
| Power VS rpm (r/min) | 2100 |
| Torque (N.m) | 1500 |
| Torque VS rpm (r/min) | 1200 - 1600 |
| Fuel | Diesel |
| Fuel Consumption (g/KW.h) | 196 |
| Net Weight (kg) | 865 |
| Fuel Supply | Common Rail |
| Emission | Euro 4 |
Our Advantages:
1. We start to manufacture the heavy truck since 1965, and the joint venture with IVECO (FIAT Group) has inherited the advanced technology from Italy.
2 A combination of decades manufacture experiences and the top heavy duty vehicle technique platform – STRALIS, reaches perfect level of fashion and quality, focusing on humanization design and adventured techniques.
3 Synchronizing European style and European testing standard, forges a global quality.
4 Comfortable, reliable, energy conserving and environmental protection
5 With a peremptory but not displaying style, the double V European style front face initiates a brand new image of heavy duty vehicle.
6 The most advanced painting art efficiently resists the corrosion, upgrades the vehicle, and enhances the tactile sensation.
3.More product for you to choose

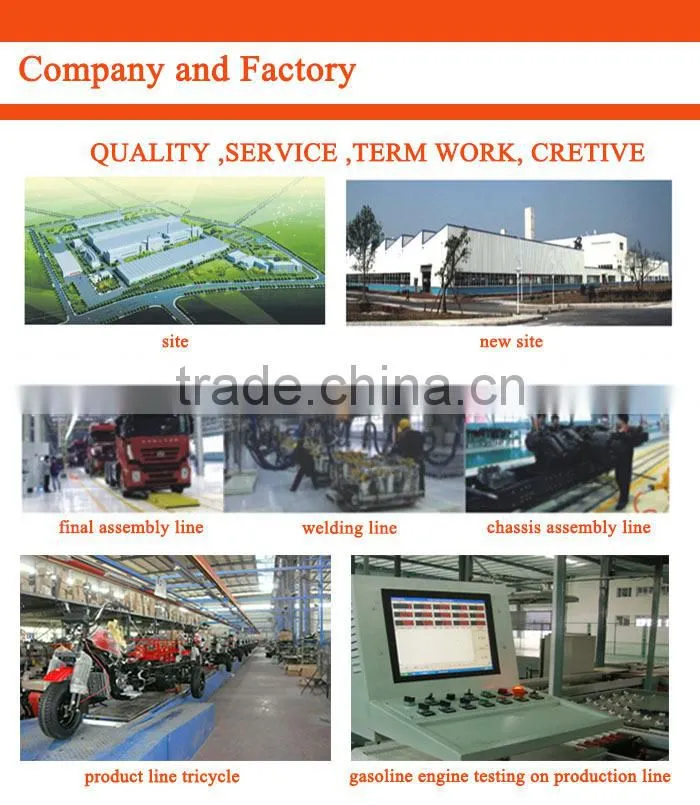

1.Our company
Chongqing Popular Motor Machinery Electronic Co.,Ltd (Popular Motor) is founded
in 2004 and located in Chongqing, the youngest municipality in the Southwest of China.
Popular Motor consistently enhances market development, invests in R & D, upgrades
production and establishes quality assurance system. Popular Motor possesses a professional team integrated with technique and marketing, R & D center, testing center, and the core products manufacturing plants, and has become a professional and international company integrated with science, industry and trade.
Looking into the future, Popular Motor is striding towards an extremely competitive and highly respected built-to-last enterprise.
2.our Culture
3.Our Team :
4.Our Market:
| Main Markets: | South America63.94% | Tricycle Frame, Tricycle Rear Bridge, Tricycle |
| Southeast Asia33.64% | Tricycle Frame, Tricycle Rear Bridge, Tricycle, Gasoline Engine, Generator | |
| Africa2.42% | Tricycle Rear Bridge, Tricycle | |
| Total Annual Sales Volume: | USD 3,300,000 | |
| Export Percentage: | 91% - 100% | |
We are here for you! Choose us, win your market
1 Each year you may receive extra reward according to the total amount of the order.
2 Varied terms of payment give you credit and more market share.
3 Professional engineers develop brandnew products, bring you more profit.
4 Quality guarantee ensure you become a respected built-to-last enterprise.
5 Experienced internal marketing team provides you ideal service.
