Model | IGQN-180 | IGQN-200 | IGQN-230 | IGQN-250 | |||||
Power(hp) | 50 | 55 | 60-100 | ||||||
Cultivate width (m) | 1.8 | 2.0 | 2.3 | 2.5 | |||||
Cultivate deepness (cm) | Dry land: 8-16 paddy field: 10-18 | ||||||||
Model of blade | IT225/ IT245/ IT260 | ||||||||
Quantity of blade | 50 | 58 | 62 | 66 | |||||
Speed of forward (km/h) | 2-5 | ||||||||
Throughput (sq.m./h) | 2500-6000 | 2700-6700 | 3200-8000 | 3300-8700 | |||||
Oil wear (kg/1000 sq.m.) | 1.5-1.8 | ||||||||
Link type with tractor | Three point suspension | ||||||||
Size L*W*H (mm) | 1020*2106*1152 | 1020*2346*1152 | 1020*2586*1152 | 1020*2776*1152 | |||||
Weight (kg) | 405 | 420 | 435 | 450 | |||||
Gear oil fillup (kg) | 6 | 6 | 6 | 6 | |||||
Speed of tractor PTO (r/min) | 1000 | 720 | 540 | ||||||
Bevel gear transmission ratio | 17:40 | 17:37 | 17:40 | 17:37 | 17:40 | 17:37 | |||
Speed of tiller shaft | 291 | 314 | 209 | 226 | 200 | 236 | |||
Model | IGQN-125 | IGQN-140 | IGQN-150 | |
Power(kw) | 13.4-14.9(18-20hp) | 18.6-26.1(25-35hp) | 22.5-29.8(30-40hp) | |
Cultivate width (cm) | 125 | 140 | 150 | |
Cultivate deepness (cm) | Dry land: 10-14 paddy field: 12-16 | |||
Model of blade | IT225 | |||
Throughput (hm/h) | 0.09-0.46 | 0.1-0.52 | 0.1-0.6 | |
Oil wear (kg/h) | 6-10 | 8-12 | 8-12 | |
Link type with tractor | Three point suspension | |||
Size L*W*H (mm) | 960*1456*1096 | 960*1656*1096 | 960*1756*1096 | |
Weight (kg) | 248 | 253 | 268 | |
Gear oil fillup (kg) | 4 | 4 | 4 | |
Speed of tractor PTO (r/min) | 540 | 720 | ||
Bevel gear transmission ratio | 19:28 | 15:30 | ||
Speed of tiller shaft | 232 | 228 | ||

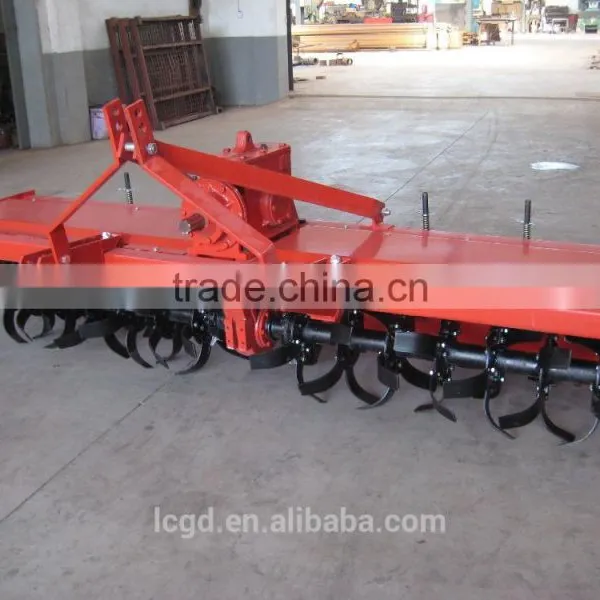

Rotary cultivator:
Wide coverage,symmetric hanging structure covering tire mark,reliable quality,high performance suitable for dry land and paddy fields,saving time and effort,with low cost,etc.
Our company has been a reliable and excellent manufacturer of disc blades, plough discs , disc harrow , disc plough and disc ridger .We can supply all various discs according to customers' drawing and samples .
All various blades:
If you are interested about our products , kindly send us your enquiry !
