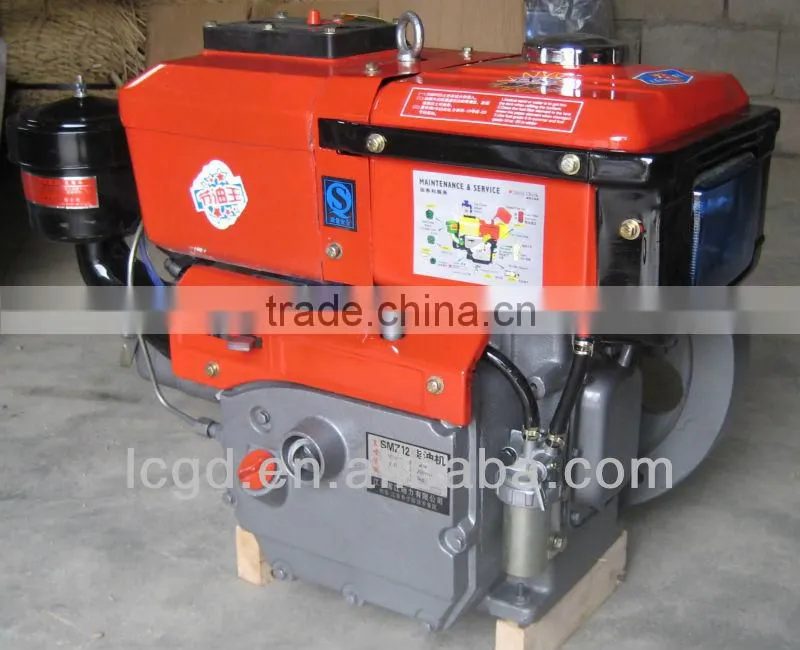

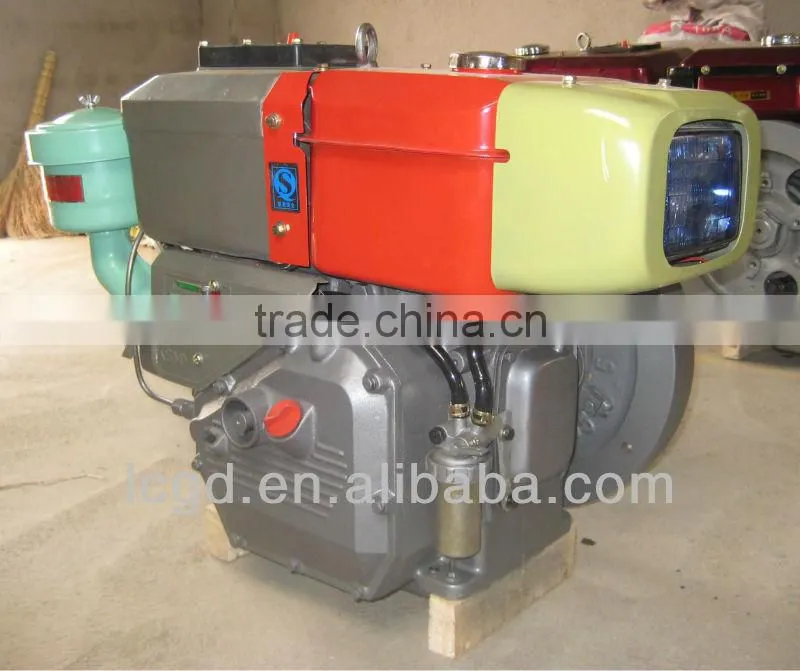

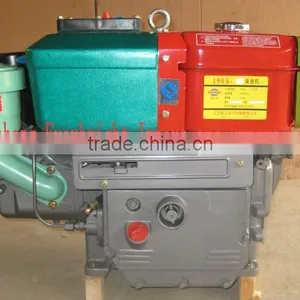

Water Cooled Diesel Engine R170

Name: Water Cooled Diesel Engine R170
Brand: changfa
SKU: 141089938
Availability: InStock

US$ 1,400 - 3,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Usage:

Automobile

Fuel:

Diesel

Liaocheng Everbright Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Automobile

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Water-cooled

Start Electric Start

Place of Origin Jiangsu, China

Brand Name changfa

Model Number RA180-R195

Dimension(L*W*H) 720*420*650

Weight 72kg

Certification ISO

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Model	R170/R175 / R175A / R175N / R175AN
Type	Single cylinder, horizontal, water-cooled (hopper) or radiator, 4-stroke, swirl chamber or direct injection.
Bore(mm)	75
Stroke(mm)	80
Displacement(L)	0.353
Rated speed(r/min)	2600
Rated power(kw/hp)	4.41 / 6
Lubricating system	Combined pressure and splashing
Starting system	Hand cranking or electric starting
Net weight(kg)	72
Overall size (LWH)(mm)
Packing	Wooden case
Packing size(LWH)(mm)

Model	R180 / R180N / R180L / R180NL / R180ND
Type	Single cylinder, horizontal, water-cooled (hopper) or radiator, 4-stroke, swirl chamber or direct injection.
Bore(mm)	80
Stroke(mm)	90
Displacement(L)	0.452
Rated speed(r/min)	2200
Rated power(kw/hp)	5.88 / 8
Lubricating system	Combined pressure and splashing
Starting system	Hand cranking or electric starting
Net weight(kg)	92
Overall size (LWH)(mm)	670378560
Packing	Wooden case
Packing size(LWH)(mm)	720420650

Model	R185 / R185N / R185L / R185NL / R185ND
Type	Single cylinder, horizontal, water-cooled (hopper) or radiator, 4-stroke, swirl chamber or direct injection.
Bore(mm)	85
Stroke(mm)	90
Displacement(L)	0.51
Rated speed(r/min)	2200
Rated power(kw/hp)	6.62
Lubricating system	Combined pressure and splashing
Starting system	Hand cranking or electric starting
Net weight(kg)	95
Overall size (LWH)(mm)	730378560
Packing	Wooden case
Packing size(LWH)(mm)	720420650

Model	R190 / R190N / R190L / R190NL / R190ND
Type	Single cylinder, horizontal, water-cooled(hopper) or radiator, 4-stroke, swirl chamber.
Bore(mm)	90
Stroke(mm)	90
Displacement(L)	0.573
Rated speed(r/min)	2200
Rated power(kw/hp)	8.09
Lubricating system	Combined pressure and splashing
Starting system	Hand cranking or electric starting
Net weight(kg)	100
Overall size (LWH)(mm)	670378560
Packing	Wooden case
Packing size(LWH)(mm)	720420650

Model	ZP190 / ZP190N / ZP190L / ZP190NL / ZP190ND
Type	Single cylinder, horizontal, water-cooled(hopper) or radiator, 4-stroke, direct injection.
Bore(mm)	90
Stroke(mm)	90
Displacement(L)	0.573
Rated speed(r/min)	2300
Rated power(kw/hp)	7.35
Lubricating system	Combined pressure and splashing
Starting system	Hand cranking or electric starting
Net weight(kg)	98
Overall size (LWH)(mm)	670378560
Packing	Wooden case
Packing size(LWH)(mm)	720420650

Model	ZS195 / ZS195N / ZS195BM / ZS195NBM
Type	Single cylinder, horizontal, water-cooled(hopper) or radiator, 4-stroke, swirl chamber or direct injection.
Bore(mm)	95
Stroke(mm)	100
Displacement(L)	0.702
Rated speed(r/min)	2300
Rated power(kw/hp)	8.82
Lubricating system	Combined pressure and splashing
Starting system	Hand cranking or electric starting
Net weight(kg)	110

Packing	Wooden case
Packing size(LWH)(mm)

Model	ZS1100 / ZS1100N / ZS1100BM / ZS1100NBM
Type	Single cylinder, horizontal, water-cooled(hopper) or radiator, 4-stroke, swirl chamber or direct injection.
Bore(mm)	100
Stroke(mm)	100
Displacement(L)	0.902
Rated speed(r/min)	2200
Rated power(kw/hp)	11.03
Lubricating system	Combined pressure and splashing
Starting system	Hand cranking or electric starting
Net weight(kg)	120

Packing	Wooden case
Packing size(LWH)(mm)
