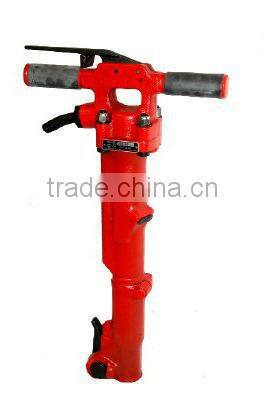

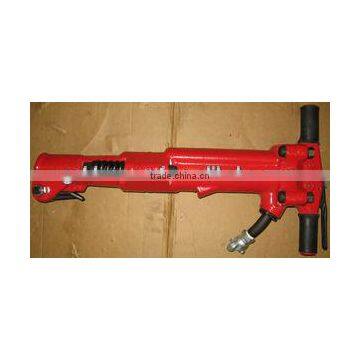

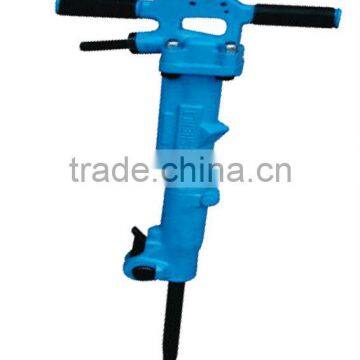

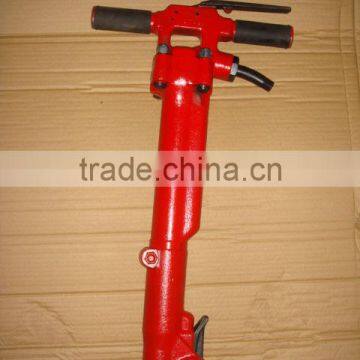

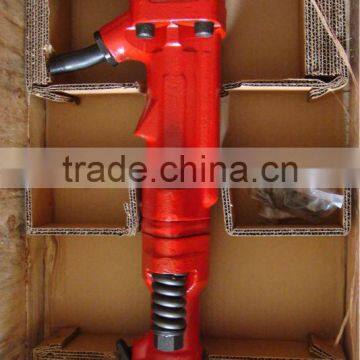

TPB40 paving breaker
Operation Manual
Usage:
Drilling in mine and coal bed
Crashing concrete and clay
Blasting in civil engineering and underground construction
Instructions:
Compressor:
Capacity of the compressor is sufficient;
Whether the drain has been remoived;
Air hose:
Whether there is any damage to the air houe;
Whether the size and length is correct;
Clean the interior of the air hose when using compressed air;
Inspection of paving breaker:
Whether the is looseness in the screw thread areas;
Whether there is a crack or breakage in the maid body;
Inspection of chisel:
Whether the chisel is suitable for shank of paving breaker;
Whether the chisel is suitable for the work;
Whether there is wear of cracks;
Whether the chisel is mounted correctly;

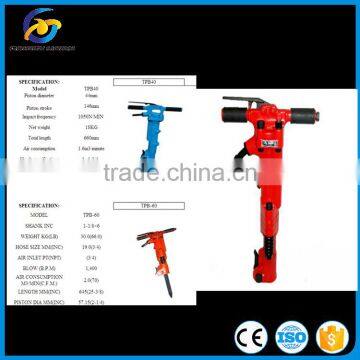

Specifications:
Piston diameter | 44mm |
Piston stroke | 146mm |
Impact frequency | 1050N/MIN |
Net weight | 18KG |
Total length | 660mm |
Air consumption | 1.6m3/minute |
Shank specifications | 1×4-1/4 |
Inlet size | 3/4pt |
Air pressure | 6kg/cm2 |
