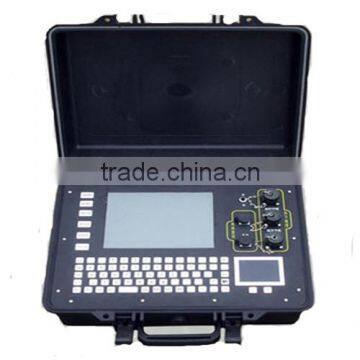

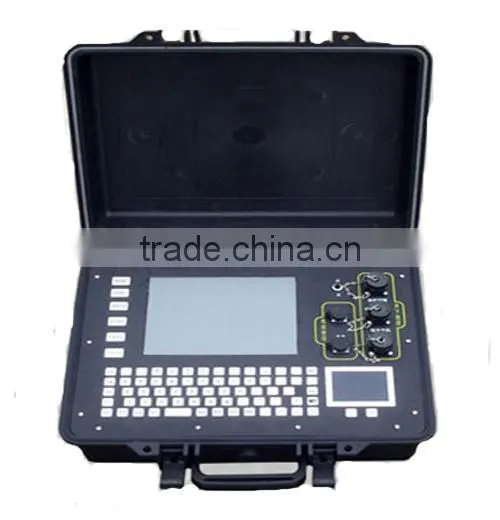

ATEM-6 Mineral detect instrument&Transient Electromagnetic water detector

ATEM-6 Mineral detect instrument&Transient Electromagnetic water detector:

1, Detect various metal and non-metal ores, underground water (including carst water), geological disaster survey and steep dip geological formation;

2, Especially applied in coal bed and coal goaf area and water-filling area detection;

3,Search geothermal resources, oil-gas field census and exploration in high-resistance covering area (like carbonate rock, igneous rock and frozen soil covering area), etc. The maximum prospecting depth can exceed 1000m.

Main features:

1,First apply 200A large currency square wave to supply power continuously. It uses portable power supply to realize big currency. The power supply working method is “Big currency small coil” (25 times, 25m transmitting coil), the prospecting depth can reach 1000m, which is specially fit for field terrible working condition and can improve working efficiency obviously.

2,Industrial PC as main controller and Windows as control panel. The supply currency, power pulse width, sampling rate and stacking folds etc. all set by English menu; computer large capacity storage space guarantees large-capacity density sampling.

3,Good security. The receiving circuit applies high performance CMOS chip

assemble promoted latest to make total unit perfect function.

4,High sampling rate.

5,Multiple anti-jamming technologies.

6,Advanced interpretation software system.

Main parameter:

Receiver

1,A/D converter: 16Bit M/S

2,Sampling rate: 1μS    3μS    16μS

4,Dynamic range: 140dB

5,Background noise: <1&mu;

6,CPU: Pentium 500M , low power consumption

7,Memory: 128M

8,Hard-disk: 40G

9,Interface: USB, parallel port, serial port, network card

10,Display: Colorful high brightness TFT 800&times; 600 lattice

11,Main amplifier: 1 time, 10 times, 100 times, 1000 times

12,Stacking fold: 1-9999

13,Channel: 2

14,Measure channel: any programming

15,Pass band: 0-400kHz

16,detect depth: 800M

Transmitter

1,Transmitting currency strength (A): 1-60 adjustable

2,Currency frequency (ms): 225, 75, 25, 12.5, 6.25

3,Max. transmit power (KW): 12

4,Output voltage (V): 12-96

5,Power-off time (us): 1-300

6,Delay time range: 1us-160ms

7,Input voltage (V): 12-96 battery

8,Transmitting wave form: bipolar rectangle wave

9,Transmitting coil: 5*5 single turn-300*300 single turn

 Transient Electromagnetic Method (TEM) is a kind of time-domain electromagnetic method , which uses ore and underground water’s conductivity and

magnetoconductivity difference as main substance base, then applies non-earthing loop or earthing line source to send first pulse magnetic field to ground according to electromagnetic induction theory; Then in the gap uses coil or earthing electrode to observe second eddy field, and also study the space and time spread laws to search underground water and solve other geological problems.

And it is a new electromagnetic prospecting method. But the promotion was limit due to factors like high price, small transmission power, low efficiency, big transmission loop in deep exploration and hard to work with big transmit loop in complex landform. Then our RD department develops portable exponential decay type transient electromagnetic system with big currency supply. But capacitor pulse discharge will produce big currency, it is its shortage, also the reason that transmit wave form is not square, while attenuating wave with continuous attenuating and changing amplitude, the spectrum composition is very complex; the turn-off phase transition currency amplitude which is crucial to producing useful transient second field signals is much less than that of turn-on rise phase transition amplitude; limited by capacitor storage energy, the transmit wave pulse width is small, so the deep survey is hard to carry out; It also can not send amplitude, continuous waves with same cycle and so on, therefore it is also not an ideal method.
