Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Jack > GM-90A Hydraulic Rock Splitter
US$ 1,000 - 3,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
GM
Model Number:
GM-90A
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Robin HCR80K Tamper RammerUS$ 100 - 500MOQ: 1 Unit -
GMP-100 Superior Concrete Power TrowelUS$ 1 - 500MOQ: 1 Unit
-
GMC-100 Construction Plate CompactorUS$ 1 - 500MOQ: 1 Unit
-
ZPN35-C Electric Concrete VibratorUS$ 10 - 50MOQ: 1 Unit
-
GMS-300 Concrete Cutting Machine With Three Kinds of EngineUS$ 200 - 800MOQ: 1 Unit
Place of Origin
Fujian, China
Brand Name
GM
Model Number
GM-90A
Type
Other, Hydraulic splitter

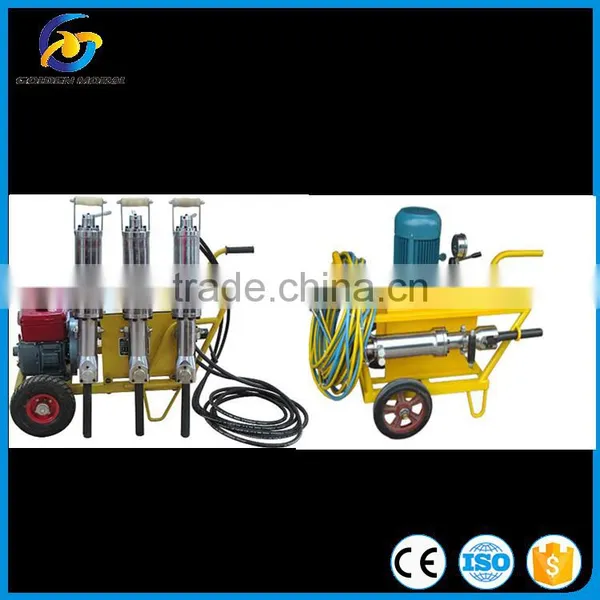

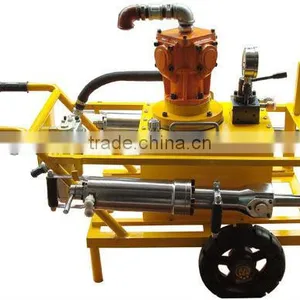

GM-90A Hydraulic Rock Splitter :

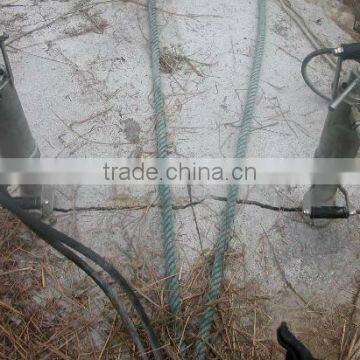

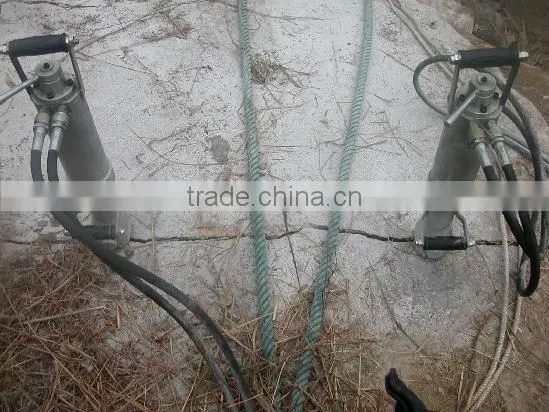

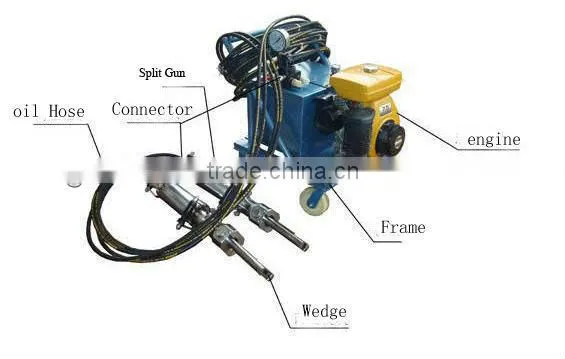

The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool.It can controllably split rock or concrete.Especially suit for cabined area where large machine can not work.Such as hydraulic breaker and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also wodely use in the place where need non-explosive and blast forbidden.
| Hydraulic splitter machine Specification: | |||||||
| Model | splitter dia. | splitter depth | Wedge length | Splite Width | Breaking Force | Real breaking force | Splitter weight/pc |
| (mm) | (mm) | (mm) | (mm) | (T) | (T) | (kg) | |
| GM-80A | 35-38 | ≥300 | 150 | 10~35 | 500 | 280 | 20 |
| GM-80B | 38-42 | ≥400 | 200 | 10~40 | 700 | 500 | 22 |
| GM-80C | 38-42 | ≥500 | 250 | 10~40 | 680 | 450 | 23 |
| GM-90A | 38-42 | ≥600 | 300 | 10~40 | 600 | 420 | 28 |
| GM-90B | 45-48 | ≥800 | 380 | 10~40 | 826 | 600 | 40 |
| Engine Specification: | |||||||
| Engine | Size(mm) | Weight(kg) | Oil Capacity(L) | Power | Working pressure(MPa) | Flow(L/m) | Splitter qty(Pc) |
| Gasoline engine | 1200*1170*800 | 100 | 40 | 7.5Hp | 55-60 | 2--13 | 1--10 |
| Diesel engine | 1150*1180*940 | 120 | 40 | 4.2KW | 55-60 | 2--13 | 1--10 |
| Electric engine | 380*240*410 | 23 | 5 | 0.75KW(220V/380V) | 55-60 | 0.7 | 1 |
| 384*280*620 | 75 | 30 | 4KW(380V) | 55-60 | 2--13 | 1--10 | |
| 450*410*700 | 100 | 40 | |||||
