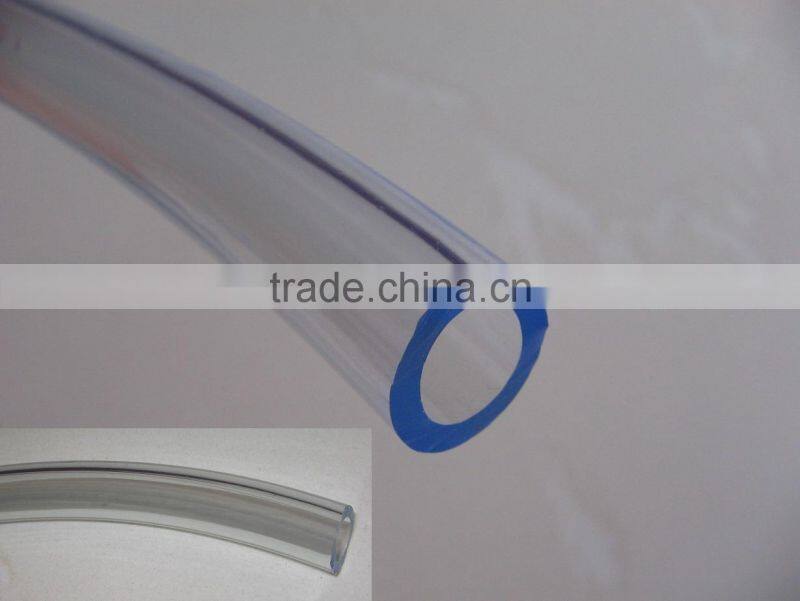

PVC Clear Single Hose
Application: Widely used for conveyance of water, oil, weak chemicals and other liquids under low pressure condition in foodstuff, sanitary, industry, agriculture and aquatic animals equipment etc.
Tube: Non-toxic clear flexible PVC.
Characteristics: Flexible, transparence and corrosion resistant with applications are widely.
Temperature range: -5ºC - +50ºC (+23ºF to+122ºF)
Technique parameter:
Inside Diameter | Outside Diameter (mm) | Wall (mm) | Working Pressure(Mpa) | Burst Pressure (Mpa) | Length Max.(m) | Weight (kg/m) | Packing Measurement D*H(mm) | |
inch | mm | |||||||
1/4” | 6 | 8 | 1 | 0.15 | 0.45 | 100 | 0.029 | 380*110 |
5/16” | 8 | 10 | 1 | 0.15 | 0.4 | 100 | 0.037 | 400*110 |
3/8” | 10 | 12 | 1 | 0.15 | 0.4 | 100 | 0.045 | 420*110 |
1/2” | 12 | 15 | 1.5 | 0.1 | 0.3 | 50 | 0.083 | 420*120 |
5/8” | 15 | 18 | 1.5 | 0.1 | 0.3 | 50 | 0.101 | 420*130 |
3/4” | 19 | 23 | 2 | 0.1 | 0.3 | 50 | 0.172 | 560*160 |
1” | 25 | 30 | 2.5 | 0.1 | 0.3 | 50 | 0.281 | 660*160 |
1-1/4” | 32 | 38 | 3 | 0.1 | 0.3 | 50 | 0.429 | 650*160 |
1-1/2” | 38 | 44 | 3 | 0.1 | 0.3 | 50 | 0.502 | 780*200 |
2” | 50 | 58 | 4 | 0.1 | 0.25 | 40 | 0.882 | 950*250 |
Note: 1MPa=10bar≈145psi≈10kgf/cm²
