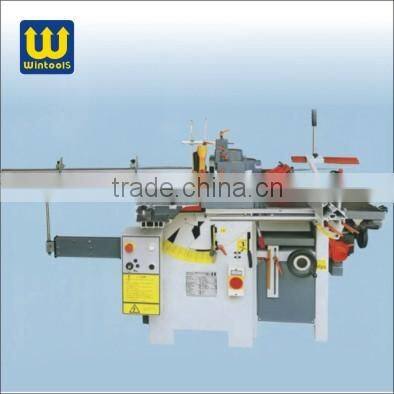

Multifunction Woodworking Combined Machine 2.2kw
- 1000 Piece / Pieces per Month
- SHANGHAI/NINGBO
- T/T Credit Card PayPal
- Guangzhou Low price HT Advanced Good Quality Cutt-off Machine, Woodworker Cutter, Multiaspect Saw
- Industrial-Grade Good Quality Marble Cutting Machine, Electric Lithium Cutting Machine, Welding Machines
- Good Quality Power Tools Adanced Grooving Machine,Wall Chasers,Push Hand Saw,Cutting Machine
- cordless tile cutter saw
- cordless miter saw
- cordless circular saw
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WINTOOLS | Model Number: | WT02553 |
Power Source: | Electricity | Saw Type: | Other, COMBINED MACHINE | Application: | Other, MULTIFUNCTION |
Rated Voltage: | 230V | Rated Input Power: | 2.2KW | No-Load Speed: | 5700RPM |
Frequency: | 50HZ | Blade Diameter: | 300MM | Max. Cutting Width: | 80MM |
Max. Cutting Depth: | 115MM | Dimensions: | 1720x2650x1360mm | Weight: | 600kg |
Product Description
Products details:
Type | WT02553 |
Panel saw | |
Main saw speed | 4375rpm |
Main saw diameter | 300mm |
Spindle diameter of main saw | 30mm |
Scoring saw speed | 7000rpm |
Scoring saw diameter | 100mm |
Spindle diameter of scoring saw | 22mm |
Moulder | |
Spindle diameter | 30mm |
Max.tool diameter | 160mm |
Cutter block length | 105mm |
Cutter block vertical stroke | 115mm |
Rotation speed | 4300/6000rpm |
Mortising machine | |
Working table | 250×1500mm |
Longitudinal stroke | 200mm |
Cross stroke | 100mm |
Vertical stroke | 90mm |
Tool coupling diameter | 16mm |
Surface planer | |
Working table | 300×1500mm |
Planer shaft diameter | 70mm |
Planer shaft rotation speed | 5700rpm |
Knives | 3pcs |
Work piece min.length | 15mm |
Infeed table max.adjustment | 4mm |
Thicknessing planer | |
Working table | 300×660mm |
Work piece min.length | 200mm |
Max. removal thickness | 5.5mm |
Infeed speed | 7m/min |
Piece passage | 220mm |
Min.piece passage | 4mm |
Warning:
1. Keep the work area clean
2. Don't use the tools, in the rain, much humidity or where flammable liquids and gases exists.
3. Keep The electric wire away from heat, oil and sharp objects. The wire should be replaced when it is
damaged.
4. Do not exceed the tool's working-ability
5. Don't using small power of electricity when it overload works
6. Do not use this tool to work out of its functions.
Packing details:
Packing | Colour box |
Qty | 1Pc |
Measurement: | 1720x2650x1360mm |
Net weight: | 600kg |
Q&A:
1. Do you have MOQ limited: General we require 500 sets for OEM packing. But we will support you with small quantity for trial order.
2. Do you accept OEM service: Yes,OEM is available. We own professional designing team to support customized packing for free.
3. Do you supply Sample product for testing: Yes we do. And we will turn the sample cost back to you in your formal order.
4. What is the Quality level of your tool: we can supply DIY, Semi-Professional, Professional and Industrial quality tools as per you required.
5. What’s your main Market for the power Tool: we export world widely including Russia,UK.,USA.,Germany,Poland,Japan,Dubai,etc. We are able to recommend you the most popular item in your market.
6. What is your Payment term: Generally speaking, we accept 30% T/T in advance + 70% T/T against B/L copy OR 100% L/C at sight.
7. What is the Delivery time: Generally speaking is about 45-60 days.
