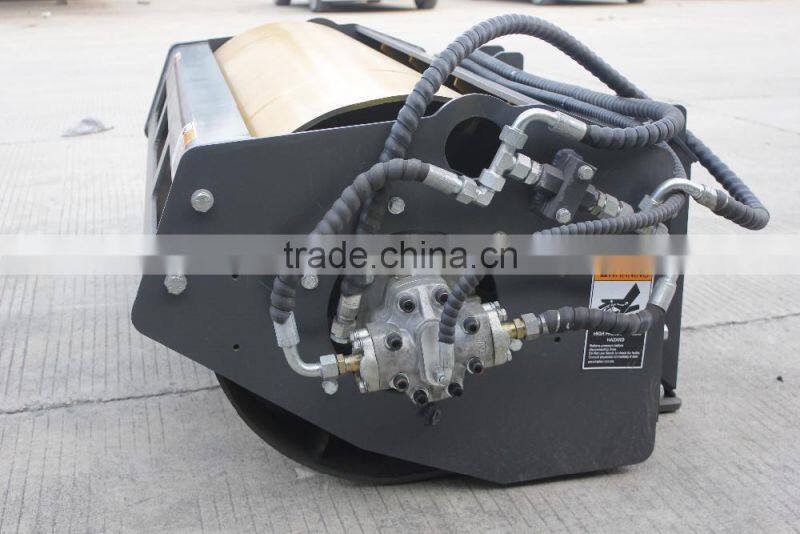

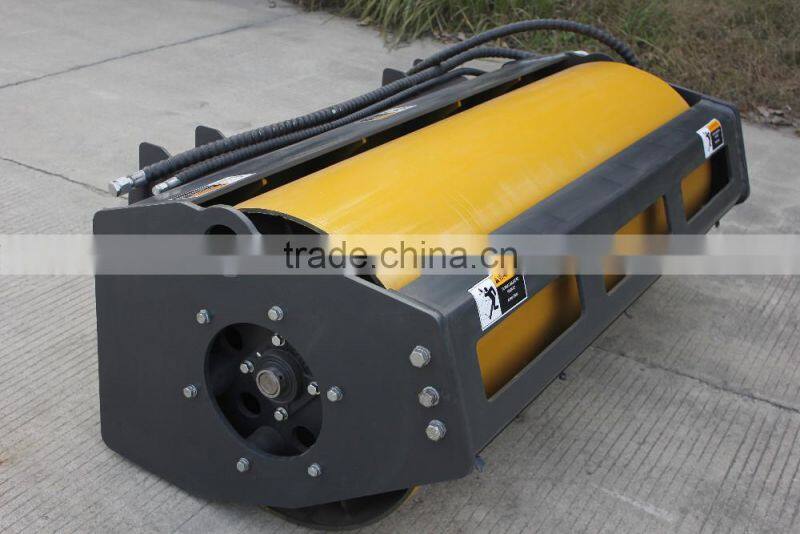

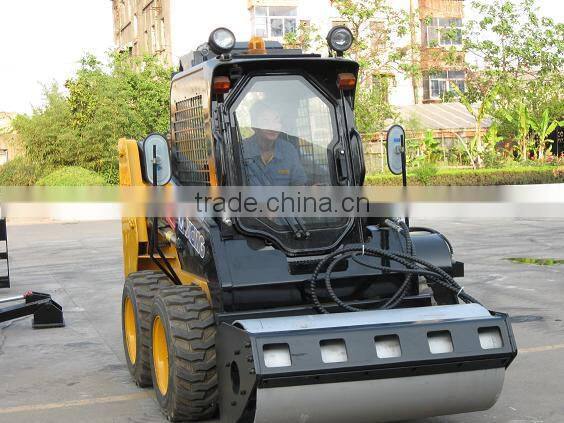

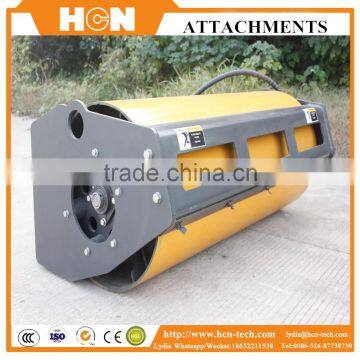

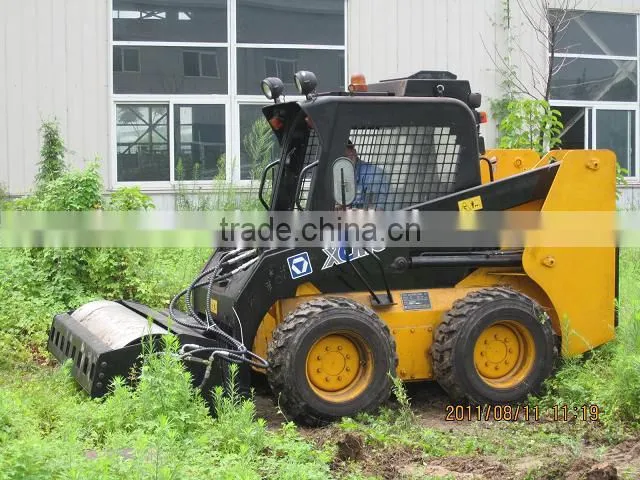

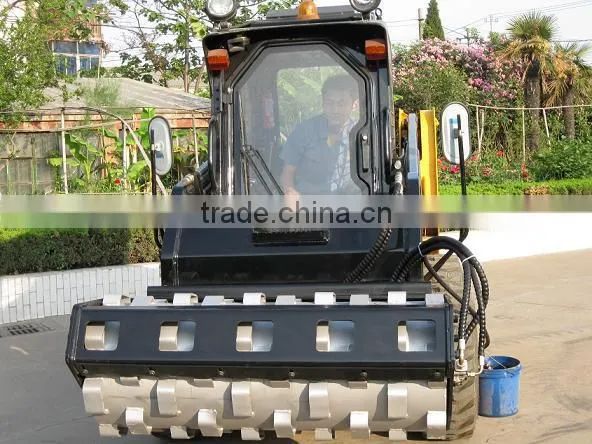

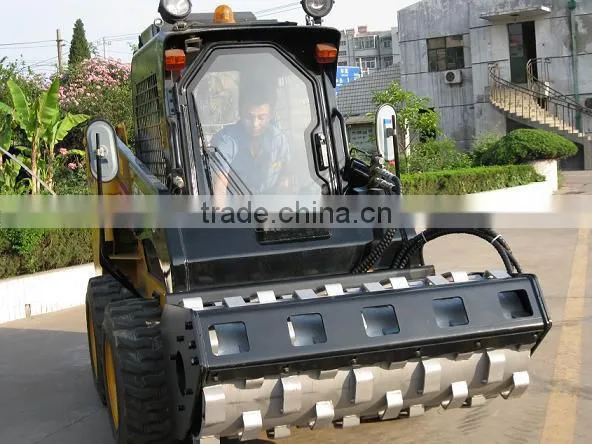

loader mounted vibratory roller
1.Product Descriptions:
2.vibratory roller blade not directly contact with the ground,won't produce any damage to
the road
2.Applications:
vibratory roller is used to vibrate the Rental fleets, contractors, landscaping, roadways,
walkways, bike paths, golf courses, bridges and parking lots.
3.Technical Specifications:
| vibratory roller model | 020536 | 020548 | 020560 | 020566 | 020572 | 020584 |
| drum width(mm) | 914 | 1220 | 1614 | 1677 | 1855 | 2134 |
| overall width (mm) | 1067 | 1550 | 1720 | 1830 | 2007 | 2286 |
| overall height (mm) | 565 | 565 | 565 | 788 | 788 | 788 |
| overall length (mm) | 864 | 864 | 864 | 990 | 990 | 990 |
| drum dimeter(mm) | 530 | 530 | 530 | 609 | 609 | 609 |
| operating weight(kg) | 381 | 763 | 890 | 976 | 1044 | 1149 |
| dynamic force(kn) | 20 | 26 | 31 | 35 | 39 | 43 |
| vibrating speed(vpm) | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| drum oscillation(degrees) | 15 | 15 | 15 | 15 | 15 | 15 |

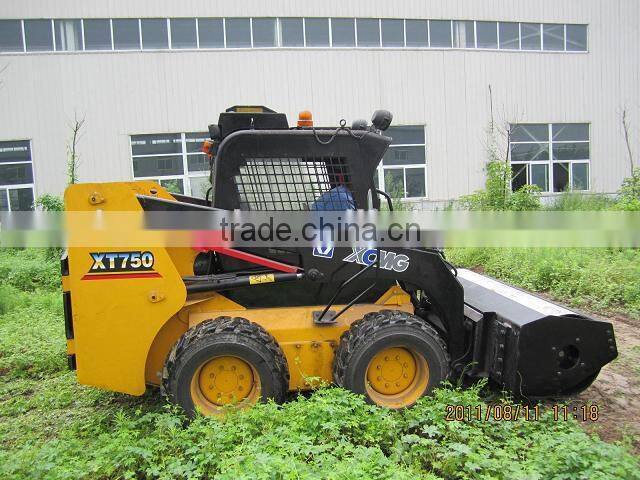

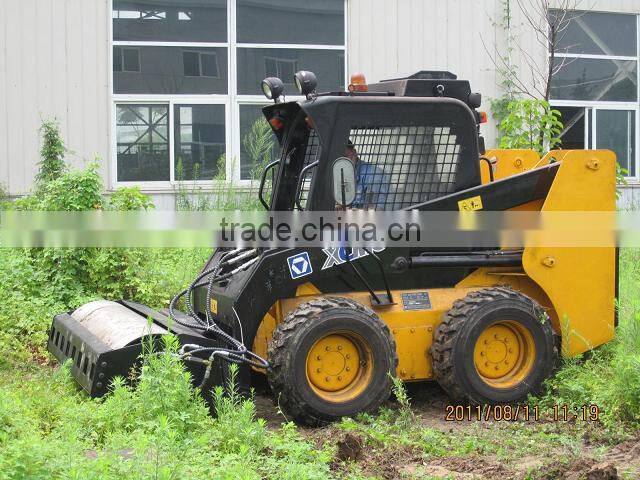

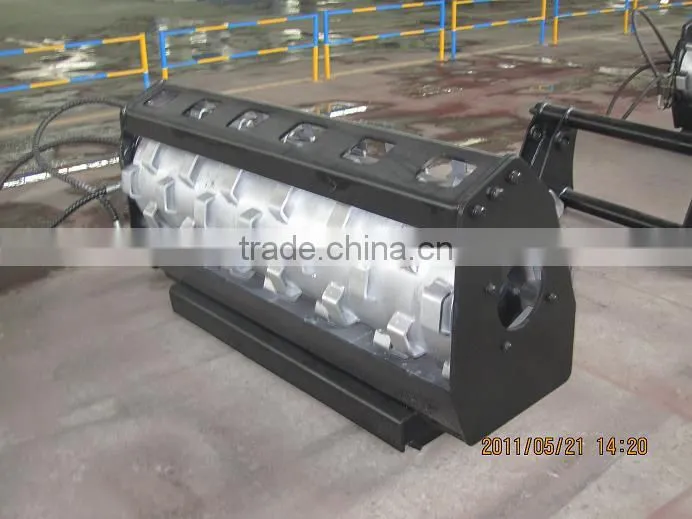

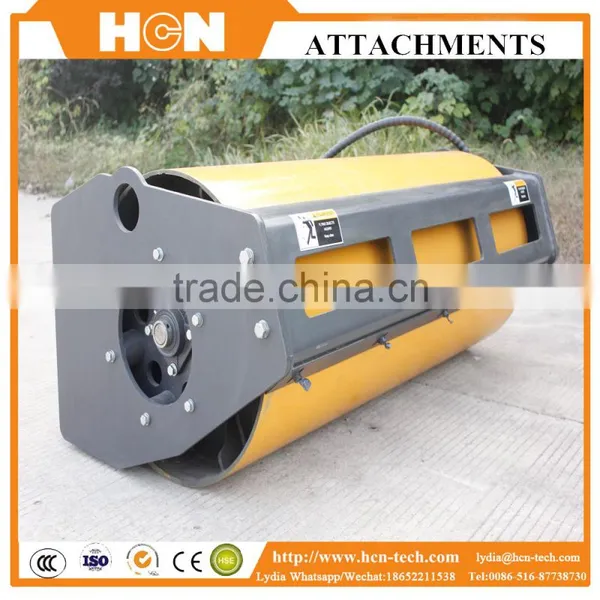

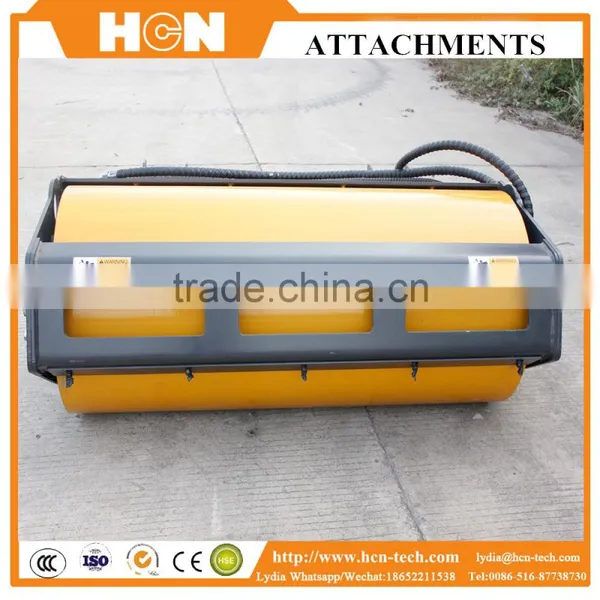

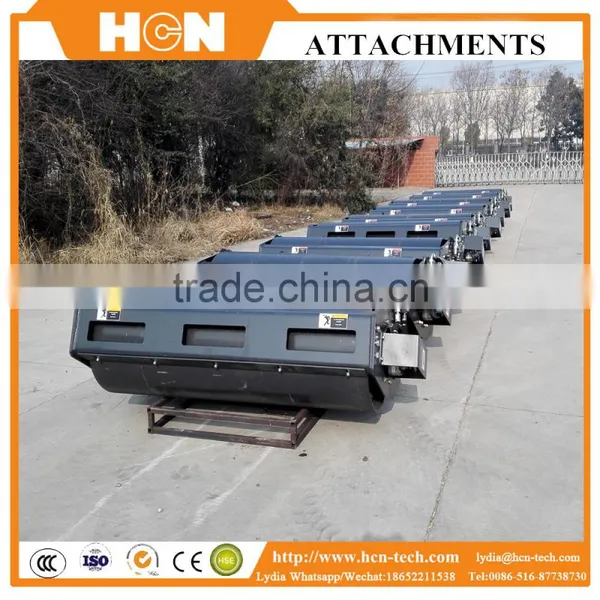

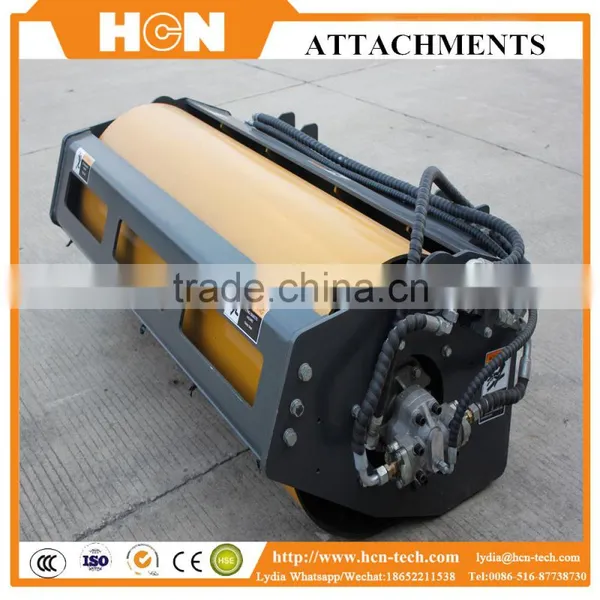

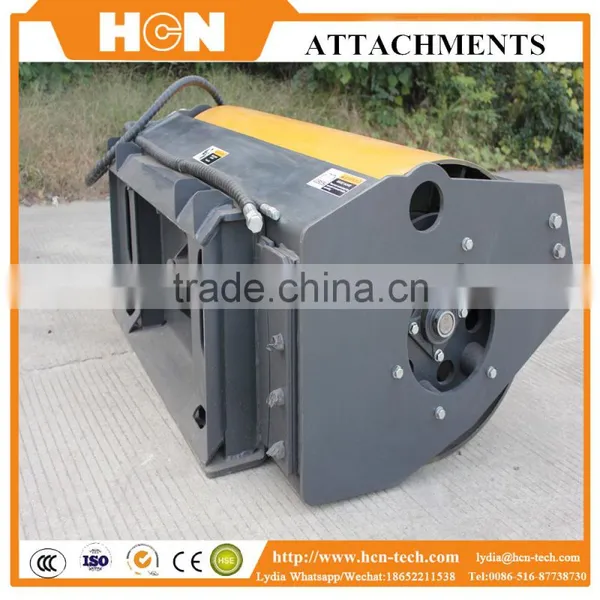

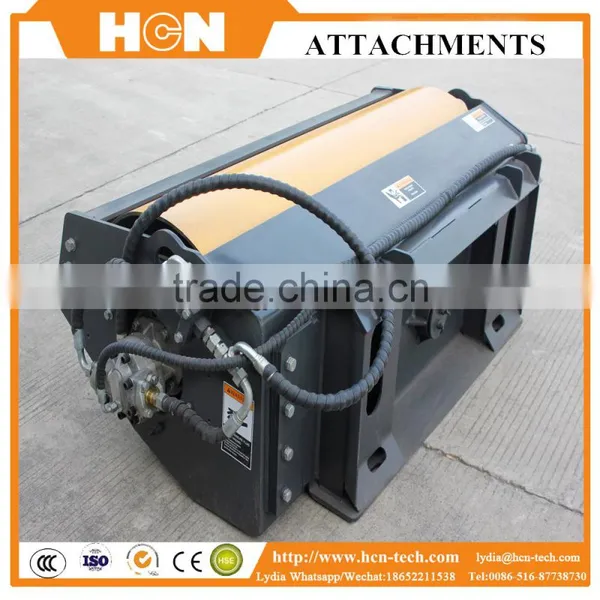

4.More Pictures:
|
4.Trade Market:
Western Europe,Eastern Asia,Mid East,Oceania,Africa, Southeast Asia, Eastern
Europe,South America,North America.
5.Contact Information:
with the standard iron frame pacakge by LCL or FCL
Professional Package:
12 months or 1500 working hours,whenever comes first, and for key parts (Hydraulic Motor,
Hydraulic Cylinder, Hydraulic Pump ).
Xuzhou HCN Machinery Technology Co.,Ltd. subordinated to HCN Technology Group Co.,Ltd, which is a high-tech enterprise, advanced unit in the domestic construction machinery industry and one of road machinery technological innovation and exchange center corporate.
The company is located in Economic Development Zone, Jinshan Bridge, Xuzhou City, with beautiful scenery, convenient transportation and elegant environment, covering an area of 12847.2 square meters, more than 120 employees, including over 40 technical personnel, who re responsible for product development and design, design verification, product testing, performance testing and other work, played a huge role in R & D reliable performance, technologically advanced quality products.
Main products are: skid steer loaders,wheel loaders,forklifts and their attachments like augers,breakers,mulchers,tree spades,buckets,grapples,sweepers,etc.
A.Factory picture:
B.Production Equipment:
C.Customer Visit:
