1.Product Descriptions:
- 4 in 1 bucket attachment can grab the teeth profiled on both front/rear overlap for greater grip of logs or other debris.
- Side curved sections create greater opening bucket width of 860mm.
- 1 Piece heavy duty 6mm grill/hungry board with unique high visibility design, for clear vision of both front and back bucket edge.
- Standard Heavy Duty 20mm Floors
- Optional reversible bolt on cutting edges for all 3 edges of the bucket.
- Optional chisel or tiger teeth with pin on design.
- Full Range from 880mm to 2130mm
- 12mm and 16mm floors available on request.
2.Application Field:
4 in 1 bucket attachment is used to grading, scraping, grappling, dozing dirt or material
spreading most construction work.
3.Technical Specifications for 4 in 1 bucket:
| Model | 010443 | 010460 | 010466 | 010472 |
| overall width(mm) | 1050 | 1584 | 1736 | 1880 |
| overall length(mm) | 600 | 768 | 768 | 768 |
| overall height(mm) | 720 | 879 | 879 | 879 |
| open distance(mm) | 554 | 718 | 718 | 718 |
| pressure(mpa) | 21 | 20 | 20 | 20 |
| clamp force(n) | 207 | 8230 | 8230 | 8230 |
| overall weight(kg) | 118 | 385 | 420 | 460 |
| capacity(cbm) | 0.17 | 0.4 | 0.44 | 0.48 |

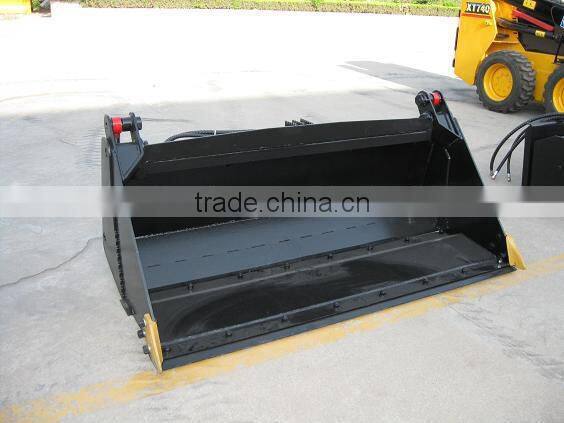

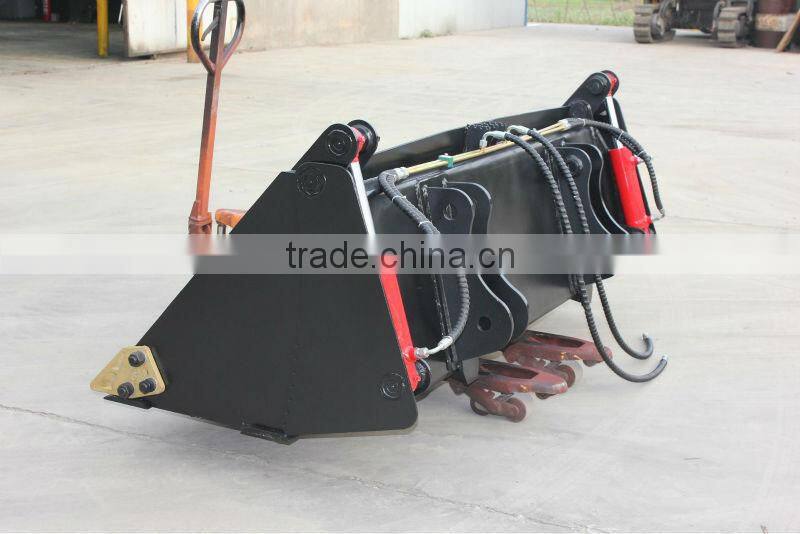

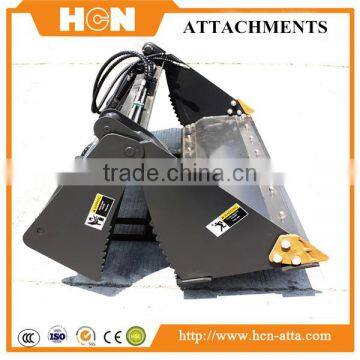

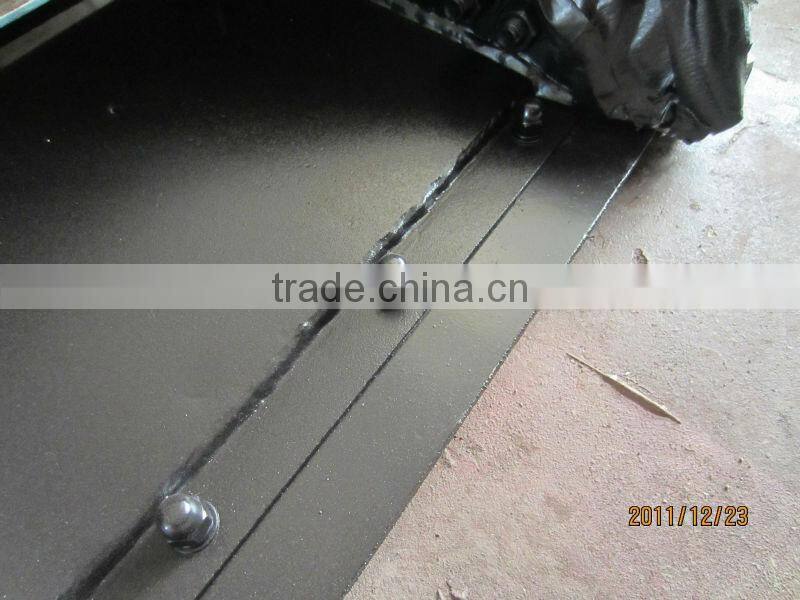

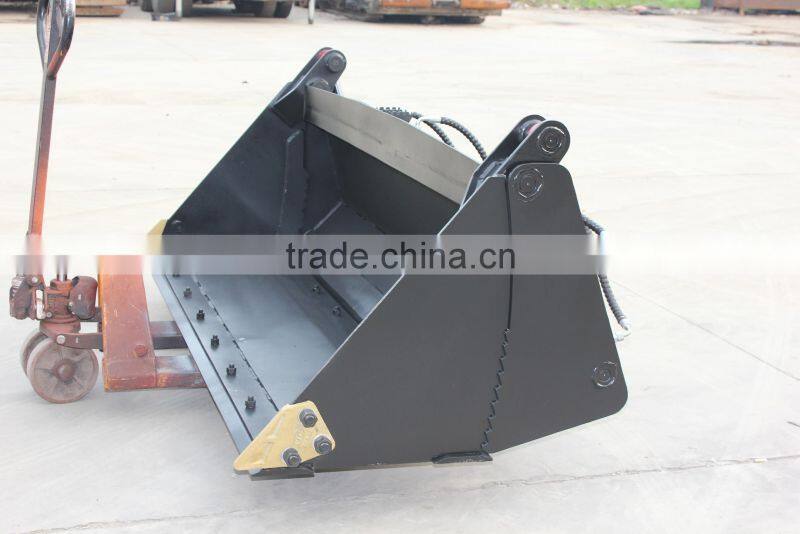

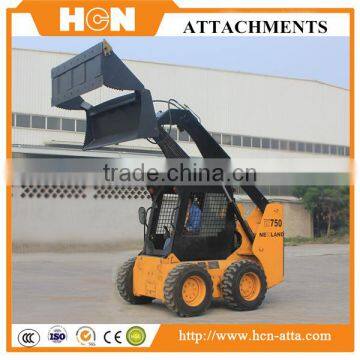

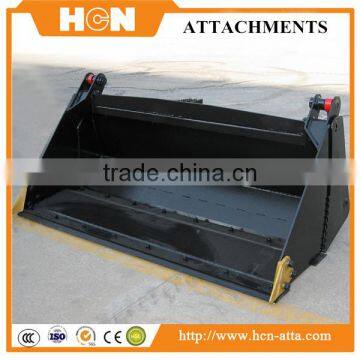

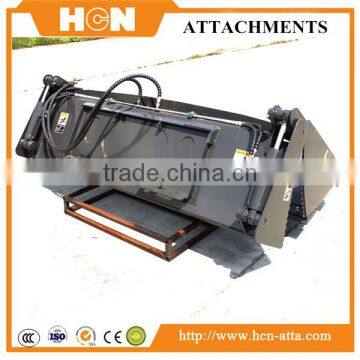

4.More Photos for 4 in 1 bucket attachment:
4.Trade Market:
Western Europe,Eastern Asia,Mid East,Oceania,Africa, Southeast Asia, Eastern
Europe,South America,North America.
5.Contact Information:
Contact Person: Rita Sun
Company Name: Xuzhou HCN Machinery Technology Co.,Ltd
Company ADD:#28 Taoshan Road Jinshanqiao Economic Development Area Xuzhou City, Jiangsu Province China
Skype: sr_rita
Mobile Phone: +86 13338963890 15852180378
Website: /
Alibaba Website: http://hcn-tech.en.china.cn/
with the standard iron frame package by LCL or FCL
Professional Package:
12 months or 1500 working hours,whenever comes first, and for key parts (Hydraulic
Motor,Hydraulic Cylinder, Hydraulic Pump ).
Xuzhou HCN Machinery Technology Co.,Ltd. subordinated to HCN Technology Group Co.,Ltd, which is a high-tech enterprise, advanced unit in the domestic construction machinery industry and one of road machinery technological innovation and exchange center corporate.
The company is located in Economic Development Zone, Jinshan Bridge, Xuzhou City, with beautiful scenery, convenient transportation and elegant environment, covering an area of 12847.2 square meters, more than 120 employees, including over 40 technical personnel, who re responsible for product development and design, design verification, product testing, performance testing and other work, played a huge role in R & D reliable performance, technologically advanced quality products.
Main products are: skid steer loaders,wheel loaders,forklifts and their attachments like augers,breakers,mulchers,tree spades,buckets,grapples,sweepers,etc.
A.Factory picture:
B.Production Equipment:
C.Customer Visit:
