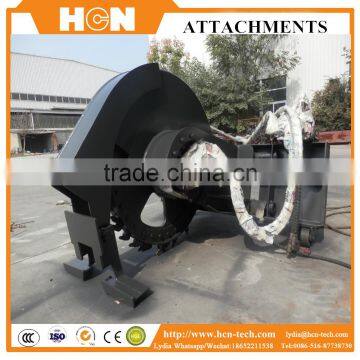

loader attachment Rock Saw
Product Description & Applications:
Rock saw can be used to repair the roads, trench the ditches for installing water, gas, electricity, and fiber optic cables, the pipeline interleaving layout, cutting asphalt, concrete and reinforced icing on the ground, and is an ideal tool for highway maintenance and municipal construction.
1. Use standard electro-hydraulic control system, depth control.
2. Use high power large torque output transmission system, make the product with better economic performance.
3. Use the protective device, to protect key elements.
4. The cutting depth can be adjusted.
5. The cutting head and the knife are used the famous imported brand elements, with better strengthness and durability.

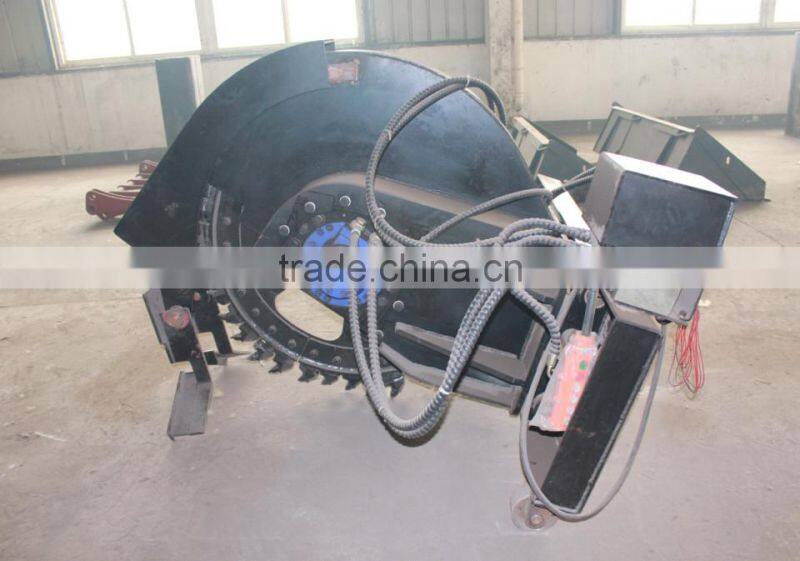

loader attachment Rock Saw

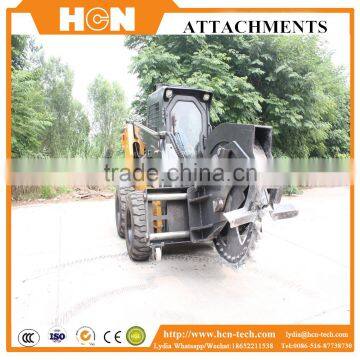

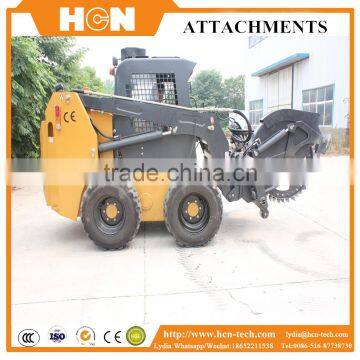

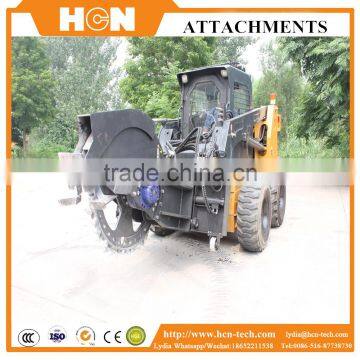

More Pictures:

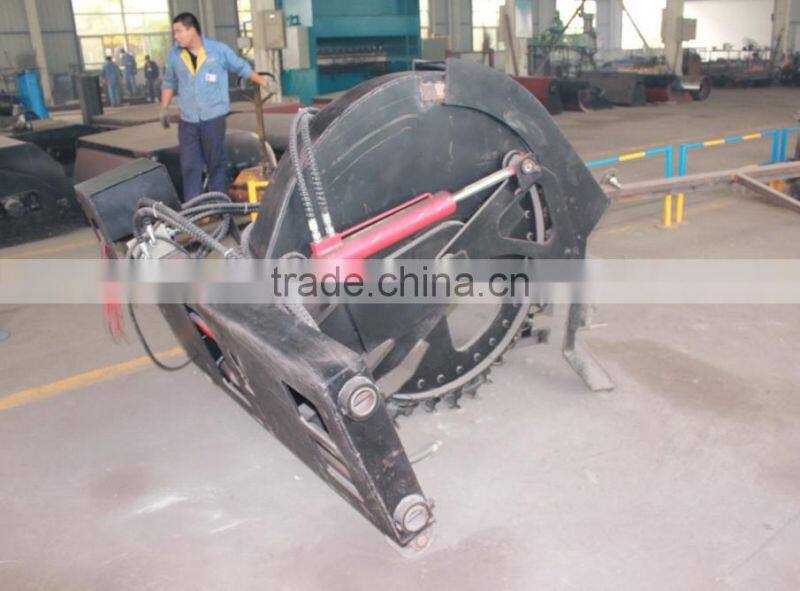

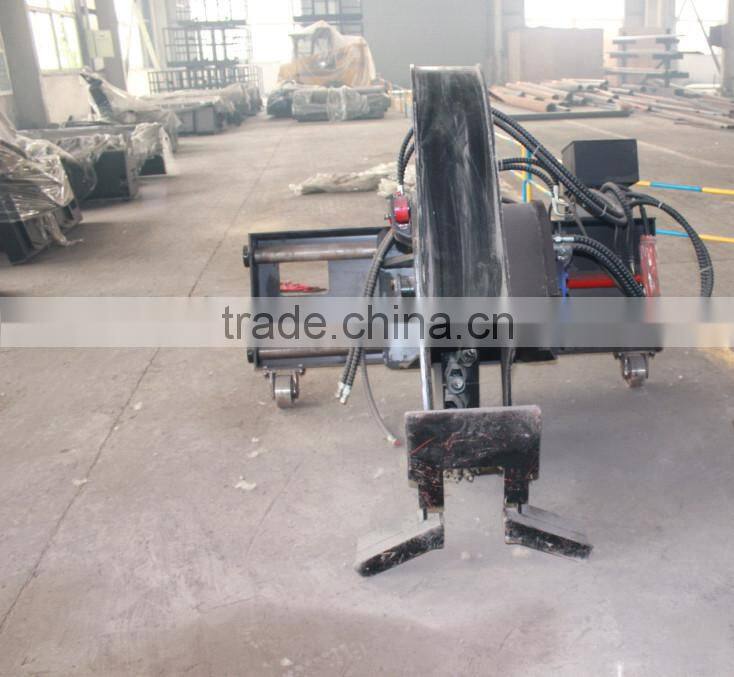

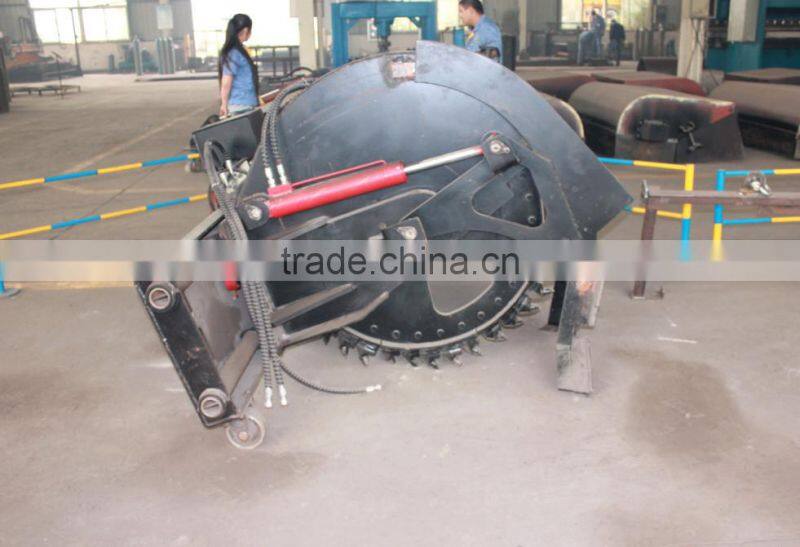

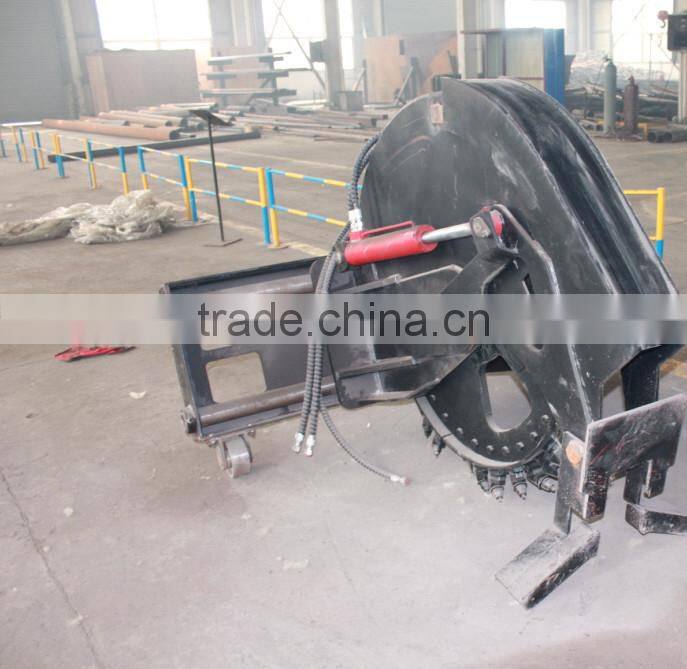

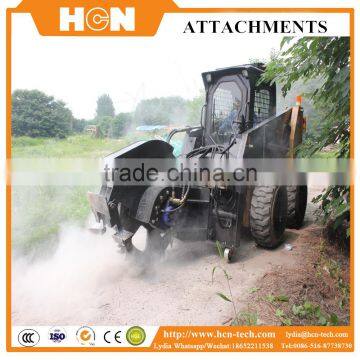

loader attachment Rock Saw
Detailed Technical Spcifications:
| rock saw model | 030518 | 030524 |
| overall dimensions(mm) | 1930*1700*2006 | 2184*1700*2057 |
| digging width(mm) | 63-102 | 63-102 |
| Max.cutting depth(mm) | 457 | 609 |
| wheel diameter(mm) | 1219 | 1524 |
| numbers of picks | 42 | 56 |
| flow range(l/min) | 120-140 | 130-160 |
| pressure(mpa) | 14-22 | 14-22 |
| operating weight(kg) | 900 kg when the wheel width 63mm | 1050kg when the wheel width 63mm |
| 960kg when ghe wheel width102mm | 1100kg when the wheel width 63mm |
4.Our Main Products
Mini Skid Steer Loader attachment:
Wheel Loader attachment:
5.Trade Market:
Western Europe,Eastern Asia,Mid East,Oceania,Africa, Southeast Asia, Eastern
Europe,South America,North America.
6.Contact Information:
Contact Person: Lydia
Skype: zhaochunling0714
Mobile Phone: 0086-13305210381/18652211538
Wechat:13305210381/18652211538
Email: lydia at ; lydiahcn at
Website: /
Alibaba Website: http://hcn-tech.en.china.cn/
the iron frame package by LCL or FCL
Professional Package:
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fit machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Xuzhou HCN Machinery Technology Co.,Ltd. subordinated to HCN Technology Group Co.,Ltd, which is a high-tech enterprise, advanced unit in the domestic construction machinery industry and one of road machinery technological innovation and exchange center corporate.
The company is located in Economic Development Zone, Jinshan Bridge, Xuzhou City, with beautiful scenery, convenient transportation and elegant environment, covering an area of 12847.2 square meters, more than 120 employees, including over 40 technical personnel, who re responsible for product development and design, design verification, product testing, performance testing and other work, played a huge role in R & D reliable performance, technologically advanced quality products.
Main products are: skid steer loaders,wheel loaders,forklifts and their attachments like augers,breakers,mulchers,tree spades,buckets,grapples,sweepers,etc.
A.Factory picture:
B.Production Equipment:
C.Customer Visit:
