Specifications
1. Fabricated boring head2. With GOST
3. With ISO9001
1. Product Info:

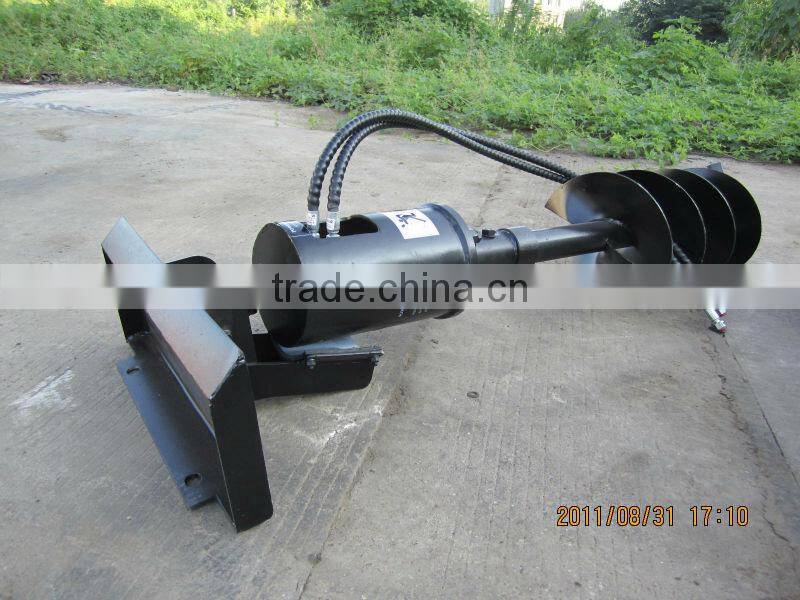

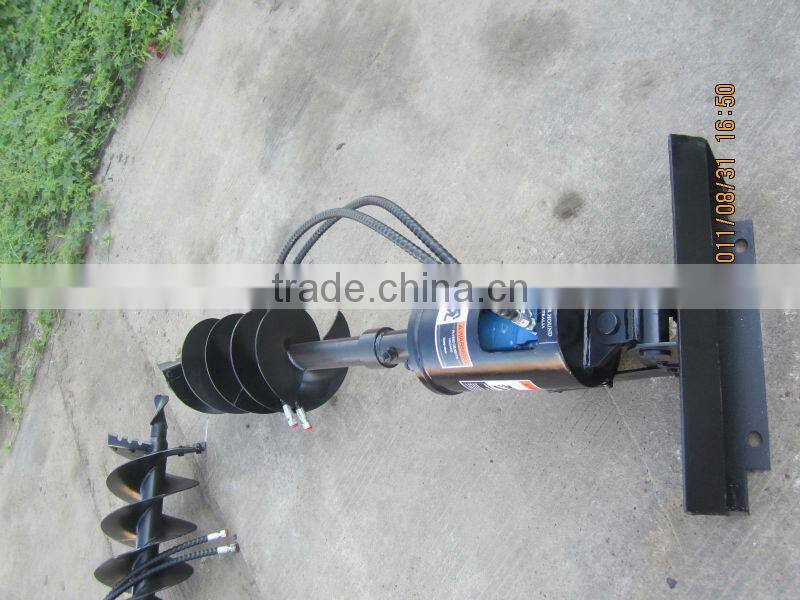

The HCN auger drive units are durable enough to withstand any construction or utility use in even the toughest ground conditions. These planetary drive units produce high torque at low speeds and offer reverse rotation for cleaning of the hole.
For skid steer loaders and mini excavators and small wheel loader
24 to 54 gpm available
Several types of augers up to 48" in diameter available

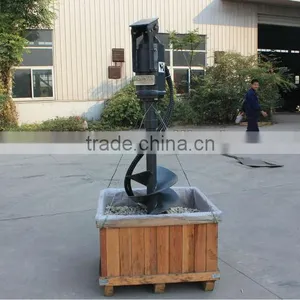

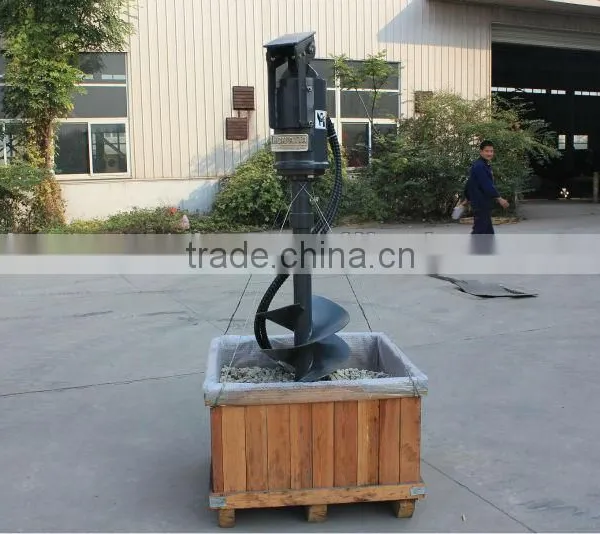

2. More Photos:
3. Detail Specifications:
| Auger Drive Units | Auger Bit | ||
| Model | 0510S24 | Model | SD12 |
| Max. Auger Diameter (mm) | 610 | Length(mm) | 1140 |
| Motor Flow Requires (L/min) | 60-80 | Width (mm) | 300 |
| Max. Cont Operating (Mpa) | 20 | Height (mm) | 300 |
| Output shaft Rotundlty (mm) | φ51. φ65 | Weight (kg) | 40 |
| Output shaft Hexaqon(Inscribed circle mm) | φ51 | Digging depth(mm) | 1100 |
| Max. Output Torque (N.m) | 2000 | Flight type | Double |
4. Contact Information:
Contact Person: Rita Sun
Company Name: Xuzhou HCN Machinery Technology Co.,Ltd
Company ADD:#28 Taoshan Road Jinshanqiao Economic Development Area Xuzhou City, Jiangsu Province China
Skype: sr_rita
Mobile Phone: +86 13338963890 15852180378
Website: /
Alibaba Website: http://hcn-tech.en.china.cn/
Welcome to contact us, we’ll do our best for you.
