Help CenterMini Series 4 in 1 Bucket Skid Steer Loader Attachment
Related Products
-
Mini Dozer Blade 030945 Series Skid Steer Loader Attachment for SaleUS$ 850 - 1,000MOQ: 1 Set -
Mini Skid Loader Attachments 4 in 1 BucketUS$ 900 - 3,000MOQ: 1 Set
-
HCN Brand Small Trenchers Mini Skid Steeer Loader Attachment for SaleUS$ 3,000 - 7,000MOQ: 1 Set
-
Mini Street Sweeper for Skid Steer LoaderUS$ 400 - 20,000MOQ: 1 Set
-
HCN Brand Hot Sale Mini Trencher Skid Steeer Loader AttachmentUS$ 3,000 - 7,000MOQ: 1 Set
Specifications
mini 4 in 1 bucket can grab the teeth profiled on both front/rear overlap for greater grip of logs or other debris.Product Descriptions for the mini 4 in 1 bucket:
- Grabbing teeth profiled on both front/rear overlap for greater grip of logs or other debris.
- Side curved sections create greater opening bucket width of 860mm.
- 1 Piece heavy duty 6mm grill/hungry board with unique high visibility design, for clear vision of both front and back bucket edge.
- Standard Heavy Duty 20mm Floors
- Optional reversible bolt on cutting edges for all 3 edges of the bucket.
- Optional chisel or tiger teeth with pin on design.
- Full Range from 880mm to 2130mm
- 12mm and 16mm floors available on request.
Application Field:
the mini 4 in 1 bucket is used to grading, scraping, grappling, dozing dirt or material spreading most construction work.
Technical Specifications for the mini 4 in 1 bucket:
The detailed specs of the mini 4 in 1 bucket are listed as follows:
| Model | 010443 | 010460 | 010466 | 010472 |
| overall width(mm) | 1050 | 1584 | 1736 | 1880 |
| overall length(mm) | 600 | 768 | 768 | 768 |
| overall height(mm) | 720 | 879 | 879 | 879 |
| open distance(mm) | 554 | 718 | 718 | 718 |
| pressure(mpa) | 21 | 20 | 20 | 20 |
| clamp force(n) | 207 | 8230 | 8230 | 8230 |
| overall weight(kg) | 118 | 385 | 420 | 460 |
| capacity(cbm) | 0.17 | 0.4 | 0.44 | 0.48 |

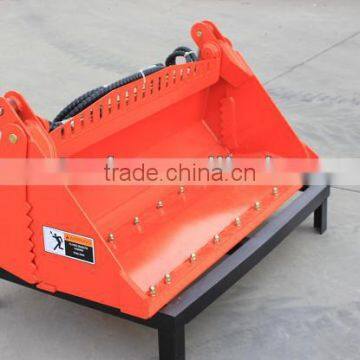

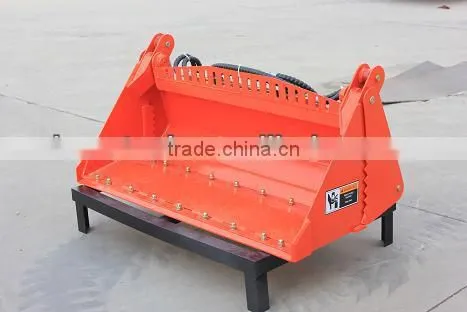

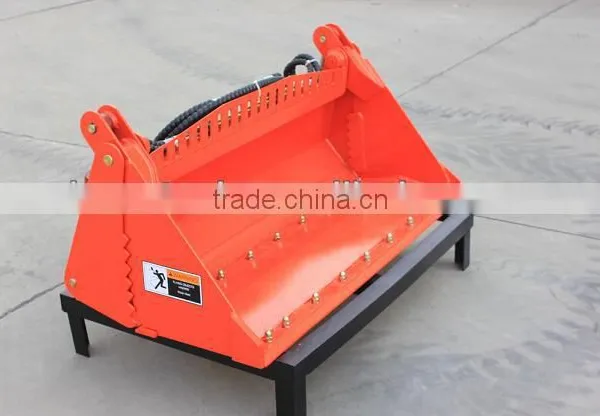

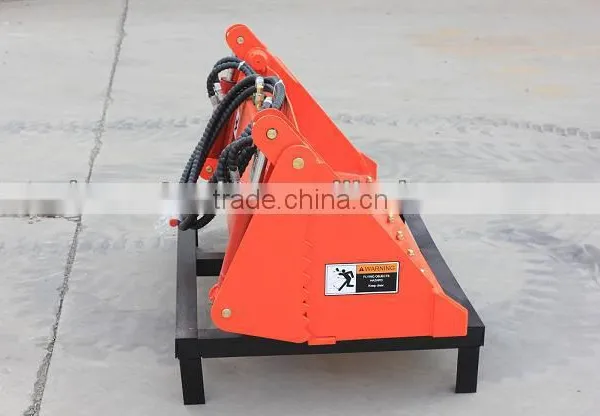

More Photos for the mini 4 in 1 bucket:
Package Form:
the standard steel frame package
After Service:
1 year for the main parts like motors,cylinders.
Company Introduction:
|
Xuzhou HCN Machinery Technology Co.,Ltd. subordinated to HCN Technology Group Co.,Ltd, which is a high-tech enterprise, advanced unit in the domestic construction machinery industry and one of road machinery technological innovation and exchange center corporate. Main products are: skid steer loaders,wheel loaders,forklifts and their attachments.
|
