Specifications
1.4 in 1 Bucket for Dingo mini loader,bucket 4 in 1 mini skid loader,skid steer loader mini 4 in 1 bucket2.for loaders,excavat
Product Descriptions:
- mini 4 in 1 bucket is used to grab teeth profiled on both front/rear overlap for greater grip of logs or other debris.
- Side curved sections create greater opening bucket width of 860mm.
- 1 Piece heavy duty 6mm grill/hungry board with unique high visibility design, for clear vision of both front and back bucket edge.
- Standard Heavy Duty 20mm Floors
- Optional reversible bolt on cutting edges for all 3 edges of the bucket.
- Optional chisel or tiger teeth with pin on design.
- Full Range from 880mm to 2130mm
- 12mm and 16mm floors available on request.
- 4 in 1 Bucket for Dingo mini loader,bucket 4 in 1 mini skid loader,skid steer loader mini 4 in 1 bucket
Application Field:
the mini 4 in 1 bucket is used to grading, scraping, grappling, dozing dirt or material spreading most construction work.
Technical Specifications:
The detailed specs of the mini 4 in 1 bucket are listed as follows:
| Model of 4 in 1 bucket | 010443 | 010460 | 010466 | 010472 |
| overall width(mm) | 1050 | 1584 | 1736 | 1880 |
| overall length(mm) | 600 | 768 | 768 | 768 |
| overall height(mm) | 720 | 879 | 879 | 879 |
| open distance(mm) | 554 | 718 | 718 | 718 |
| pressure(mpa) | 21 | 20 | 20 | 20 |
| clamp force(n) | 207 | 8230 | 8230 | 8230 |
| overall weight(kg) | 118 | 385 | 420 | 460 |
| capacity(cbm) | 0.17 | 0.4 | 0.44 | 0.48 |

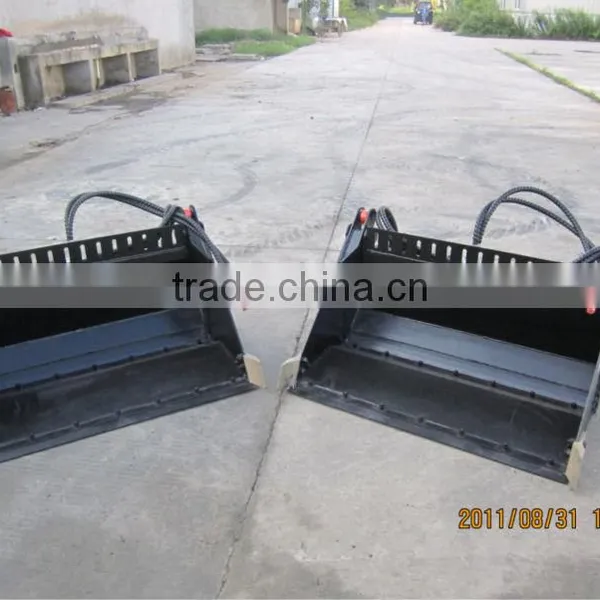

More Photos:
the standard steel frame package by FCL or LCL
1 year for the main parts like motors,cylinders.
Xuzhou HCN Machinery Technology Co.,Ltd. subordinated to HCN Technology Group Co.,Ltd, which is a high-tech enterprise, advanced unit in the domestic construction machinery industry and one of road machinery technological innovation and exchange center corporate.
The company is located in Economic Development Zone, Jinshan Bridge, Xuzhou City, with beautiful scenery, convenient transportation and elegant environment, covering an area of 12847.2 square meters, more than 120 employees, including over 40 technical personnel, who re responsible for product development and design, design verification, product testing, performance testing and other work, played a huge role in R & D reliable performance, technologically advanced quality products.
Main products are: skid steer loaders,wheel loaders,forklifts and their attachments.
