Specifications
1. Rear oscillating axle for good traction and off-road ability.2. Self-locking differential on both axles.
1. Product Info:
Maximum productivity with hydrostatic drive technology, delivering smooth, uninterrupted power.
Precise, powerful, and fast material pick-up function.
Available with swing or all-wheel steering.
Comfortable cab environment to enhance productivity.
Parallel kinematics for easy and safe operation.
Rear oscillating axle for good traction and off-road ability.
Self-locking differential on both axles.
Boom floating.
Four post ROPS.
Standard quick coupling plate.
Pressure test connection on front chassis.
Rotating warning light on top.
Sound alarm for maintenance and warnings

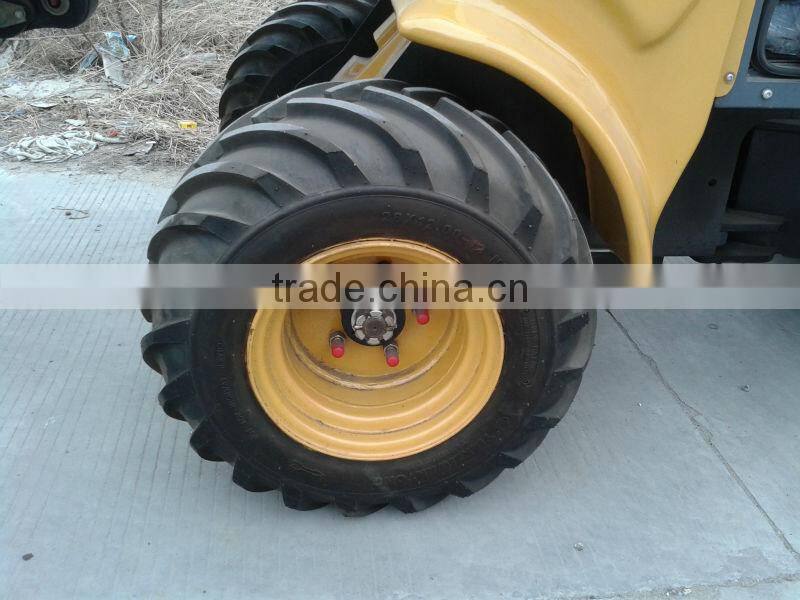

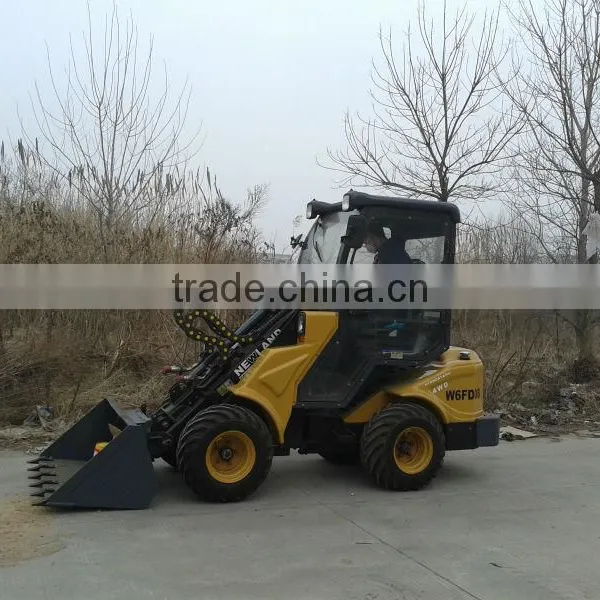

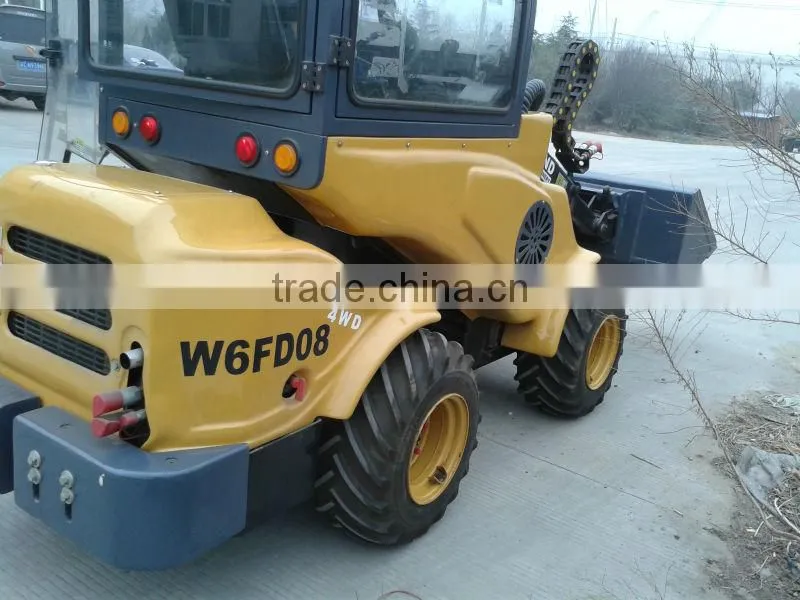

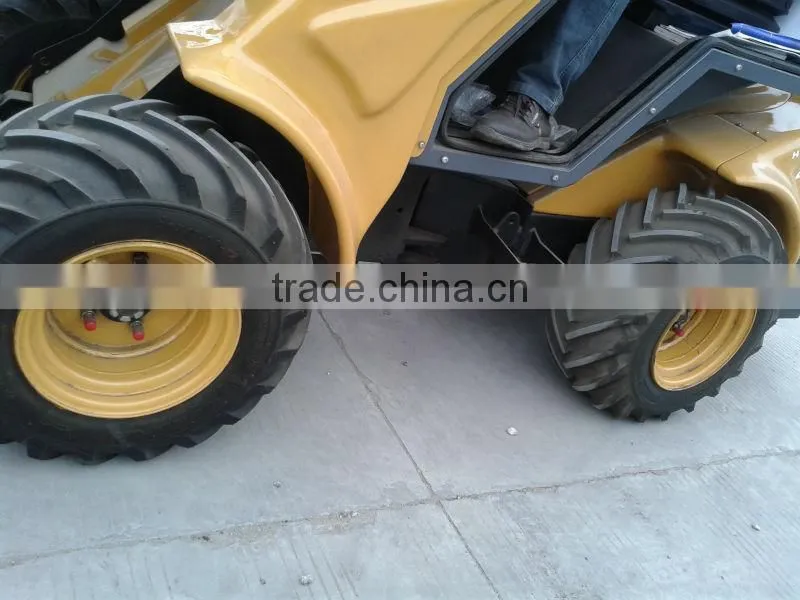

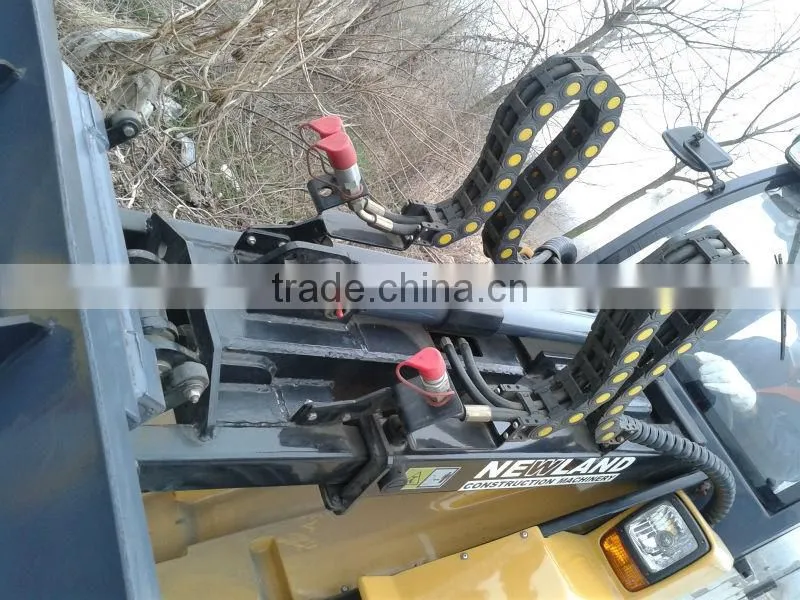

2. More Photos:
3. Detail Specifications:
| Model |
W6FD08 |
| Engine type | Pekins/Kubota |
| Rated power (kw/rpm) | 24.5 / 2800 |
Rated operating capacity(kg) |
700 |
| Hydraulic pump flow(L/min) | 60 |
Tipping load(kg) |
1400 |
Bucket capacity(m3) |
0.3 |
Operationg weight(kg) |
1600 |
Max. travel speed(km/h) |
12 |
Fuel tank capacity(L) |
23 |
Overall dimensions(mm) |
2600X1240X2300 |
Turning angle |
45 |
Standard tire |
26X12-12 |
| Tire pressure (bar) |
2.8 |
Oil tank capacity (L) |
40 |
| Pressure (bar) | 190 |
| Oil model(mineral oil) | L-HL46 |
| Number of cylinder | 4 |
Cooling systerm |
Waer cooling |
Battery capacity ( Ah) |
60 |
Voltage (V) |
12
|
