Product Descriptions for the mini wheel loader:
1.Compact design
2. mini wheel loader with the Static hydraulic four-wheel drive, stronger driving power, has perfect traveling performance.
3.Euro 3 standard engine, lower energy consumption, stronger power.
4Telescopic, floating functional working allows more working areas. Single and double arms are optional.
5.Equipped with automatic leveling system.
6.The rollover, drop outputting design, ensure work safety.
7.Hydraulic power outputting interface, makes it is convenience for connecting external equipment.
8.Standard quick hitch frame can realize adapting more than 40 types different attachments,
9.Three sides faces of cab could be opened makes repairs and maintain easier an convenience.
Application Field:
mini wheel loader with the narrow machine body,can work at the narrow space like the warehouse,parkings,port,boat deck.
Technical Specifications for the mini wheel loader:
The detailed specs are listed as follows:
| odel | W6FD06 | W6FD08 |
| engine brand | Perkins | Perkins or Kubota |
| rated load | 500kg | 850kg |
| Max.load | 800kg | 1000kg |
| bucket capacity | 300l | 450l |
| weight | 1100kg | 1600kg |
| standard tire | 23*8.5-12 | 26*12-12 |
| pressure | 190bar | 190baR |
| numbers of cylinder | 4 | 4 |
| cooling system | water cooling | water cooling |
| rated power | 12.5kw | 24.5kw |
| overalll dimensions | 2195*980*2100mm | 2600*1240*2320mm |

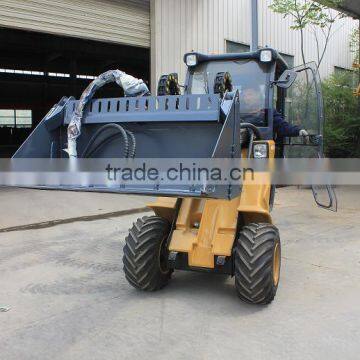

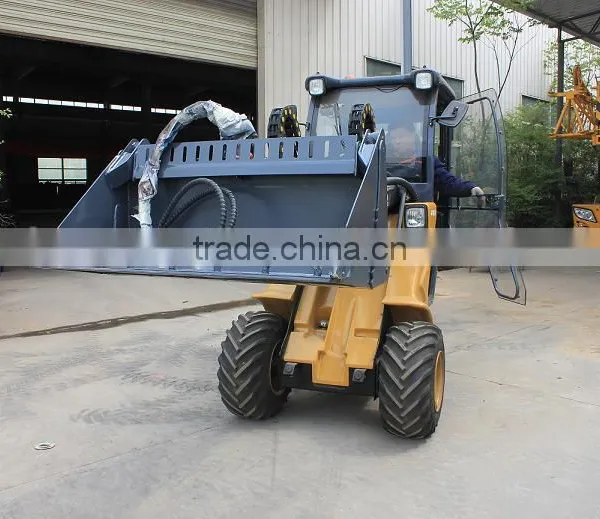

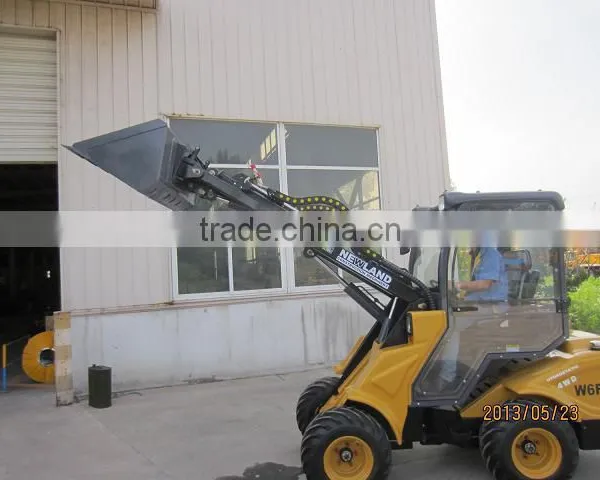

More Photos for the mini wheel loader:
Package Form:
without pacakge
After Service:
1 year for the main parts like motors,cylinders.
Company Introduction:
Xuzhou HCN Machinery Technology Co.,Ltd. subordinated to HCN Technology Group Co.,Ltd, which is a high-tech enterprise, advanced unit in the domestic construction machinery industry and one of road machinery technological innovation and exchange center corporate.
The company is located in Economic Development Zone, Jinshan Bridge, Xuzhou City, with beautiful scenery, convenient transportation and elegant environment, covering an area of 12847.2 square meters, more than 120 employees, including over 40 technical personnel, who re responsible for product development and design, design verification, product testing, performance testing and other work, played a huge role in R & D reliable performance, technologically advanced quality products.
Main products are: skid steer loaders,wheel loaders,forklifts and their attachments like augers,breakers,mulchers,tree spades,buckets,grapples,etc.
