Manufacturer Supply 2 Inch 3 Inch 4 Inch Diesel Irrigation Water Pumps

Manufacturer Supply 2 Inch 3 Inch 4 Inch Diesel Irrigation Water Pumps photo-1
US$ 1 - 275 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TOPTEK
Model Number:
TDP50
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name TOPTEK
Model Number TDP50
Theory Centrifugal Pump
Structure Piston Pump
Usage Other, for agricultre irrigation,construction of water pumping, fire,etc, diesel irrigation water pumps
Power Other, 4.2HP
Standard or Nonstandard Standard
Fuel Diesel
Pressure Low Pressure
Application Other, agriculture irrigation

manufacturer supply 2 inch 3 inch 4 inch diesel irrigation water pumps

1.Direct-injection diesel engine for pump, long life, low fuel consumption, strong and powerful;

2.High pressure casting aluminum alloy for pump body;

3.Vibration-proof design prolong the diesel pump working life;

4. Diesel pump are applicable to agriculture, home irrigation, construction of water pumping, fire, etc.

Specification for diesel irrigation water pumps:

ModelTDP50TDP80TDP100
PumpWater Pump TypeSelf-priming pump
Outlet Size (inch)/mm50(2" )80(3" )100(4" )
Inlet Size (inch)/mm50(2" )80(3" )100(4" )
Rated Total head (m)151316
Suction head(m)888
EngineEngine ModelTD170FTD178FTD186FA
Max Power Output4.2PS(3.1kw)/3600rpm6.0PS(4.4kw)/3600rpm10PS(7.3kw)/3600rpm
Recommend Power Using3.8PS(2.8kw)/3600rpm5.4PS(4.0kw)/3600rpm9.3PS(6.8kw)/3600rpm
Max.Capcity(L/min)70010001600
Start SystemRecoil
Fuel0#(summer),-10#or-20#(winter)diesel
Ignition SyetemNon-contact transistorized ignition (T.C.I)
Fuel Tank Capacity(L)2.5L/(12.5L)3.5L/(12.5L)5.5L/(12.5L)
Fuel Consumption(g/kwh)217g/PS-hr(295g/kwh)210g/PS-hr(285g/kwh)210g/PS-hr(285g/kwh)
Lube Capacity(L)0.8L/0.21gallon1.1L/0.29gallon1.65L/0.44gallon
conveyancePacking Dimension(mm)500x420x530mm570x460x560mm670x490x620mm
Net Weight(kg)39/41 kg49/51 kg63/65 kg

factory profile:

manufacturer supply 2 inch 3 inch 4 inch diesel irrigation water pumps

products range:

manufacturer supply 2 inch 3 inch 4 inch diesel irrigation water pumps

approved certification:

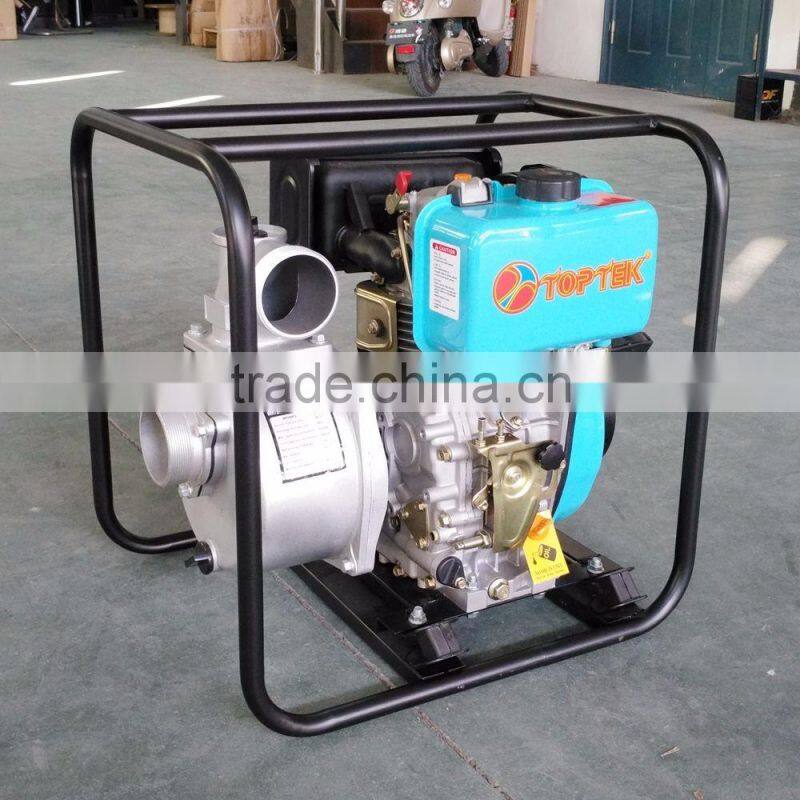

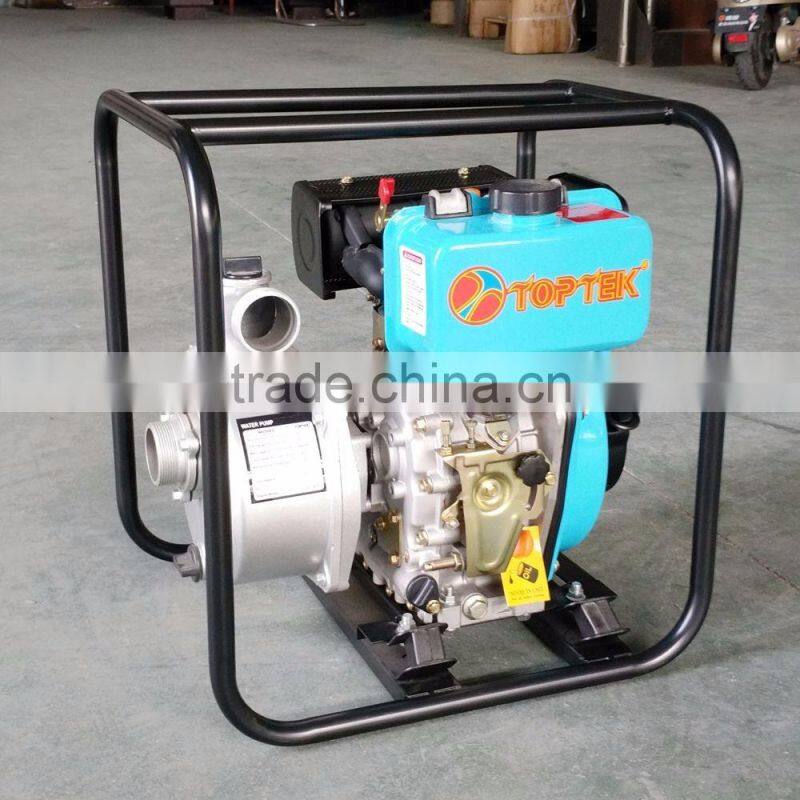

more pictures for diesel irrigation water pumps:

2inch:

manufacturer supply 2 inch 3 inch 4 inch diesel irrigation water pumps

3 inch:

manufacturer supply 2 inch 3 inch 4 inch diesel irrigation water pumps

4 inch:

manufacturer supply 2 inch 3 inch 4 inch diesel irrigation water pumps

Sales promise for diesel irrigation water pumps:

TOPTEK POWER provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment.

Payment Terms:

T/T or L/C, 30%T/T as deposit, the balance should be paid before shipment or against electronic B/L.

FAQ:

1)What’s the time deliver?

Re: 10~15working days after receiving payment

(We usually complete the production within 15days after receiving your payment. But it also depends on your quantity or models, and sea shipping for all goods.)

2)What's the life span of your product running 8 hrs a day 7 days a week?

Re:

within 500hours, it will be ok, then you need change the outside parts such as air filter, muffler, piston and piston ring after 500hours.

(PS: we recommend you buy the good quality air filter, muffler. of course, the price will be higher.)

3)What's the service or insurance that your company offer to the product?

Re:

a. Guarantee for one year or 500hours (accord to whichever reach first) from ex-factory date.

b. All the failed units can be removed under the permission of manufacturer.

c. During the guarantee period, We will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets/engines.

4)What differentiate your product from the competition?

Re:

a)  We are professinal engine manufacture, have our own factories and facilities, it's easier to control our cost and quality.

b)  our factory is located in yangzhou, jiangsu province, it is a manufacture base of generators, with affluent raw material, low cost , and it is close to SHANGHAI port, with better transportation.

c)  good quality alternator are famous in our area ( gaoyou alternator)

d)  we have many years of export experience, Currently we export to Philippines, Singapore, Jordan, Indonesia, Sri Lanka, etc, rich experience in OEM service.

e)  many years of manufacture experience, mature installation technology, compact structure of products, perfect performance.

f)  large quantity orders(8x40'HQ) in every months that guarantee the competitive prices on materials, and that means the competitive prices on products.

g) we are ISO9001:2008 certificated factory, all products are CE approved.

5)What's the service for maintenance I need to do? And when?

Re:

in the first 50hours, you need change the engine oil and wash the oil filter, engine oil is a major factor affecting engine performance and service life. then you need also check the air cleaner element to be sure it is clean and in good condition. if the element is dirty, clean it, replace the element if it is damaged. also you need wash the fuel injection pump and fasten the nut. then every 100hours do the same until up to 500hous.

if any more questions pls contact person: Arthur Zhang (phone:+86-18852593763)

wechat ID: 18852593763   we will wholeheartedly give you the best service.
