220V Air Cooled Single Phase 8kva Silent Diesel Generator

220V Air Cooled Single Phase 8kva Silent Diesel Generator photo-1
US$ 1 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TOPTEK
Model Number:
TDG10000SE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name TOPTEK
Model Number TDG10000SE
Output Type AC Single Phase
Speed 3000/3600rpm
Frequency 50/60Hz
Rated Power 8kva/9kva
Rated Voltage 220V
Rated Current 36A

220V air cooled single phase 8kva silent diesel generator

8kva silent diesel generator specification:

ModelTDG10000SE
Frequency(HZ)5060
Rated Speed(rpm/min)30003600
Rated Power(KVA)89
Max.Power(KVA)910
Engine Model 2V86FE/17HP
Engine Typetwo cylinder, V-type, 4-stroke
Starting WayElectric start with barrtery
Cooling Wayair-cooled
Rated Power Fuel Consumption g/Kw.h<365/3000min<375/3600min
Inlet Waynormally aspirated
Compressed Ratio 20:1
Bore*Stroke(mm)2-86*72
Displacement(L)0.840
Firebox TypeSwirl
Fuel Capacity(L)35
Fuel Type0#(Summer),-10#(Winter)Diesel Oil
Noise(dB)(@7m)7575
Voltage(V)220,230,240,220/110,220/380,230/400,240/415
PhaseSingle Phase
Power Factor1
Open/SilentSilent
Overall Dimension(mm)1220*760*900
Weight(Kg)255/285

 Factory profile:

220V air cooled single phase 8kva silent diesel generator

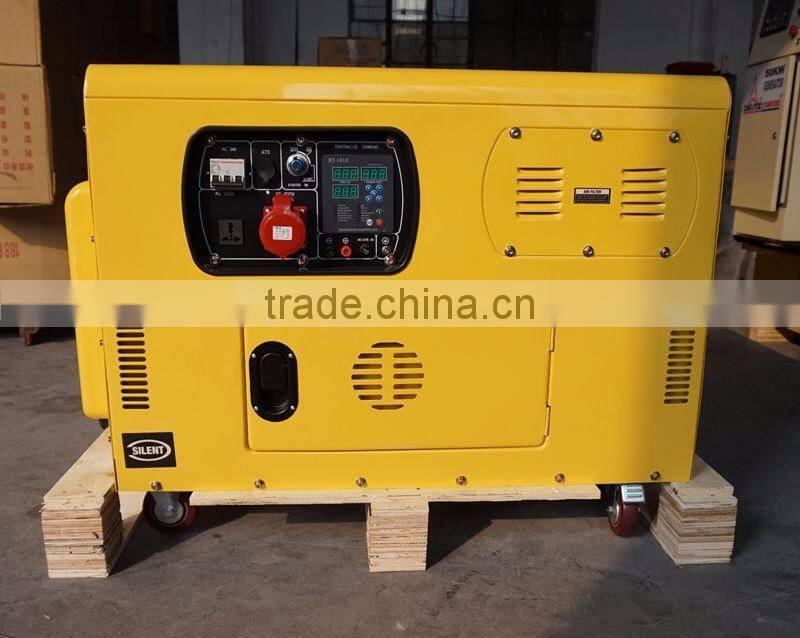

8kva silent diesel generator photos:

220V air cooled single phase 8kva silent diesel generator



220V air cooled single phase 8kva silent diesel generator



220V air cooled single phase 8kva silent diesel generator



220V air cooled single phase 8kva silent diesel generator



220V air cooled single phase 8kva silent diesel generator

8kva silent diesel generator control panel:

220V air cooled single phase 8kva silent diesel generator

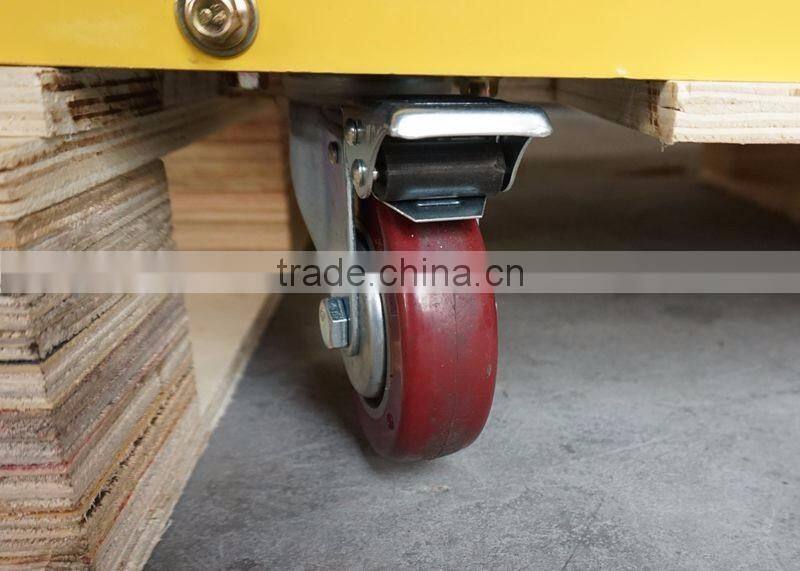

Omni-directional wheel:

220V air cooled single phase 8kva silent diesel generator

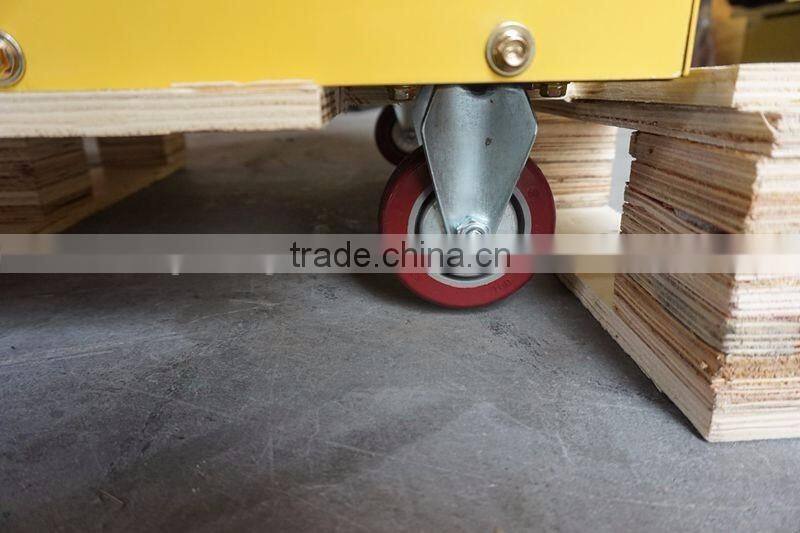

the common wheels:

220V air cooled single phase 8kva silent diesel generator

the accessories included:

220V air cooled single phase 8kva silent diesel generator

Approved certification:

220V air cooled single phase 8kva silent diesel generator

Sales promises:

TOPTEK POWER provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment.

our products range:

220V air cooled single phase 8kva silent diesel generator

Payment Terms:

T/T or L/C, 30%T/T as deposit, the balance should be paid before shipment

FAQ:

1)What’s the time deliver?

Re:

15~20working days after receiving payment

2)What's the life span of your product running 8 hrs a day 7 days a week?

Re:

within 500hours, it will be ok, then you need change the outside parts such as air filter, muffler, piston and piston ring after 500hours.

(PS: we recommend you buy the good quality air filter, muffler. of course, the price will be higher.)

3)What's the service or insurance that your company offer to the product?

Re:

a. Guarantee for one year or 500hours (accord to whichever reach first) from ex-factory date.

b. All the failed units can be removed under the permission of manufacturer.

c. During the guarantee period, We will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets/engines.

4)What differentiate your product from the competition?

Re:

a. We are professinal engine manufacture, have our own factories and facilities, it's easier to control our cost and quality.

b. our factory is located in yangzhou, jiangsu, it is a manufacture base of generators, affluent raw material, low cost and so on.

c. good quality alternator are famous in our area ( gaoyou alternator)

d, we have many years export experience, Currently we export to Philippines, Singapore, Jordan, Indonesia, Sri Lanka, etc, rich experience in OEM service.

e, many years manufacture experience, mature installation technology, compact structure of products, perfect performance.

5)What's the service for maintenance I need to do? And when?

Re:

in the first 50hours, you need change the engine oil and wash the oil filter, engine oil is a major factor affecting engine performance and service life. then you need also check the air cleaner element to be sure it is clean and in good condition. if the element is dirty, clean it, replace the element if it is damaged. also you need wash the fuel injection pump and fasten the nut. then every 100hours do the same until up to 500hous.

if any more questions pls contact person: Arthur Zhang
