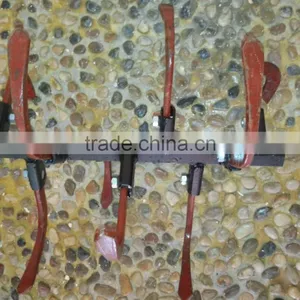

Help CenterDeep Cultivator Blades
Related Products
-
Self-priming PUMP UNIT 80CBZ13-4US$ 175 - 175MOQ: 20 Sets -
Changan Auto Cylinder Head F8B 11141-78403US$ 30 - 30MOQ: 10 Pieces
-
Hafei Changan Auto Cylinder Head F10AUS$ 30 - 30MOQ: 10 Pieces
-
Changan Auto Cylinder Head F8AUS$ 30 - 30MOQ: 10 Pieces
-
Liu Machine Auto Cylinder Head 465QRUS$ 30 - 30MOQ: 10 Pieces
| Model | 1WG3.5-85FC-Z |
| Tilling Width(mm) | 850 |
| Tilling Depth(mm) | ≥100 |
| Drive-way Transmission | Full Gear |
| Gearshift | Fast-Slow-N-R |
| Clutch Type | Friction, with emergency stop |
| Tire | 5.00-12 |
| Productivity(hm2/h) | ≥0.04 |
| N.G /W.G(KG) | 135/140 |
| Dimension(mm) | 1500x850x800 |
| Engine Model | 186F Diesel Engine |
| Engine Type | single-cylinder, vertical, four-stroke,Direct injection, air-cooled |
| Bore*Stroke(mm) | 86*70 |
| Displacement(ml) | 406 |
| Rated Power(kW/rpm) | 2.8/3600 |
| Max. Power(kW/rpm) | 3.5/3600 |
| Fuel Tank Capacity(L) | 5.5 |
| Fuel Consumption(g/kW.h) | ≤420g/kw.h |
| Fuel Type | 0# in summer,-10# or-20# in winter |
| Oil Capacity(L) | 1.65 |
| Lube type | SAE10W30 (above CC grade) |
| Start System | Electric start with 30AH MF Battery,recoil and hand-operated |
| Included Parts | with dry land blade(8x4 blades) |
|
Q1: What are products your company manufactured? Diesel/gasoline tiller Diesel/gasoline engine Diesel/gasoline generator Above products range from 3HP-10HP |
|
Q2: What is your MOQ? Generally we suggest 10sets, but we accept sample order if you want to test quality and performance first. |
|
Q3: What is the payment term? Prepayment after order confirmed, balance payment before shipment. You are welcome to pay by T/T, L/C, D/A,D/P, Western Union, etc. |
|
Q4: How about the delivery time? Within 10 workdays after receive the prepayment |
|
Q5: How about your warranty? 1year |
|
Q6: How about your after-sale service? 1-We have professional engineer team, they will be available for technical support. 2-After-service available for foreign market as customer required. |
Packing |
Cast-iron Bracket +Caron Box |
20” GP(Set) |
66 Units |
40” HQ(Set) |
144 Units |
MOQ |
20 Sets |
Delivery |
7workdays after order confirmed |
Shipment method |
by sea or by air |
