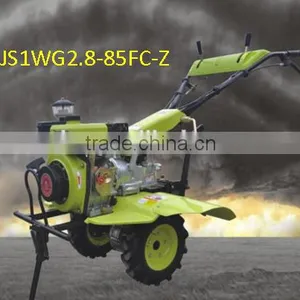

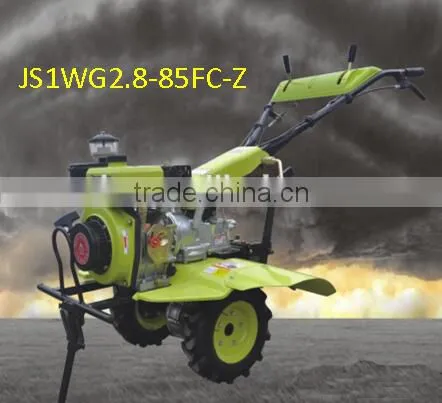

Garden Mini Tiller 1WG3.5-85FC-Z

Name: Garden Mini Tiller 1WG3.5-85FC-Z
Brand: Jianchi / customer brand
SKU: 141082250
Availability: InStock

US$ 350 - 400 MOQ: 10 Sets

Key Specifications

Condition:

New

Type:

Farm Cultivator

Power Type:

Diesel

Chongqing Jianchi Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Farm Cultivator

Power Type Diesel

Power(W) 3.5KW

Certification ISO9001-2008

Warranty 1 Year

Use Tilling

Place of Origin Chongqing, China

Brand Name Jianchi / customer brand

Model Number JS3.5-85-1

Weight 75kg

Dimension(L*W*H) 1580x850X800mm

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Model	1WG3.5-85FC-Z
Tilling Width(mm)	850
Tilling Depth(mm)	≥100
Drive-way Transmission	Full Gear
Gearshift	Fast-Slow-N-R
Clutch Type	Friction, with emergency stop
Tire	5.00-12
Productivity(hm2/h)	≥0.04
N.G /W.G(KG)	135/140
Dimension(mm)	1500x850x800
Engine Model	186F Diesel Engine
Engine Type	single-cylinder, vertical, four-stroke,Direct injection, air-cooled
Bore*Stroke(mm)	86*70
Displacement(ml)	406
Rated Power(kW/rpm)	2.8/3600
Max. Power(kW/rpm)	3.5/3600
Fuel Tank Capacity(L)	5.5
Fuel Consumption(g/kW.h)	≤420g/kw.h
Fuel Type	0# in summer,-10# or-20# in winter
Oil Capacity(L)	1.65
Lube type	SAE10W30 (above CC grade)
Start System	Electric start with 30AH MF Battery,recoil and hand-operated

Included Parts

with dry land blade(8x4 blades)

Packaging & Shipping

Packing	Cast-iron Bracket +Caron Box
20” GP(Set)	66 Units
40” HQ(Set)	144 Units
MOQ	20 Sets
Delivery	7workdays after order confirmed
Shipment method	by sea or by air
