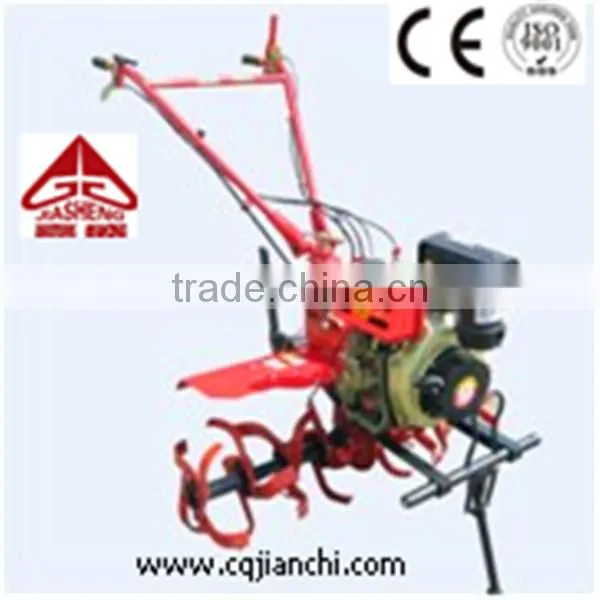

Jiasheng 10 hp Hand Power Tiller With Attachments

Name: Jiasheng 10 hp Hand Power Tiller With Attachments
Brand: JIASHENG
SKU: 141082194
Availability: InStock

US$ 300 - 2,000 MOQ: 30 Sets

Key Specifications

Condition:

New

Type:

Garden Cultivator

Power Type:

Diesel

Chongqing Jianchi Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Garden Cultivator

Power Type Diesel

Power(W) 6.3

Certification ISO9001/CE

Warranty one year

Use tilling/cultivating/plowing

Brand Name JIASHENG

Model Number 1WG6.3-135FC-Z

Weight 135KG

Dimension(L*W*H) 1700*1330*800mm

After-sales Service Provided Engineers available to service machinery overseas

10 hp hand power tiller with attachments

Specifications

Diesel 10 hp hand power tiller with attachments

a.engine available,8.6hp 186FA diesel power engine
b.easy start & operation
c.energy saving&environment-friendly;

d.customized design offered;

e.any color can be made.

Model		1WG6.3-135FC-Z
Tiller	Tilling Width(mm)	1350
	Tilling Depth(mm)	≥100
	Drive-way Transmission	Full Gear
	Gearshift	Fast-Slow-N-R
	Clutch Type	Friction,with emergency stop
	Tire	5.00-12
	Productivity(hm²/h)	≥0.04
	N.G /W.G(KG)	135/140
	Dimension(mm)	1700x1330x800
Engine	Model	DIWEI 186F Diesel Engine
	Engine Type	single-cylinder, vertical, four-stroke, Direct injection, air-cooled
	Bore*Stroke(mm)	86*70
	Displacement(ml)	406
	Rated Power(kW/rpm)	6.3/3600
	Max. Power(kW/rpm)	6.6/3600
	Fuel Tank Capacity(L)	5.5
	Fuel Consumption(g/kW.h)	≤420g/kw.h
	Fuel Type	0# in summer,-10# or-20# in winter
	Oil Capacity(L)	1.65
	Lube type	SAE10W30 (above CC grade)
	Start System	Electric start with 30AH MF Battery, recoil and hand-operated
Others	Included Parts	with dry land blade(8x4 blades)
	Packing	Cast-iron Bracket +Caron Box
	20” GP(Set)	66 Units
	40” HQ(Set)	144 Units
	MOQ	20 Sets
