Home > Products > Power tiller > 10 hp electric mini tiller motocultivador

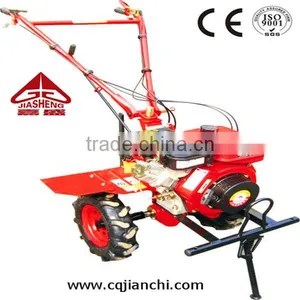

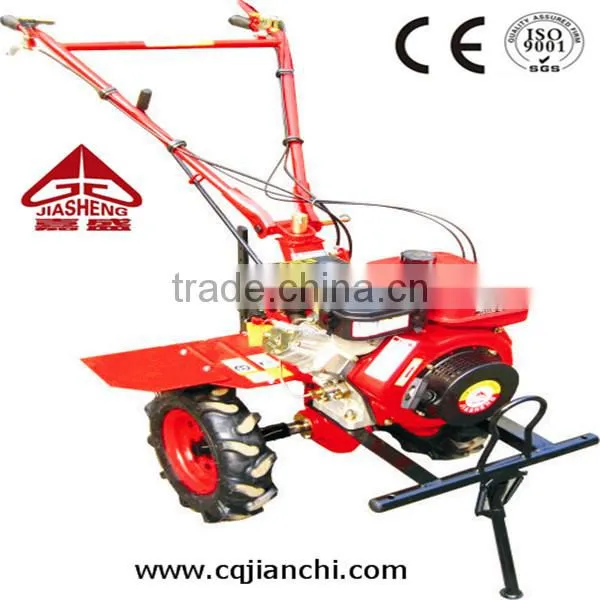

10 hp electric mini tiller motocultivador
- 30000 Set / Sets per Month
- Shanghai or Chongqing
- T/T
Product Details
Condition: | New | Type: | Garden Cultivator | Power Type: | Diesel |
Power(W): | 6.3 | Certification: | ISO9001/CE | Warranty: | one year |
Use: | tilling/cultivating/plowing | Brand Name: | JIASHENG | Model Number: | 1WG6.3-135FC-Z |
Weight: | 135KG | Dimension(L*W*H): | 1700*1330*800mm | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
10 hp electric mini tiller
Specifications
Diesel 10 hp electric mini tiller
a.engine available,8.6hp 186FA diesel power engine
b.easy start & operation
c.energy saving&environment-friendly;
d.customized design offered;
e.any color can be made.
Model | 1WG6.3-135FC-Z | |
Tiller | Tilling Width(mm) | 1350 |
Tilling Depth(mm) | ≥100 | |
Drive-way Transmission | Full Gear | |
Gearshift | Fast-Slow-N-R | |
Clutch Type | Friction,with emergency stop | |
Tire | 5.00-12 | |
Productivity(hm2/h) | ≥0.04 | |
N.G /W.G(KG) | 135/140 | |
Dimension(mm) | 1700x1330x800 | |
Engine | Model | DIWEI 186F Diesel Engine |
Engine Type | single-cylinder, vertical, four-stroke, Direct injection, air-cooled | |
Bore*Stroke(mm) | 86*70 | |
Displacement(ml) | 406 | |
Rated Power(kW/rpm) | 6.3/3600 | |
Max. Power(kW/rpm) | 6.6/3600 | |
Fuel Tank Capacity(L) | 5.5 | |
Fuel Consumption(g/kW.h) | ≤420g/kw.h | |
Fuel Type | 0# in summer,-10# or-20# in winter | |
Oil Capacity(L) | 1.65 | |
Lube type | SAE10W30 (above CC grade) | |
Start System | Electric start with 30AH MF Battery, recoil and hand-operated | |
Others | Included Parts | with dry land blade(8x4 blades) |
Packing | Cast-iron Bracket +Caron Box | |
20” GP(Set) | 66 Units | |
40” HQ(Set) | 144 Units | |
MOQ | 20 Sets |
