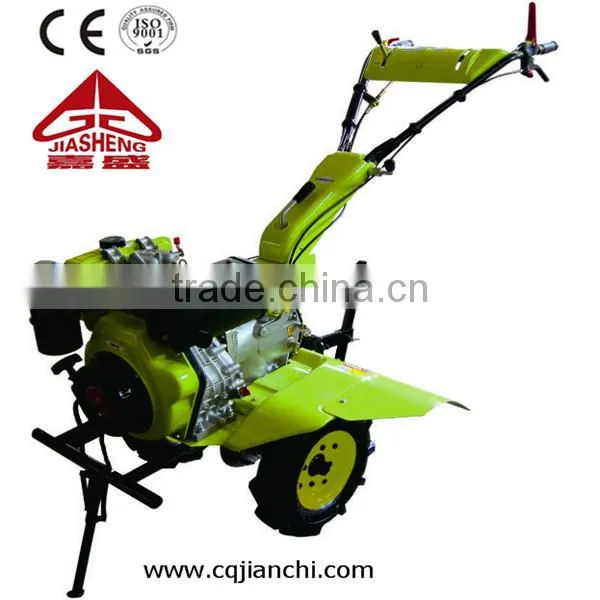

Rotary Tiller 1WG6.3-135FC-Z

Name: Rotary Tiller 1WG6.3-135FC-Z
Brand: JIASHENG
SKU: 141082116
Availability: InStock

Chongqing Jianchi Machinery Co., Ltd.

US$ 300 - 2,000 MOQ: 30 Sets

Key Specifications

Condition:

New

Type:

Garden Cultivator

Power Type:

Diesel

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Garden Cultivator

Power Type Diesel

Power(W) 135

Certification ISO9001/CE

Warranty one year

Use tilling/cultivating/plowing

Brand Name JIASHENG

Model Number 1WG6.3-135FC-Z

Weight 135KG

Dimension(L*W*H) 1700*1330*800mm

After-sales Service Provided Engineers available to service machinery overseas

Rotary Tiller

Specifications

Diesel rotary tiller
a.engine available,8.6hp 186FA diesel power engine
b.easy start & operation

c.energy saving&environment-friendly;

d.customized design offered;

e.any color can be made.

Model		1WG6.3-135FC-Z
Tiller	Tilling Width(mm)	1350
	Tilling Depth(mm)	≥100
	Drive-way Transmission	Full Gear
	Gearshift	Fast-Slow-N-R
	Clutch Type	Friction,with emergency stop
	Tire	5.00-12
	Productivity(hm²/h)	≥0.04
	N.G /W.G(KG)	135/140
	Dimension(mm)	1700x1330x800
Engine	Model	DIWEI 186F Diesel Engine
	Engine Type	single-cylinder, vertical, four-stroke, Direct injection, air-cooled
	Bore*Stroke(mm)	86*70
	Displacement(ml)	406
	Rated Power(kW/rpm)	6.3/3600
	Max. Power(kW/rpm)	6.6/3600
	Fuel Tank Capacity(L)	5.5
	Fuel Consumption(g/kW.h)	≤420g/kw.h
	Fuel Type	0# in summer,-10# or-20# in winter
	Oil Capacity(L)	1.65
	Lube type	SAE10W30 (above CC grade)
	Start System	Electric start with 30AH MF Battery, recoil and hand-operated
Others	Included Parts	with dry land blade(8x4 blades)
	Packing	Cast-iron Bracket +Caron Box
	20” GP(Set)	66 Units
	40” HQ(Set)	144 Units
	MOQ	20 Sets
