Home > Industrial Equipment & Components > Engine & Part > Engine > Mini Diesel Engine DW186FA

Mini Diesel Engine DW186FA

Mini Diesel Engine DW186FA thumbnail-1

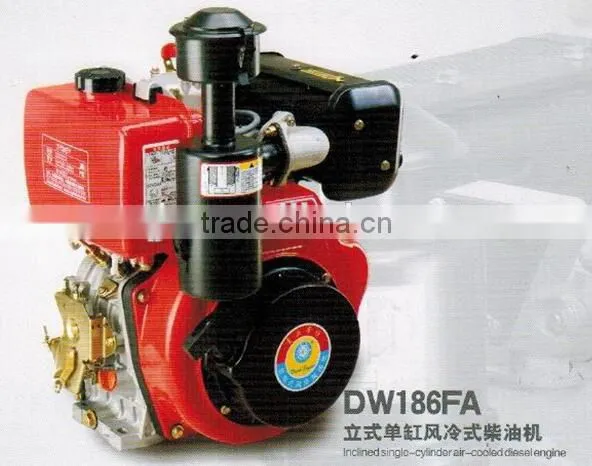

Mini Diesel Engine DW186FA photo-1
US$ 200 - 201 MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Jianchi Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Electric Start
Place of Origin Chongqing, China
Brand Name OEM
Model Number DW186FA
Dimension(L*W*H) 420*440*495mm
Weight 48kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Engine type:  vertical , Single cylinder,four stroke,forced air cooling, direct injection
Displacement:  0.418L
Bore*stroke,mm*mm:  86*72
Compression ratio:  8.0:1
Rated power,kw/rpm:  5.7/3000
Max.power,kw/rpm:  6.3/3600
Minimum idling stablized speed r/min:  ≤1300
Max.torque,n.m/rpm:  15.2/2500
Fuel consumption,g(kw.h )/ r/min:  285.5/3600
Min.stable speed,r/min:  1500±150
Lubricating system:  Pressure and splash composite type
Starting system:  Recoil and hand-operated or electrice-operated
Ignition system:  CDI
Fuel designation:  light diesel oil (0# forsummer         10#for winter )
Fuel tank/oil capacity,L:  3.5/1.1
N.W/G.W,kg:  ≤48kg
Dimension,L*W*H mm:  420*440*495
20FCL Loading quantity, sets:  220
Output shaft type:  spline shaft / flat key shaft / threaded shaft /  taper shaft
Output shaft rotation direction:  see the input end as counter-clockwise



FAQ



Q1: What are products your company manufactured?

    Diesel/gasoline tiller

   Diesel/gasoline engine

   Diesel/gasoline generator

   Above products range from 3HP-10HP

Q2: What is your MOQ?

   Generally we suggest 10sets, but we accept sample order if you want to test quality and performance first.

Q3: What is the payment term?

   Prepayment after order confirmed, balance payment before shipment.

   You are welcome to pay by T/T, L/C, D/A,D/P, Western Union, etc.

Q4: How about the delivery time?

   Within 10 workdays after receive the prepayment

Q5: How about your warranty?

   1year

Q6: How about your after-sale service?

     1-We have professional engineer team, they will be available for technical support.

    2-After-service available for foreign market as customer required.
