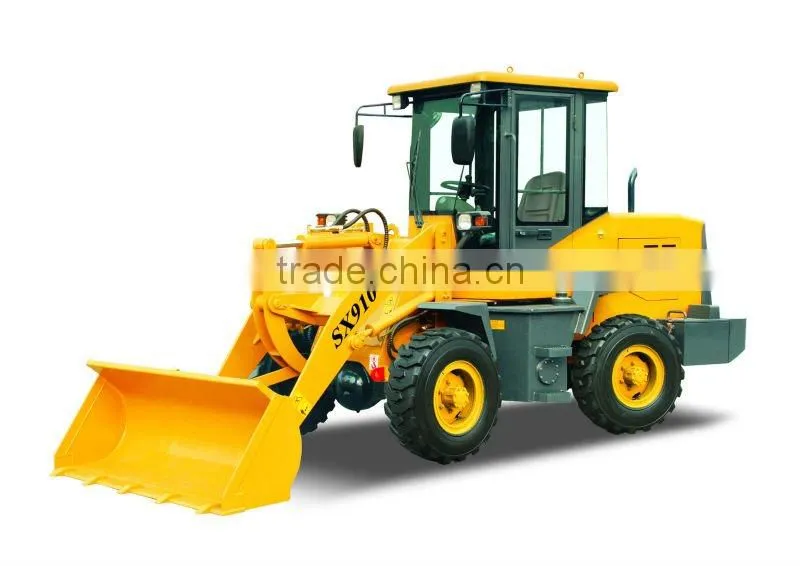

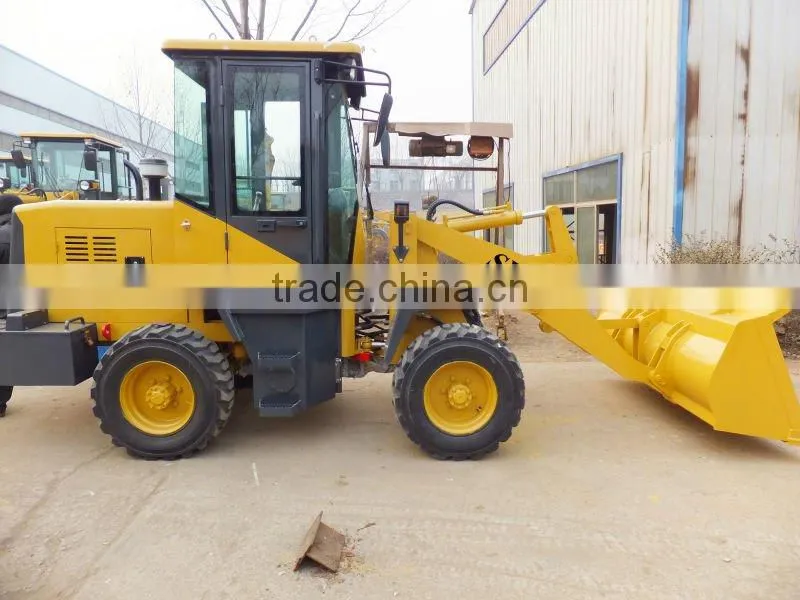

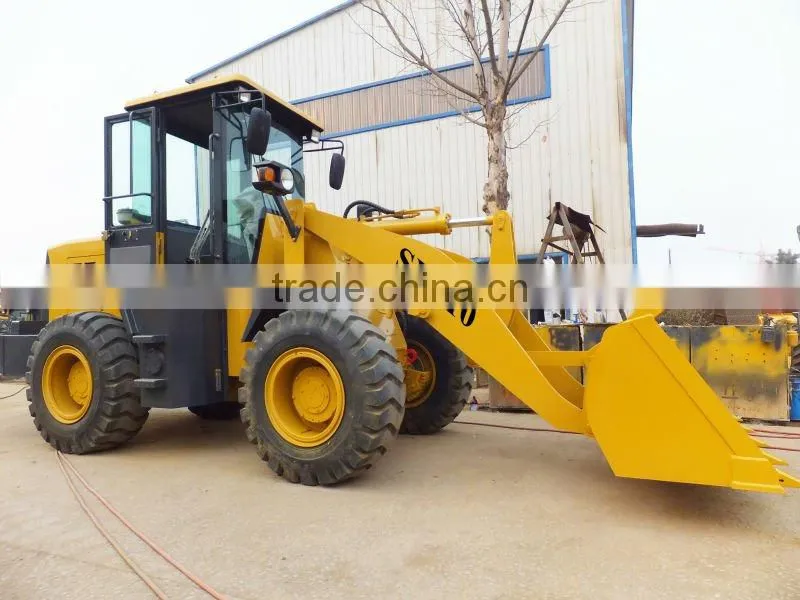

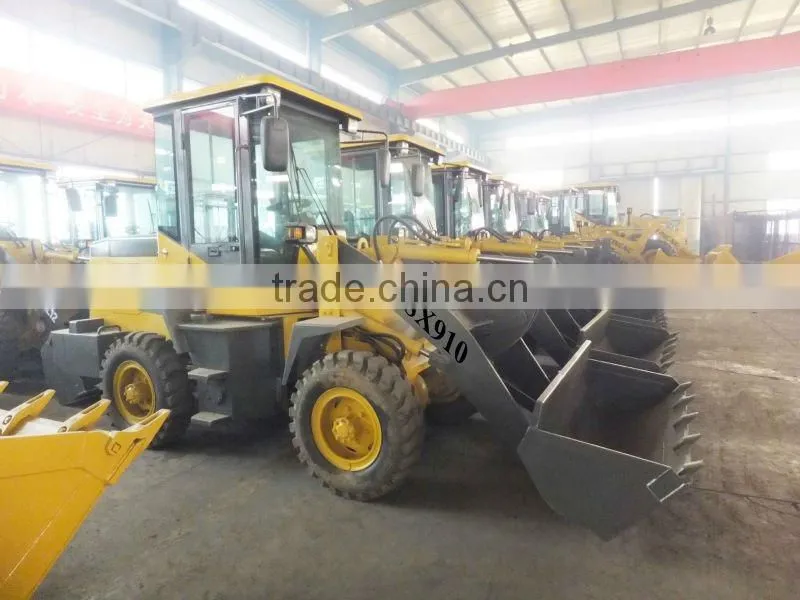

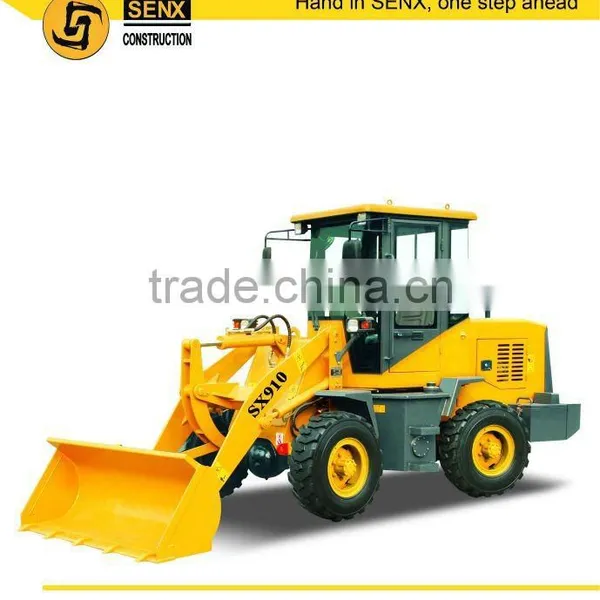

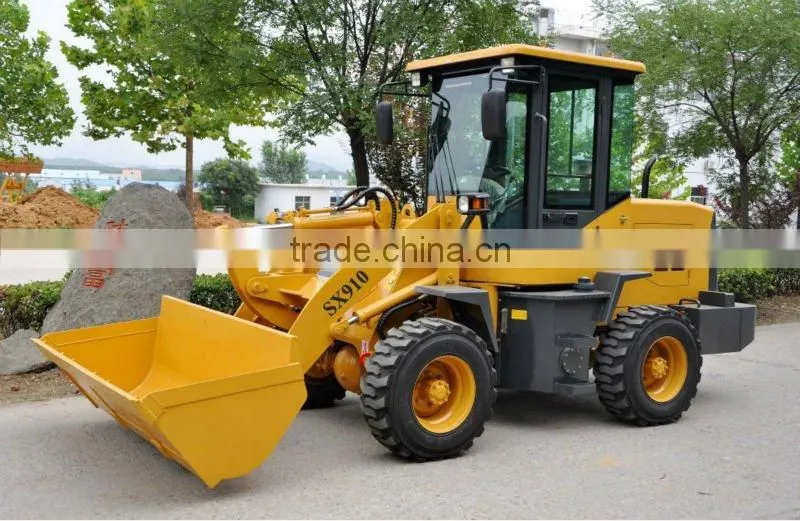

China brand SX910 1.0T mini/compact wheel loader(0.5CBM 1.0T CE approved)

Specifications

1.adopts JiangSu SiDa four cylinder engine
2.Unitary and luxury dashboard



1.Adopts JiangSu SiDa four cylinder engine;
2.Full hydraulic transmission technology, simple structure and reliable performance;
3.Separate flow of single pump for operation hydraulic system, significant effect of energy conservation;
4.Double sealing hydraulic pipeline joint with international standard of 24°awl and Oring, solved leakage problem of oil;
5.Load sensing fully hydraulic steering system, easy and flexible operation;
Safe and reliable single pipeline brake system, disk type brake;
6.In the nature of operation system with automatic lay flat performance at height;
7.Hinge joint part of bucket adopts dust prevention sealing and lubricating structure;
8.Unitary and luxury dashboard;

Item	Specifications	Item	Specifications
Bucket capacity	0.5 m3	Min. turning radius(outside of  rear wheels)	3600mm
Rated load	1000 kg	steering angle	L/R 35º
Dumping height	2420 mm	Min. ground clearance	230mm
Dumping reach	900 mm	Wheel base	1820mm
Boom lifting time	4 S	Tread	1400mm
Total cycling time	8 S	Engine model	SD490G
Max. speed	16km/h	Rated power	33kW/2400rpm
Max. breakout force	36 kN	Tyre	8.25-16
Max. drawing force	22kN	Overall dimensions	4960*1620*2420mm
Max. Gradeability	28°	Operating weight	2990kg
