Specifications
1.Deutz WP6G125E23 engine adopted.2.Doubly sealed hydraulic pipeline joints with 24
3.New,luxury cabin
4.Air over hydraulic

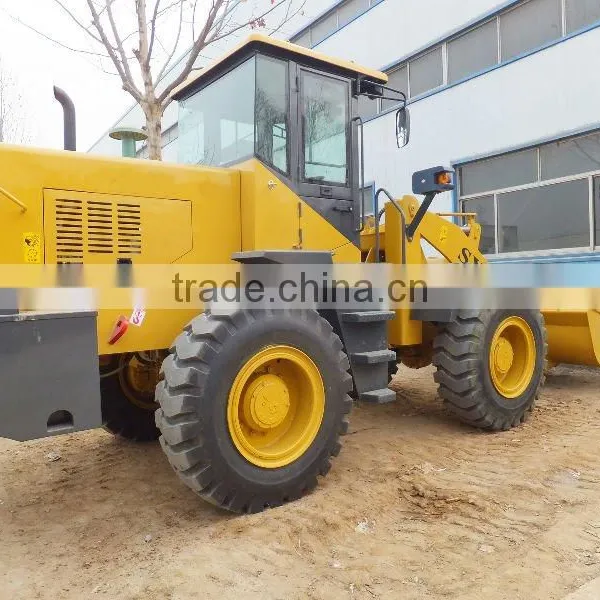

SX935 Wheel Loader parameter
Main blade adopts wear-resisting material, added with replaceable auxiliary blade and bucket tooth, largely prolong the lifetime of work device.
Items |
Specifications |
Items |
Specifications |
Rated capacity |
1.7m³ |
Transmission system |
Gear box separated from torque-converter |
Rated weight |
3000kg |
Torque-converter model |
YJ315x |
Operating weight |
9800kg |
Type |
Three-element, single stage |
Automatic leveling ability |
Yes |
Transmission box type |
Full power shift, countershaft type |
Static tilting load |
58.8KN |
Number of gear shift |
4 forward and 2 reverse |
Max breakout force |
120KN |
Max travel speed |
36km/h |
Max drawing force |
90KN |
Front and rear axle |
|
grade ability |
30° |
Main reducer type |
Single stage spiral reduction |
Max.dump height |
3050mm |
Final reducer |
Single stage planetary |
Max.dump reach |
1105mm |
Tire |
|
Min.ground clearance |
410mm |
Size |
17.5-25 |
Wheel base |
2600mm |
Front wheel air pressure |
343kpa |
Tread |
1800mm |
Rear wheel air pressure |
294kpa |
Height with bucket at full raise |
4870mm |
Steering system |
Fully hydraulic steering |
Lifting time |
5.5s(full load ) |
steering angle |
35°±,135°±1 respectively left/right |
Total cycle time(lifting, dumping, lowering) |
9.67s(full load) |
Min turning radius |
5160mm
|
Overall dimensions (l×w×h)mm |
6990*2420*3000 |
Hydraulic system |
|
Engine |
Yuchai engine shares co.,ltd |
Distribution valve |
DF25.2C |
Model |
YC6B125-T10 |
Gear pump |
GBGV2100 |
Type |
In line, water cooled, four stroke, direct.inject |
Brake system |
|
Rated power |
92KW |
Service brake |
Air assisted oil disc type four-wheel brake |
Rated rotation speed |
2200r/min |
Parking brake |
Soft axis, cable control |
Min oil consumption |
235g/kw.h |
Fuel tank capacity |
125L |
