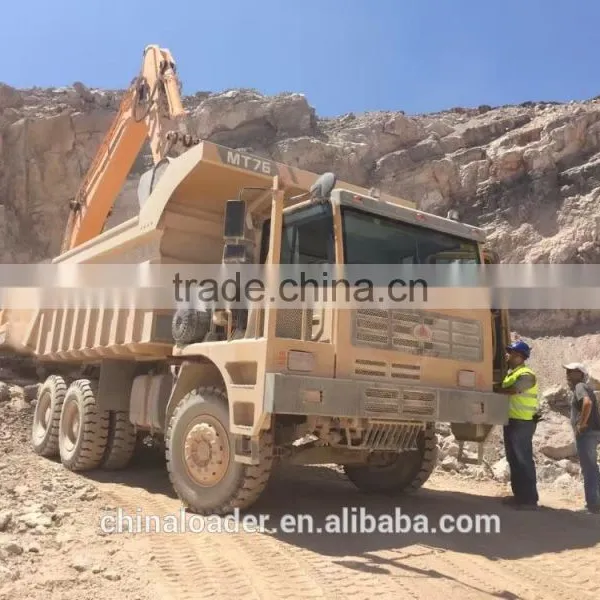

70T Mining Truck MT76 Mining Truck 70T Mining Truck
1. The reinforced riveted frame with large cross section is fabricated from high strength steel plates, ensuring large loading capacity and reliability in harsh working conditions.
2. Three rubber shock blocks of different rigidity (with different intervals between them and the leaf spring) are applied in the front suspension, shock resistance of the leaf spring greatly improve.
3. Box-section stiffeners wedged to form a frame structure, and high strength steel plates applied, durability greatly enhanced.
4. The MT76 can be refitted for coal transportation in the port by lengthening the chassis.
| Model | MT76 | |
|---|---|---|
| Curb Weight (kg) | 26000 | |
| Gross Weight (kg) | 76000 | |
| Payload (kg) | 50000 | |
| Body Volume (m³) | 32(Without tailgate) | |
| Truck Dimension (L*W*H) (mm) | 8670×3390×3885 | |
| Wheelbase (mm) | 3800+1500 | |
| Drive Mode | 6×4 | |
| Min. Curving Radius (m) | ≤11 | |
| Approach/Departure Angle | 30/40° | |
| Max. Speed (km/h) | 55 | |
| Max. Gradeability (%) | 37 | |
| Engine Model | WD12.375 | |
| Engine Power (kW) | 276 | |
| Transmission | 7DS200K | |
| Tire | 14.00-25 | |
| Axle Bearing Capacity (t) | 16+35+35 | |
Mining related equipment
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
