Home > Products > Mining Truck > China LGMG MT86 cheap Mining Dump Truck for sale

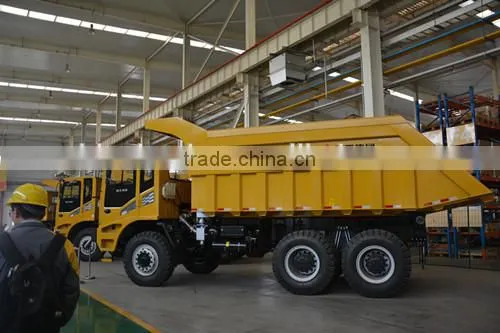

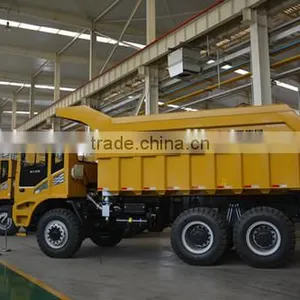

China LGMG MT86 cheap Mining Dump Truck for sale
- 200 Unit / Units per Month
- TIANJIN QINGDAO
- Credit Card
Product Details
Drive Wheel: | 6x4 | Capacity (Load): | 61 - 70t | Horsepower: | 251 - 350hp |
Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 3 |
Fuel Type: | Diesel | Gross Vehicle Weight: | 88 | Place of Origin: | Shandong, China |
Brand Name: | LGMG | Model Number: | MT86 | Dimensions (L x W x H) (mm): | 8670*3390*3885 mm |
Product Description
1. The reinforced riveted frame with large cross section is fabricated from high strength steel plates, ensuring large loading capacity, good shock and twisting resistance.
2. The transmission, specially developed for mining operations, is featured large torque output, and is more adaptive to harsh working conditions.
3. By applying dual push rods, rubber shock blocks and adding leaf spring plates, the front suspension is greatly strengthened.
4. Box-section stiffeners wedged to form a frame structure for the body, and abrasion resistant steel applied, better impact and abrasion resistance.
5. Driver's cab strengthened by roll-over protection structure, which is derived from excavator technique. The cab is optimized from all-around way, making it safe and comfortable.
Model | MT86 |
---|---|
Curb Weight (kg) | 28000 |
Gross Weight (kg) | 88000 |
Payload (kg) | 60000 |
Body Volume (m³) | 34 (Without tailgate) |
Truck Dimension (L*W*H) (mm) | 8670×3390×3885 |
Wheelbase (mm) | 3800+1500 |
Drive Mode | 6×4 |
Min. Curving Radius (m) | ≤11 |
Approach/Departure Angle | 30/40° |
Max. Speed (km/h) | 57 |
Max. Gradeability (%) | 36 |
Engine Model | WD12.420 |
Engine Power (kW) | 309 |
Transmission | 10JSD220(A) |
Tire | 14.00-25 |
Axle Bearing Capacity (t) | 19+37+37 |
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
Shandong Senxin Construction Machinery Group Company is the top professional supplier of the Chinese construction machinery,Since our company was founded, based on the advantage of which is the No.1 wheel loader manufacturer in china, we continually introduce top Chinese construction machinery enterprises into world markets.
Add: Linyi City Shandogn Province,China
Tel:86-539-8180952 Fax:86-539-8180951
skype:senxmoore
whatsapp: 0086 15020397593
email : senxmoore @163.com
