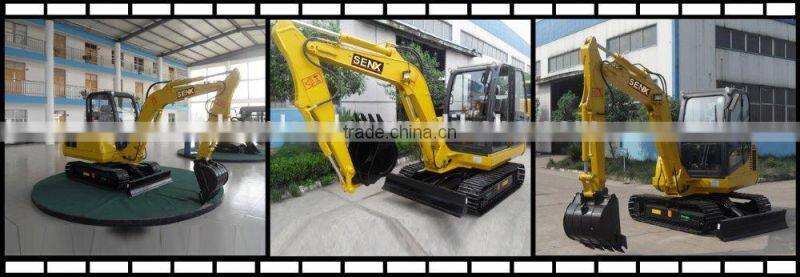

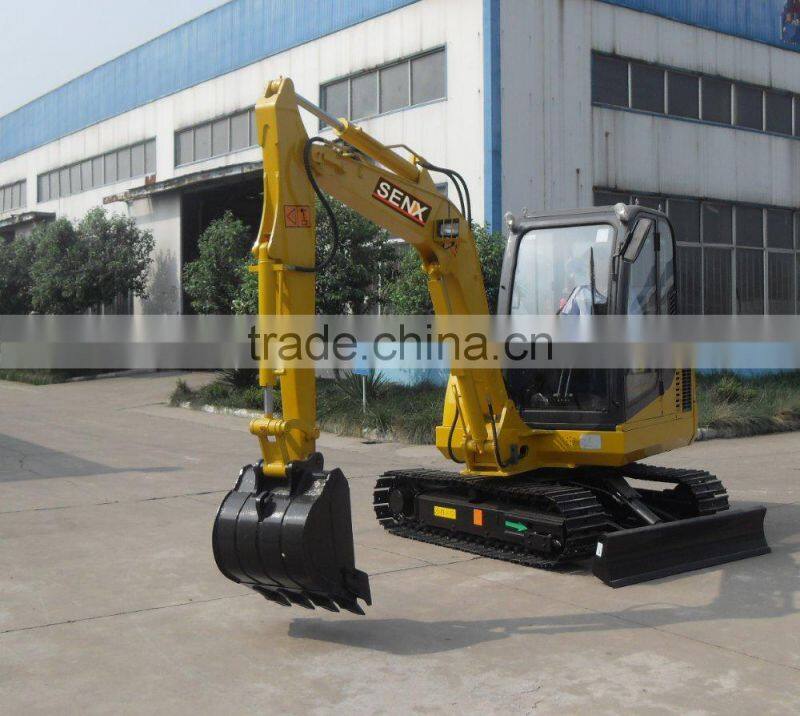

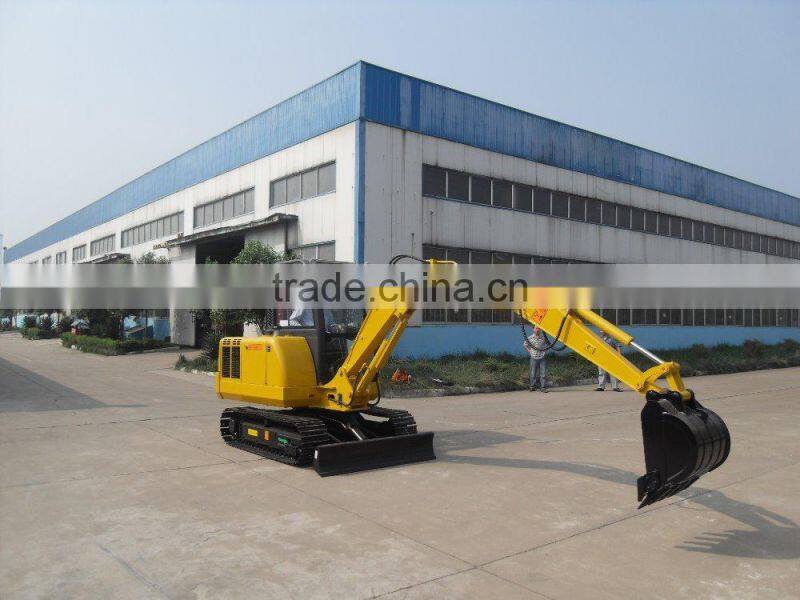

Chinese self-develop brand 4.5ton excavator
1)Various engine Choices: 1-Original A2300T 40KW/2200rpm 2-Chinese Quanchai 490 Diesel engine 28KW/2200rpm 3-Original Cummins A2300 (4-88x94) 32KW/2200rpm 4-Japan Yanmar 4TNV88 engine 27.1KW/2200rpm.
2)Imported main hydraulic parts, Japan KYB main pump/ valve/rotating motor/walking motor. Double-valve and double-circuit.
3)Digital control panel leads to easy operation. Full-open engine cover, easy maintenance.
4) Air conditioner , GPS system and rubber tracks are optional.
Mini Excavator SE45 Specifications: | ||
Specifications | Item | SE45 |
Engine model | CS B3.3-C or YANMAR | |
Operating weight | 4.200 KG | |
Travel speed | 4.4/2.7km/h | |
Bucket Capacity | 0.17m3(SAE) | |
Tracking force | 34.1kn | |
Engine power | 28KW/2.200RPM | |
Grade Ability | 30° (58%) | |
Swing speed | 11RPM | |
Bucket digging force | 23.7 kn | |
Ground Pressure | 38.7KPa | |
Arm digging force | 20.4 kn | |
Dimensions | Boom Length | 2.650 mm |
Arm Length | 1.450 mm | |
Upperstructure width | 1.600 mm | |
Undercarriage width | 1.750 mm | |
Overall Height with cabinet | 2.455 mm | |
Rear swing radius | 1.600 mm | |
Clearance under counter weight | 585 mm | |
Tumbler Distance | 1.710 mm | |
Ground clearance | 350 mm | |
Overall length for transportation | 5.500 mm | |
Working range | MAX digging radius | 5.530 mm |
MAX digging radius at ground lever | 5.420 mm | |
MAX digging depth | 3.405 mm | |
MAX vertical wall digging depth | 2.900mm | |
MAX digging height | 5.030 mm | |
MAX dumping height | 3.410 mm | |
MAX dozer cutting depth | 380 mm | |
MAX dozer lifting height | 255 mm | |
About Price:
The most competitive prices, different configurations with different price. We produce the construction machinery according to customer requirements.
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
*During the warranty period, we guarantee to provide technical support and
spare parts (caused by quality problem) freely, but the transportation cost shall be borne by the buyer.
*Out of warranty period, we will provide the main component parts for 7 years, and the other parts for 5 years, all the cost shall be be borne by the buyer.
1. High quality at reasonable price
2. Prompt delivery
3. Rich experience
4. Quick supply of spare parts
5. Professional shipping &package
6. Professional after-sales service
>> Professional: Proven technique can prove stable products, brought you smooth experience in importing.
>> High efficiency: we can handle your require swiftly, and will supply good following-service in spare parts for wheel loader.
>> Experienced: 18years export experience can make us skilled the clearance documents for you in short time
Shandong Senxin Construction Machinery Group.
Add:Room1001, Jiarui Building, Linyi City, Shandong Province, China.
Tel: 0086-539-8180952 Fax:0086-539-8180951
