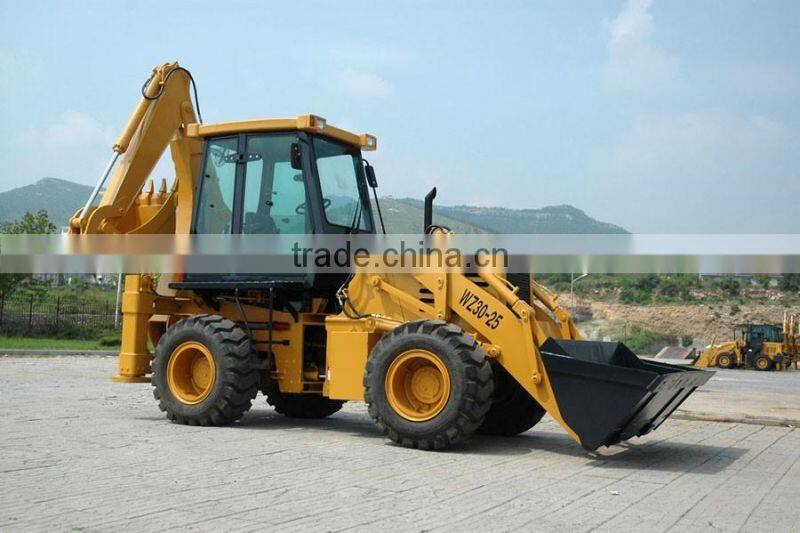

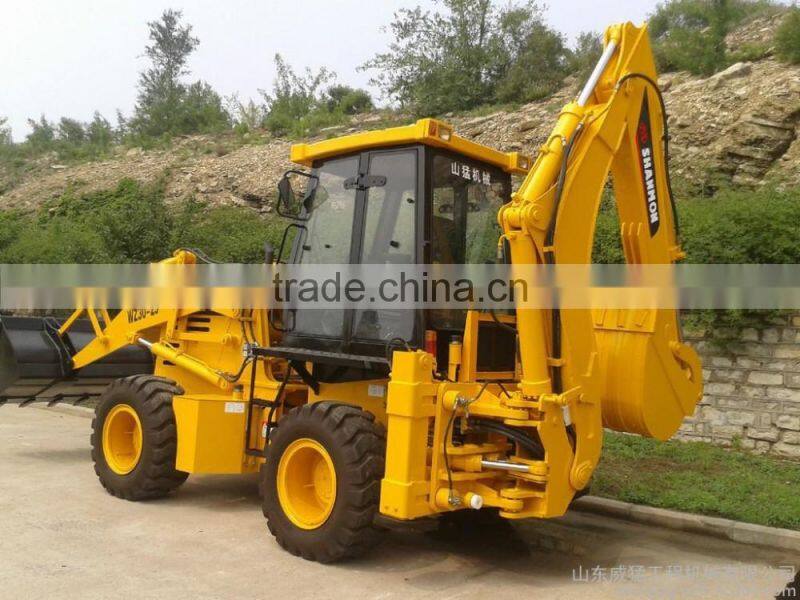

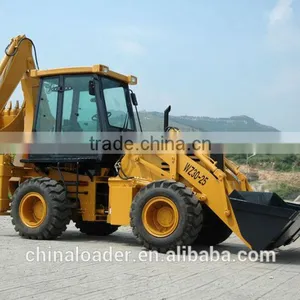

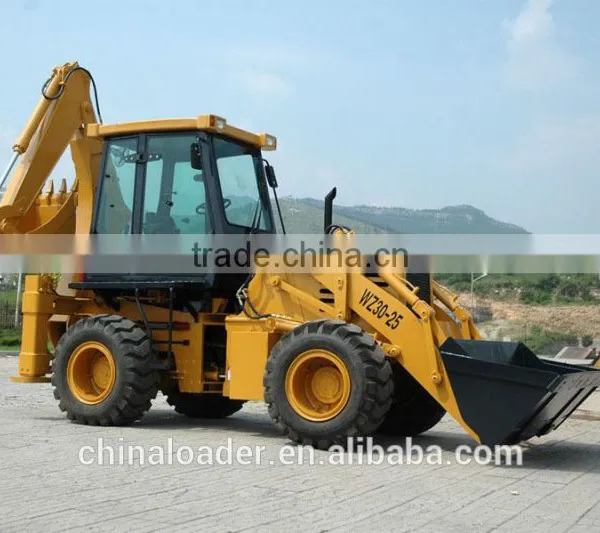

WZ30-25 backhoe loader, adopting European technology, is featured by strong power, pilot control, comfortable operation, excellent performance and high cost performance.
Overall Operating Weight | 7800KG | Hub Reduction Type | One-stage Hub Reduction |
Transportation Size |
| Rated Axle Load | 7.5t |
L*W*H mm | 6239×2268×3760 | Drive System |
|
Wheel Base | 2250mm | Torque Converter |
|
Min. Ground Clearance | 300mm | Model | YJ280 |
Load Capacity of Bucket | 1.0m3 | Type | Single-stage, Single-phase Three-element |
Breakout Force | 38KN | Peak Efficiency | 84.4% |
Load Lifting Capacity | 2500KG | Inlet Pressure | 0.4Mpa—0.55 Mpa |
Dumping Height of Bucket | 2742mm | Outer Pressure | 1.2Mpa—1.5 Mpa |
Dumping Distance of Bucket | 1062mm | Cooling Type | Oil Cold Pressure Circulation |
Max. Excavation Depth | 52mm | Transmission |
|
Backhoe Bucket Capacity | 0.3 m3 | Type | Counter Shaft Power-shift |
Max. Excavation Depth | 4503mm | Clutch Pilot Oil Pressure | 1373Kpa—1569 Kpa |
Rotary Angle of Bucket | 190o | Gear Number | Two Advance Gears, Two Reverse Gears |
Max. Traction Force | 39KN | Max. Speed | 22Km/h |
Engine |
| Tyre |
|
Model | YTR4108G60-1 | Specification | 16/70-20 |
Type | Straight, Direct Injection, Four-stroke, Direct-spraying Combustion Chamber | Air Pressure of Front Tyre | 0.22 Mpa |
Cylinder Number-Inner Diameter-Stroke | 4-108×120 | Air Pressure of Rear Tyre | 0.22 Mpa |
Rated Power | 55KW | Brake System |
|
Rated Rotational Speed | 2400r/min | Service Brake | Air-over-oil Caliper Disc Brake |
Min. Fuel Consumption | ≤216g/km.h | External | |
Max. Torque | ≥261.7N.M/1800r/min | Self-regulation | |
Displacement | 4.4L | Self-balancing | |
Steering System |
| Parking/Emergency Brake | Operating Force to Exert Brake |
Steering Gear Model | BZZ5-250 | Manual Operating Force to Relieve Brake | |
Min. Turning Radius | 5018mm | Breakout Force of Bucket | 46.5KN |
System Pressure | 12Mpa | Breakout Force of Bucket Rod | 31KN |
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
Shandong Senxin Construction Machinery Group Company is the top professional supplier of the Chinese construction machinery,Since our company was founded, based on the advantage of which is the No.1 wheel loader manufacturer in china, we continually introduce top Chinese construction machinery enterprises into world markets.
Add: Linyi City Shandogn Province,China
Tel:86-539-8180952 Fax:86-539-8180951
skype:senxmoore
whatsapp: 0086 15020397593
email : senxmoore @163.com
