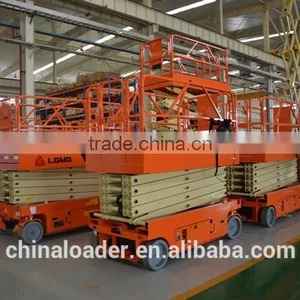

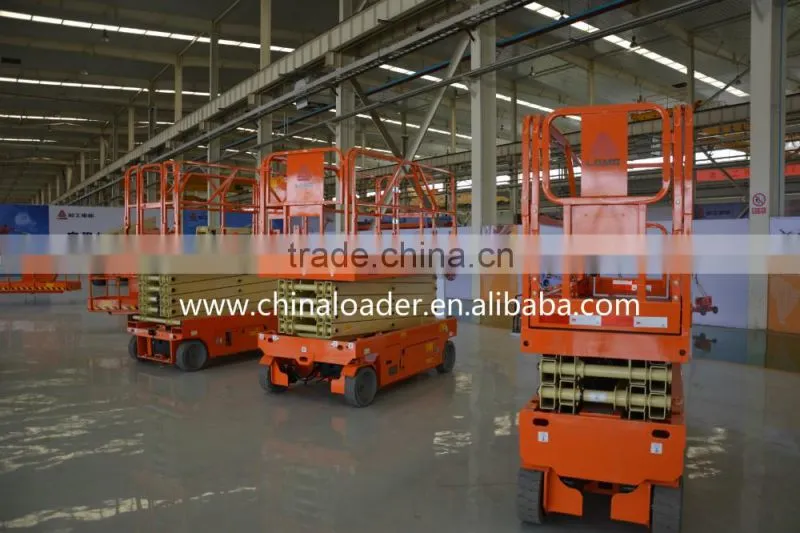

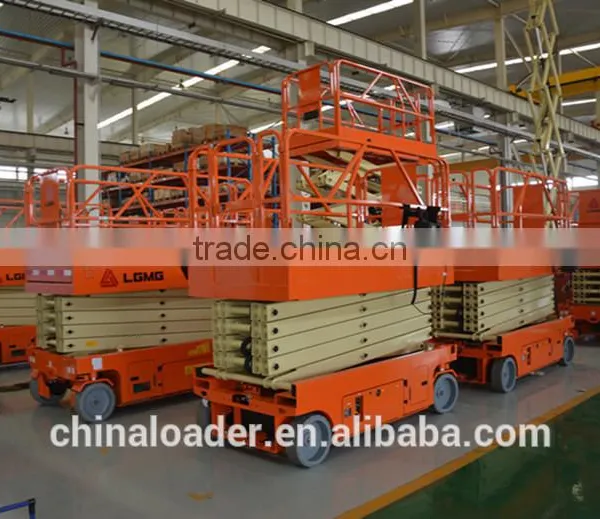

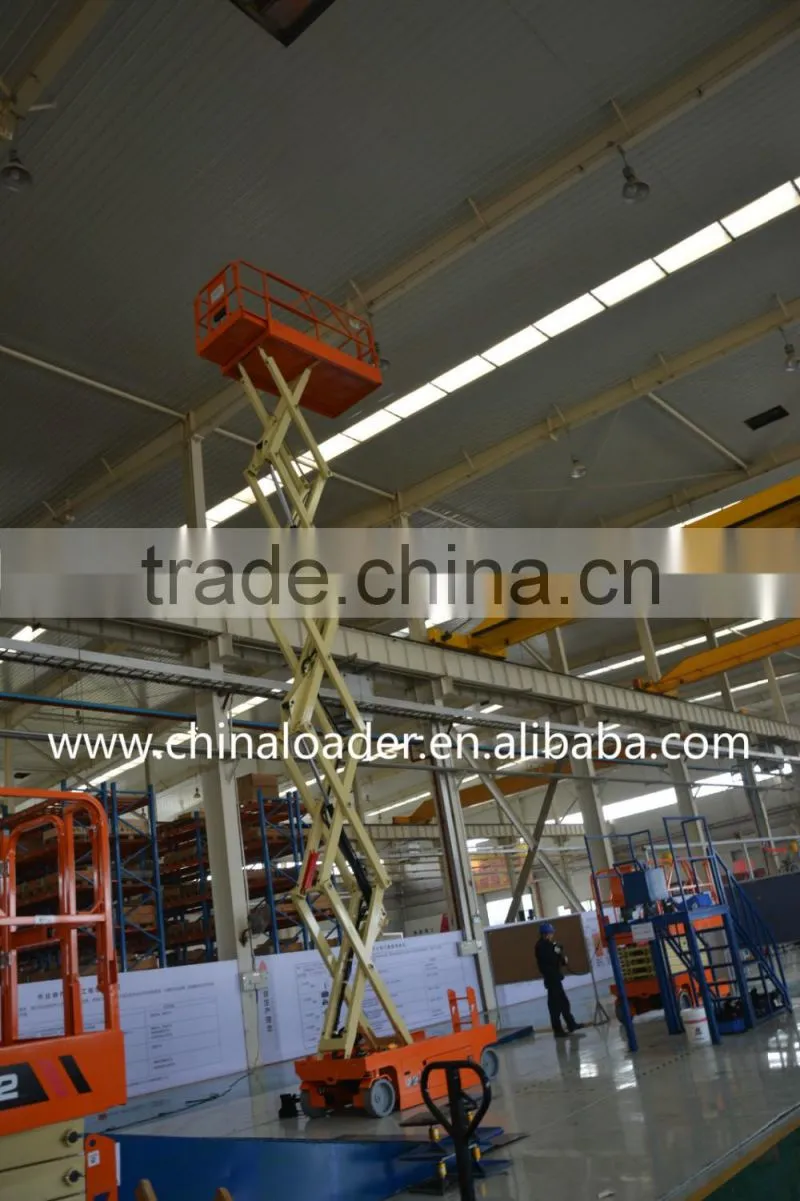

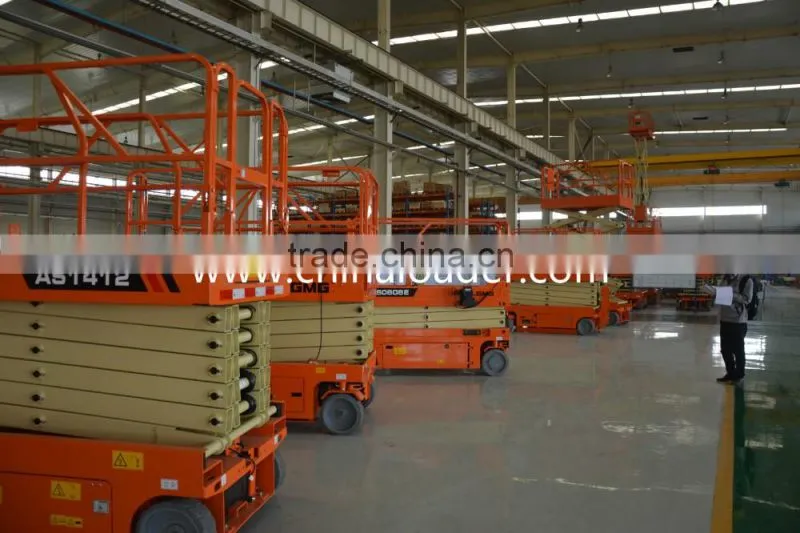

LGMG Scissor Lift aerial work platform provides long lasting performance and great productivity. It is ideal for indoor and outdoor construction, maintenance and installation applications with level surfaces.
Product Features
Lifting with steadiness
Advanced controlling system and first class hydraulic components to ensure you reaching the expected height with good steadiness.
Operation with Stability
High tensile steel scissor mechanism , advanced processing technology and our slot sewing techniques can ensures you feeling as stable as on the ground.
Lift and Drive with High Speed
Premium brand hydraulic components, qualified reliable pumps and valves to ensure the excellent crossing ability in the rough terrain application.
Heavy Chassis , Great Stability
Reinforced chassis with thicker steel plate, hydraulic motor drive and enlarged balance weight ensure the great stability on work.
Rough Terrain Scissor Lift
Excellent crossing ability on the outdoor tough working sites.
Much larger working area and more loading capacity to generate great productivity.
Optional Hydraulic Leveling Oil Cylinder makes it more durable at uneven ground.
Work cycle is double than other scissor lifts and.
Heavy Load Scissor Lift
Simple structure, easy operation. Extra ordinary lifting capacity , up to 500kg.Larger work area (wider platform, no change on max lifting capacity on extension), higher efficiency.
| HYDRAULIC DRIVE | ||||
|---|---|---|---|---|
| Model | AS0607 | AS0808 | AS1012 | AS1212 |
| Lift Capacity (Kg) | 230 | 230 | 320 | 320 |
| Lift Capacity Extension (Kg) | 113 | 113 | 113 | 113 |
| Max Platform Occupants | 2 | 2 | 2 | 2 |
| Max Working Height (m) | 7.8 | 10 | 12 | 14 |
| Max Platform Height (m) | 5.8 | 8 | 10 | 12 |
| Overall Length (m) | 1.83 | 2.47 | 2.47 | 2.47 |
| Overall Width (m) | 0.76 | 0.8 | 1.18 | 1.18 |
| Stowed Height-Rails unfolded (m) | 2.1 | 2.32 | 2.4 | 2.56 |
| Stowed Height- Rails folded (m) | 1.87 | 1.99 | 1.8 | 1.96 |
| Platform Size (LxW) | 1.63*0.74 | 2.26×0.8 | 2.26×1.15 | 2.26×1.15 |
| Platform Extension Length | 0.9 | 0.9 | 0.9 | 0.9 |
| Ground Clearance (stowed) | 0.06 | 0.1 | 0.1 | 0.1 |
| Ground Clearance (raised) | 0.02 | 0.02 | 0.02 | 0.02 |
| Wheelbase | 1.32 | 1.85 | 1.85 | 1.85 |
| Turning radius(inside/outside) | 0/1.55 | 0/2.1 | 0/2.3 | 0/2.3 |
| Motor | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw |
| Driving Motor | ||||
| Lifting Motor | ||||
| Driving Speed (Km/h) (stowed) | 4 | 3.5 | 3.5 | 3.1 |
| Driving Speed (Km/h) (raised) | 0.8 | 0.8 | 0.8 | 0.8 |
| Sec Up /Down speed | 16/29 | 30/40 | 62/74 | 65/90 |
| Battery | 4x6V/225Ah | 4x6V/225Ah | 4x6V/225Ah | 4x12V/300Ah |
| Charger | 24V/27.1A | 24V/27.1A | 24V/27.1A | 24V/27.1A |
| Max Gradeability | 25 | 25 | 25 | 25 |
| Max Slope | 1.5/3 | 2/3 | 2/3 | 1.5/3 |
| Tyre | 305*115 | 380×130 | 380×130 | 380×130 |
| Machine Weight (kg) | 1560 | 2000 | 3000 | 3300 |
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
*During the warranty period, we guarantee to provide technical support and
spare parts (caused by quality problem) freely, but the transportation cost shall be borne by the buyer.
*Out of warranty period, we will provide the main component parts for 7 years, and the other parts for 5 years, all the cost shall be be borne by the buyer.
Shandong Senxin Construction Machinery Group Company is the top professional supplier of the Chinese construction machinery, located in the famous equipment production base city Linyi. Since our company was founded, based on the advantage of SDLG which is the No.1 wheel loader manufacturer in china, we continually introduce top Chinese construction machinery enterprises into world markets, such as XCMG, SHANTUI, LIUGONG, XGMA, LGMG, CHANGLIN ,MORE BRAND HYDRAULIC PUMP PARTSetc.
As one-stop professional service supplier, SENXIN is committed to offer high quality, reliable products and service on time, on delivery and on budget, to keep your project running smoothly. Since year 2006, our well-coordinated and expertly managed operation system and professional team make us turn orders into final products and delivery them to 30 countries and regions globally.
We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
Add: Linyi City Shandogn Province,China
Tel:86-539-8180952 Fax:86-539-8180951
skype:senxmoore
whatsapp: 0086 15020397593
email : senxmoore @163.com
----------HAND IN SENXIN, ONE STEP AHEAD----------
Thank you for visiting our products & Looking forward to hearing from you!
