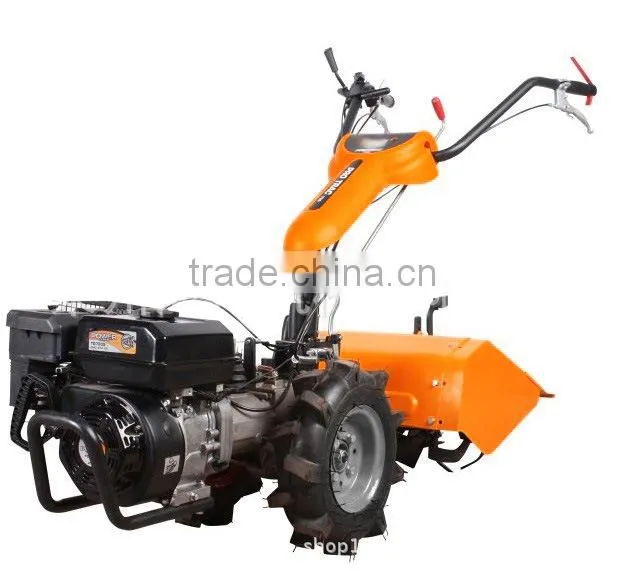

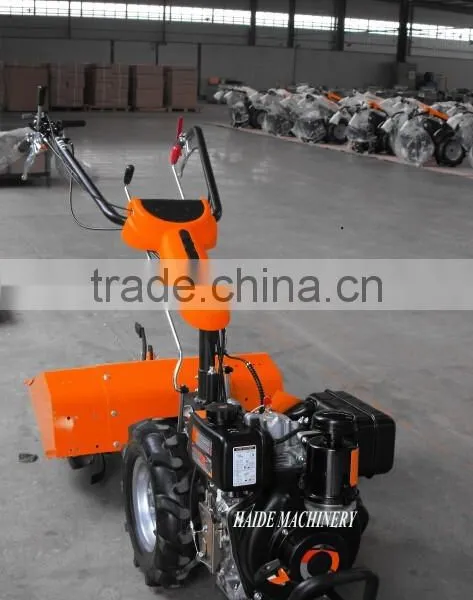

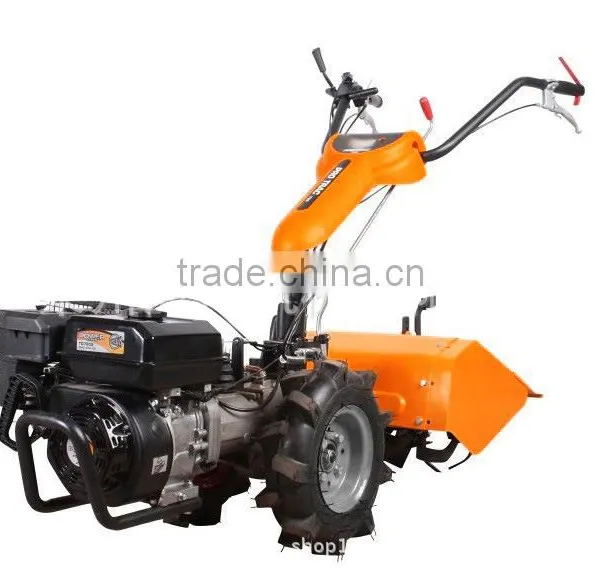

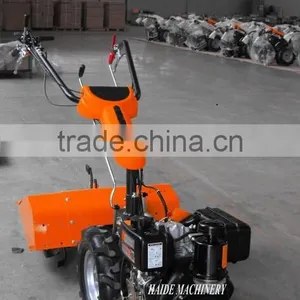

Item No.:PRO 600
| Engine | Gasoline Engine:6.5HP/4.1KW/196CC |
| Diesel Engine:3.8HP/2.8KW/211CC | |
| Start mode | Recoil Start/Electric Start/AC Start |
| Gearshift | 1 Forward,1 reverse,1 neutral |

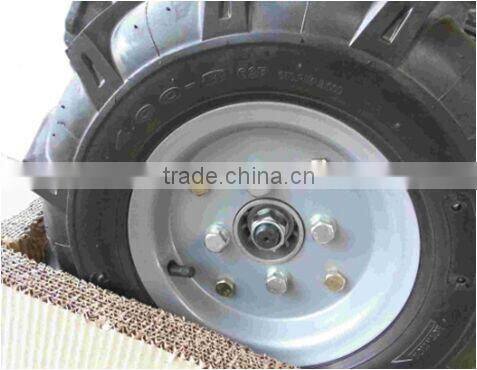

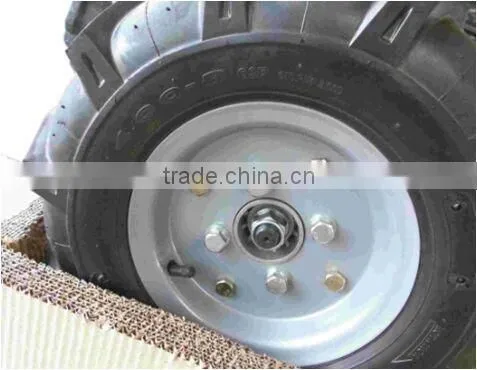

| Diameterer of wheel | 400-8 |
| G.W/N.W (gasoline/diesel engine) | 84KG/68KG(G) / 94KG/78KG(D) |
| Packing size(L*W*H) | Machine body:1030X690X1010mm |
| Tank Capacity (fuel/oil) | 3.6L/0.6L |

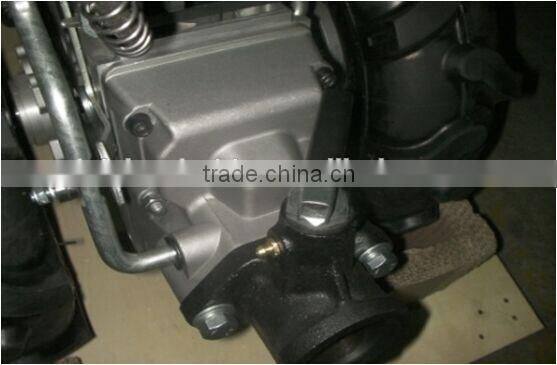

| Drive Mode | Gear-box transmission |

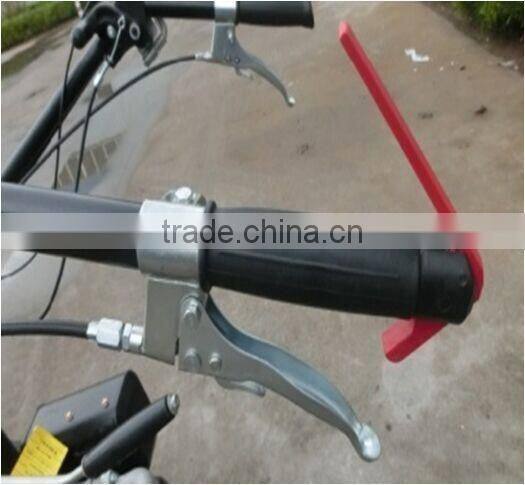

| Adjustable Handle | Horizontal direction: 230 degrees counterclockwise |
| Vertical direction: 99 degrees | |
| 20ft/40ft/40HQ | 40' FCL qty:68 pcs/20' FCL qty:32 pcs |

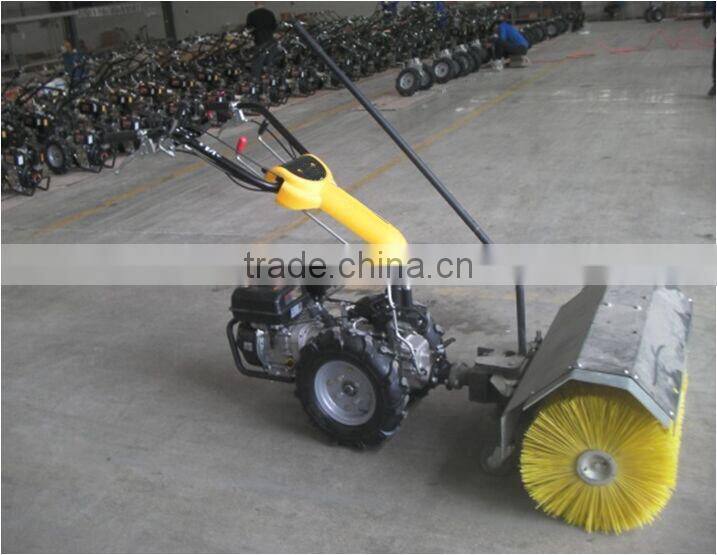

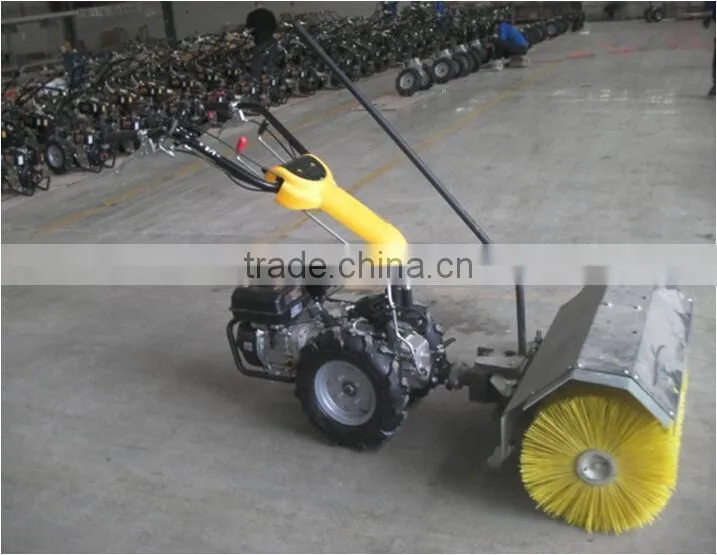

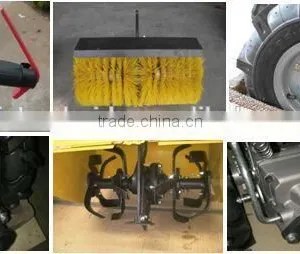

| Sweeper | |
| Working width | 800mm |

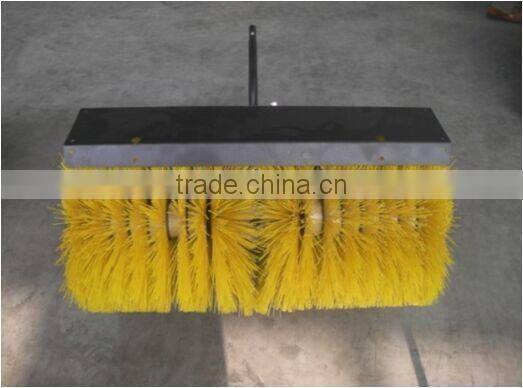

| Brush width | 700mm |
| Diameterer of brush | 460mm |
| Revolving speed | 300 r/min |
| NW/GW | 50/42kg |
| Packing size | 870X740X530mm |

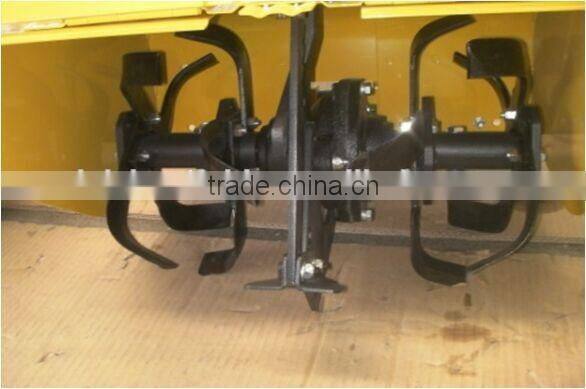

| Rear tiller | |
| Max Working width | 48cm |
| Max Working depth | 16cm |
| Rotary blade diameterer | 32cm |
| Rotating speed | 300rpm |
| NW/GW | 35/39kg |
| Packing size | 740X500X430mm |
We are leading to product a series of "H - FARM" brand (happy FARM) cultivators, tillers, snow throwers ,lawn mowers, log splitters…near to 20 years.
Now before using the machine , please to follow the below terms,
1: in order to protect the mean part , the engine of the machine damaged, please be sure the lubricating oil and fuel is to fulfill the requirements of factory standards before using the machine every time.
2: in order to protect the key point part, the transmission case, please pay attention on the attrition of the blade and the brushes . Go on adjusting them equally or to change it.
3: other questions, please refer to instruction or consulting company (0532-88970199) and online consulting advisory calls.
Laizhou Haide Farm & Garden Machinery was a new factory which founded in2005 on the base of Laizhou New Hardware Machinery which was established in the year of 1999. It is located in the Economic developing Zone of Laizhou City, Shandong Province, adjacent to Qingdao in south, Yantai in east and Weifang in west, with convenient traffic and beautifulenvironment.
Laizhou Haide Machinery was specialized in R&D, production and sale of Garden machinery such as Tillers, Snow throwers, Sweepers, Curb machines, Brush cutters , log splitters and log saws etc.
The company has an area of 20615 square meters, including a building area of 10797 square meters, capital assets of 20 million and a staff of 200.
With the certification of ISO 9001:2008, GS/CE , EPA and UL, our products are exported to the whole Europe, America, Russia, Canada, Japan and Australia with a sizeable sales volume in international market. Strict management contributes to quality products and perfect service, to promote the
development, we sincerely hope all customers join us for a win-win target!
Welcome to contact us!
After all, the machine warranty for one year, all accessories complete.
Buyers requirements: according to the users’ feedback, to analysis the reason of the problem, do right maintenance and the matched spare parts. If users are false or improper use, can call us directly, we will be pay a return visit in the first time, to give you the guide correctly.
