11HP/8.2KW/435CC power tiller /rotary tiller
LAIZHOU HAIDE MACHINERY CO.,Ltd has since 2001 achieved a long-term experience in manufacturing tillers and cultivators ranging from
2 Hp up to 10 Hp.
Haide was one of the first Chinese companies that entered OEM manufacture customized products .We have mini tiller lines,midi line,farm line,professional line.

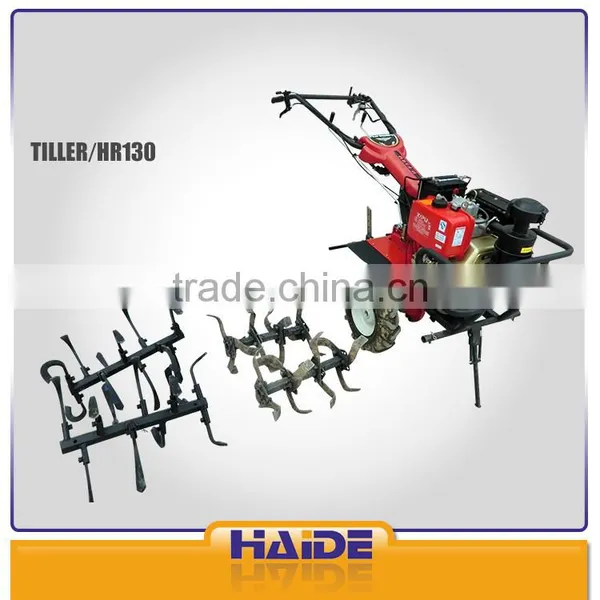

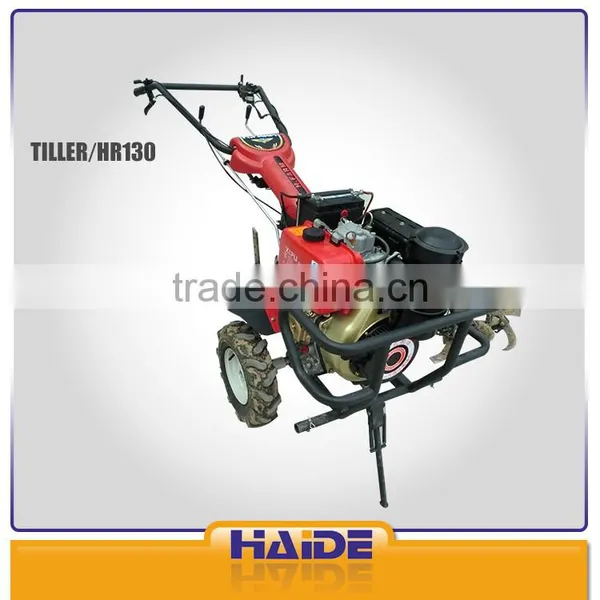

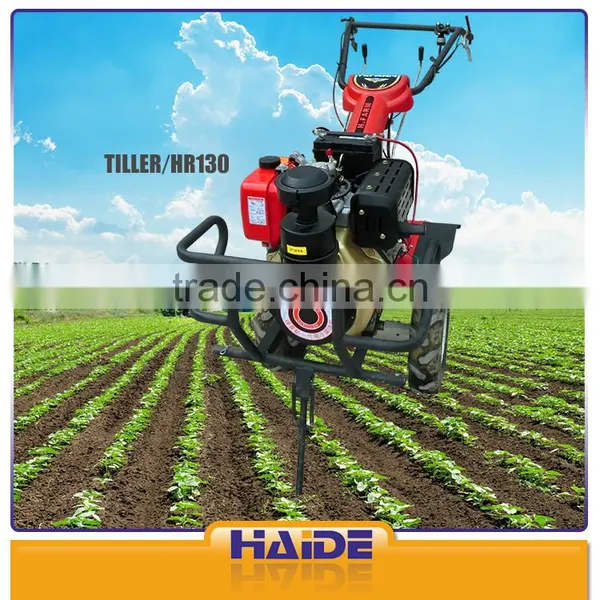

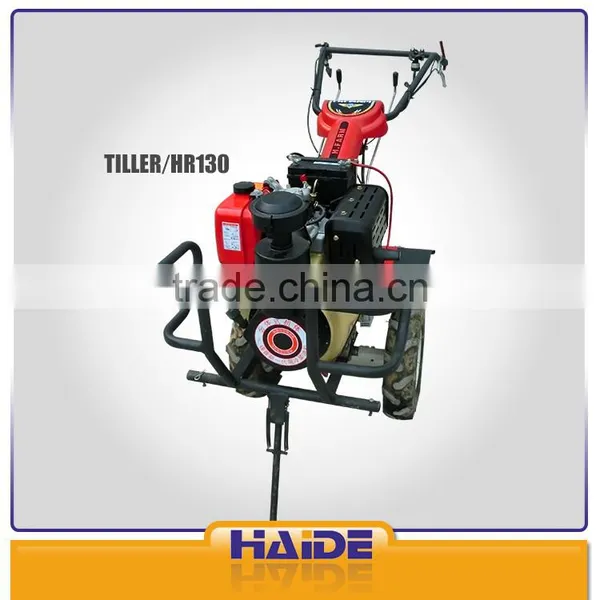

| Model | engine | working width/depth | blade diameter | handle bar |
| HR130 | 11HP/8.2KW/435CC | 1200mm / 350-450mm | 330mm | adjustable:horizontal direction rotating 60°;vertical direction 72 ° |
| rotor speed | assembly dimension | net weight |
| D1:79rpm,D2:138rpm,R:60rpm |
1650*620*970mm (WITH WHEEL) 1900*1200*1100mm (WITH BLADE) |
148.5KG (WITH WHEEL) 18KG (WITH BLADE) |
HAIDE MIDI LINE H400, H500, H500R,HL03,HL532,HL572
This line of machines ranging from 3.5 Hp up to 5.5 Hp is particularly suited for the small to medium
size vegetable garden.
All models have heat hardened bolted steel blades with a lifetime warranty against breakage.
Available with either fixedoradjustable handlebar. Model equipped with reverse gear the machine is
even more manoeuvrablein narrow places. Availableaccessories: side disc set, ridger, scarifier and 10” wheel set.

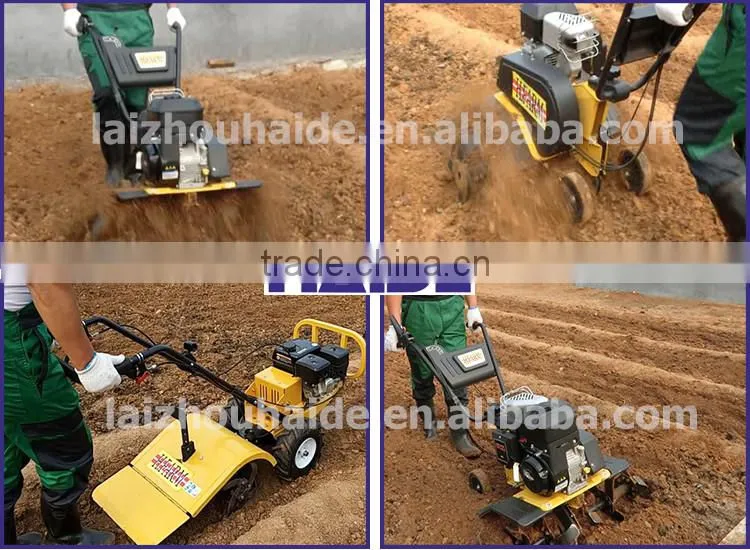

HAIDE FARM LINE HF10, HRT65
Haide Farm Line is a strong and durable range for professional work. A heavy-duty gearbox with 2 forward and 1 reverse
gears makes this range a real hard worker in all kinds of soil conditions.Farm Line also includes an efficient rear tine cultivator
with high rotating speed, which is excellent for normal weeding in narrow spaces and preparation of seedbeds.
HAIDE PRO LINE HPRO600, HPRO900
2-wheeled professional tractors, an all-year and all-round machines for any demand.
Haide Pro Line is built on Italian knowhow, where durability, high performance and easy handling are keywords.
The tractor may be equipped with accessories such as snow blower, sweeper and grass cutter without use of tooling.
HAIDE TYPES OF POWER TILLER
Part one
| Model | H500R | HL03 | HF10 |
| Engine | 6.5 HP/196 CC | 6.5HP/4.1KW/196CC | Powerline TG720S /212CC/6.5 HP |
| Transmission | 1 forward,worm gear transmission | 1 forward, belt+chain driven | 2 forward+1 reverse gearbox driven |
| Rotor speed | 82rpm | 171rpm | D1:64RPM;D2:89RPM;R:48RPM |
| Handle bar | fixed | left and right adjustable | Multi(up and down, left and right)adjustable |
| Blades | detachable | detachable | detachable |
| Working Width/Depth | 500 mm/330 mm | 360-550-850mm/330mm | 380-620-700-930mm/380mm |
| G.W/N.W | 50KG/40KG | 53KG/48KG | 105kg/90kg |
|
Shipping capacity |
40' HQ FCL qty:424 pcs |
40' HQ FCL qty:318 pcs(L03-530/L03-532) 40' HQ FCL qty: 240 pcs(L03-572) |
20’FCL:44 PCS 40’ FCL:94 PCS |
Part Two
| Model | HM03 | H03 | H500 | H15GU |
| Engine | 1.5HP/1.1KW/42.7CC | 3.5HP/2.0KW/113CC | 5HP/3.6KW/163CC | 5HP/2.7KW/140CC |
| Transmission | 1 forward worm gear driven | 1 forward, worm gear driven | 1 forward, worm gear driven | 1 forward |
| Rotor speed | 250rpm | 135rpm | 82rpm | 106rpm |
| Handle bar | fixed | fixed | fixed | adjustable |
| Blades | detachable | one-piece | detachable | dividable |
| Working Width/Depth | 240mm/240mm | 380mm/250mm | 500mm/330mm | 300-600mm , 250mm |
| G.W/N.W | 14KG/12KG | 30KG/28KG | 50KG/40KG |
34/32kg 37/35kg |
|
Shipping capacity |
40'HQ FCL qty: 848 pcs |
40' HQ FCL qty:424 pcs | 40' HQ FCL qty:424 pcs |
20' FCL qty:144 pcs 40' FCL qty:306 pcs |
Part Three
| Model | engine | working width/depth | blade diameter | handle bar |
| HR100 | 6.5HP/4.1KW/196CC | 1000mm/350mm | 330mm | adjustable:horizontal direction rotating 60°;vertical direction 72 ° |
| rotor speed | assembly dimension | net weight |
| D1:105rpm,D2:135rpm,R:68rpm | 1650*620*970mm(with wheel) 1650*1000*970mm(with blade) |
77kg(with wheel) 20kg(blade) |
| Model | HRT65 | PRO900 tiller | PRO600 tiller |
| Engine | 6.5HP/4.1KW/196CC |
Gasoline Engine:14HP/8.5KW/420CC Diesel Engine:9.3HP/6.8KW/406CC |
Gasoline Engine:6.5HP/4.1KW/196CC Diesel Engine:3.8HP/2.8KW/211CC |
| Start mode | Recoil start | Recoil Start/Electric Start/AC Start | Recoil Start/Electric Start/AC Start |
| Transmission | 1 Forward,1 reverse belt+worm gear driven | 3 Forward,3 Reverse,neutral gearbox driven | 1 Forward,1 reverse,1 neutral gearbox driven |
| Rotor speed | 157rpm | 300rpm | 300rpm |
| Handle bar | fixed |
Horizontal direction: 230 degrees counterclockwise Vertical direction: 99 degrees |
Horizontal direction: 230 degrees counterclockwise Vertical direction: 99 degrees |
| Working width/depth | 460mm/200mm | 700mm/320mm | 480mm/160mm |
| Tank capacity | 3.0L/0.6L | 6.5L/1.1L | 3.6L/0.6L |
|
Packing Size |
1180*570*760mm(L*W*H) |
machine body:1140*690*1010mm(G)/1100*690*1010(D) rear tiller unit:740*720*430mm |
machine body: 1030*690*1010mm rear tiller unit:740*500*430mm |
| G.W/N.W | 105KG/90KG |
machine body:120KG/103KG(G);143.5/127KG(D) rear tiller unit: 43.5/38KG |
machine body:84KG/68KG(G) / 94KG/78KG(D) rear tiller unit:39/35KG |
| Shipping capacity | 20' FCL qty:54 pcs | machine body:20' FCL qty :32pcs/40' FCL qty :68pcs | machine body:20' FCL qty:32 pcs/40' FCL qty:68 pcs |
| 40' FCL qty:108 pcs | rear tiller unit: 40' HQ qty: 240 pcs | rear tiller unit: 40' FCL qty:345 pcs |
Company profile
Laizhou Haide Machinery Co.Ltd(Laizhou Haide Farm and Garden Machinery Co.,Ltd) is a well-reputed, internationally operating Chinese manufacturing company specializing in the development and production of machines and equipment for the markets of garden, forestry, agriculture and horticulture.
History
Established in 2005 in Laizhou close to Qingdao and today covers an area of over 20.000 square meters.
Product areas
Our areas of specialty are:
♦Soil products such as tillers, motorhoes, front and rear tine cultivators
♦Cleaning products such as vacuum cleaners, sweepers and snow blowers
♦Grass products such as scarifiers, lawn movers, wheeled brush cutters
♦Forestry products such as log saws,hand splitters

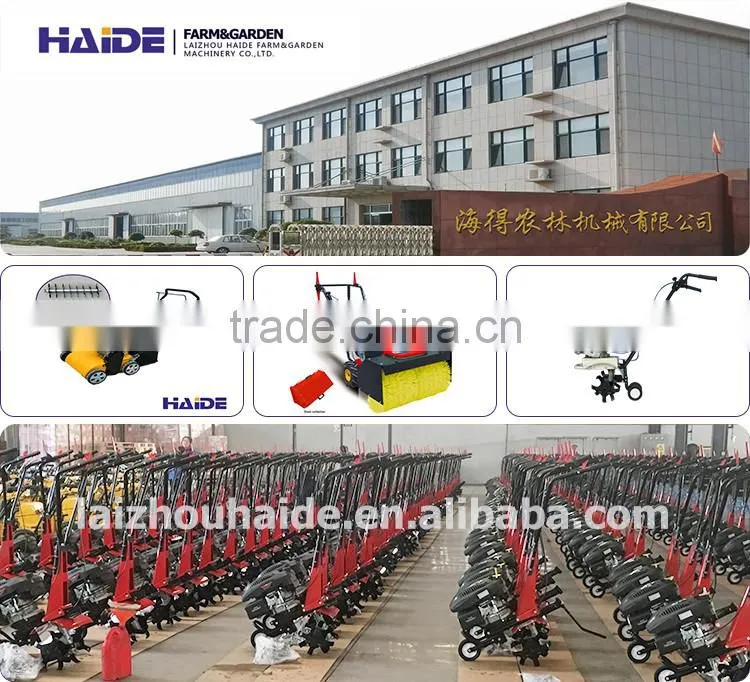

Production plant
Our modern assembly lines are flexible and based on advanced technology, and we currently work to improve our production processes to achieve a high degree of efficiency and to expand our capacity. We have access to a large network of well-qualified and reliable sub suppliers. We have a strong and experienced work force.
MACHINERY WORKING
Ways of Packing:
1. coat with high quality paint
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Before service
◊Professionals technicians will be send to help you with installment & adjustment to make sure the machine use well as soon as possible.
◊ After all, the machine warranty for one year, all accessories complete.
◊Any question wil be solved with professionals teachnicians in 24 hours by calling & emailing ...
After service
◊ Buyers requirements: according to the users’ feedback, to analysis the reason of the problem, do right maintenance and the matched spare parts.
◊Developing a precaution system, making sure the troubleshoot be solved in first time.
◊If users are false or improper use, can call us directly, we will be pay a return visit in the first time, to give you the guide correctly.
NOTES
We are leading to product a series of "H - FARM" brand (happy FARM) cultivators, tillers, snow throwers ,lawn mowers, log splitters…near to 20 years.
Now before using the machine , please to follow the below terms,
♦ in order to protect the mean part , the engine of the machine damaged, please be sure the lubricating oil and fuel is to fulfill the requirements of factory standards before using the machine every time.
♦ in order to protect the key point part, the transmission case, please pay attention on the attrition of the blade . Go on adjusting them equally or to change it.
We are ready to provide 24-hour technical support.
other questions, please refer to instruction or consulting company and online consulting advisory calls.
