Home > Products > Gasoline Tiller > High Quality and Widely Used in Garden Mini Gasoline Power Tiller
High Quality and Widely Used in Garden Mini Gasoline Power Tiller
- Chongqing
- T/T
You May Like
-
7HP ~ 16HP Mini Gasoline Power Hand Tiller Cultivator Price
-
Ce/Iso Certificate Low Fuel Consumption Mini Rotary Gasoline Tiller Cultivator In India
-
Used Gearbox for Rotary Cultivator for Garden Tractor for Sale
-
Professional Manufactor Gasoline Power Tiller Cultivator With Wheel
-
For Mini Garden Farmer Helper Gasoline Power Tiller Price
-
Used in Farmland China Best Gasoline Cultivator At a Favorable Price With Spare Parts for Sale
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Gasoline | Power(W) | 4.8KW ~6.6KW | |
| Certification | CE | Warranty | 1 YEAR | |
| Use | Argriculture | Place of Origin | Chongqing, China | |
| Brand Name | Tenglong Power | Model Number | TL1WG4.0-105FQ | |
| Weight | 105KG | Dimension(L*W*H) | 1000*530*800MM | |
| After-sales Service Provided | No overseas service provided |
Product Description
High quality and widely used in garden mini tiller

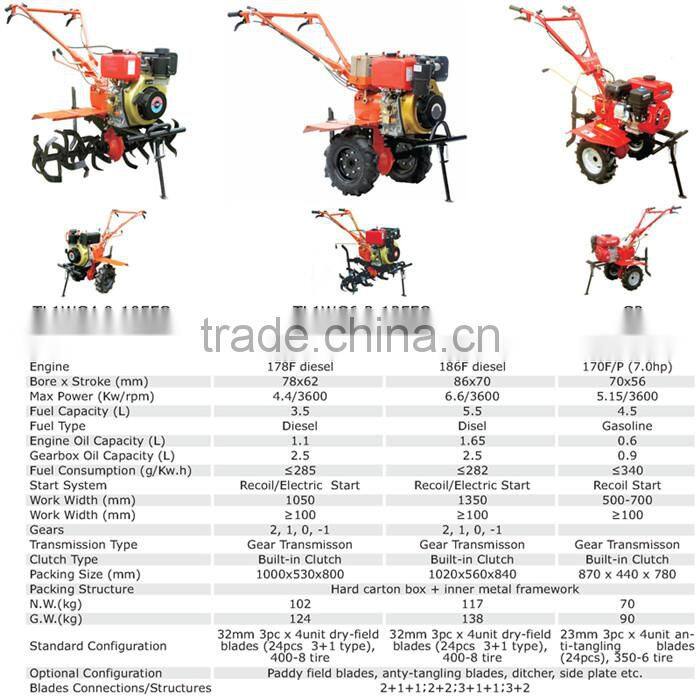

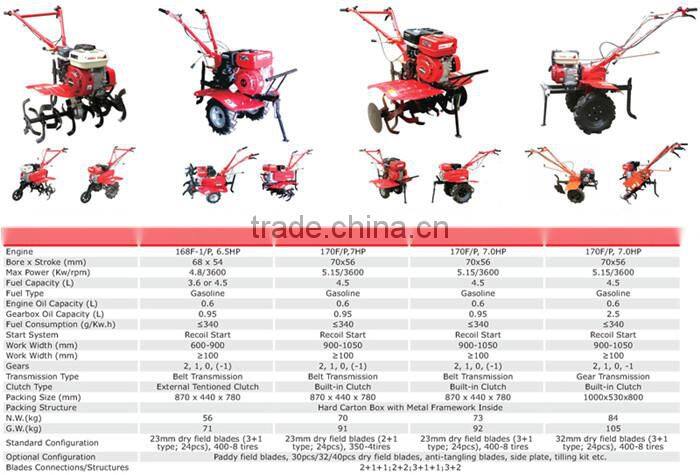

Product Spec.(
| Model | TL1WG4.0-105FQ |
| Engine | 170F/P,7.0HP |
| Bore*Stroke(mm) | 70*56 |
| Max Power(kw/rpm) | 5.15/3600 |
| Fuel capacity(L) | 4.5 |
| Fuel Type | Gasoline |
| Engine Oil Capacity(L) | 0.6 |
| Gearbox oil capacity(L) | 2.5 |
| Fuel consumption(g/kw.h) | ≤340 |
| Start system | Recoil start |
| Work width(mm) | 900-1050 |
| Work width(mm) | ≥100 |
| Gears | 2,1,0,(-1) |
| Transmission Type | Gear transmission |
| Clutch Type | Gear transmission |
| Packing size(mm) | 1000*530*800 |
| Packing Structure | Hard carton box with metal framework inside |
| N.W(kg) | 84 |
| G.W(kg) | 105 |
| Standard configuration | 32mm dry field blades(3+1 type;24pcs),400-8 tires |

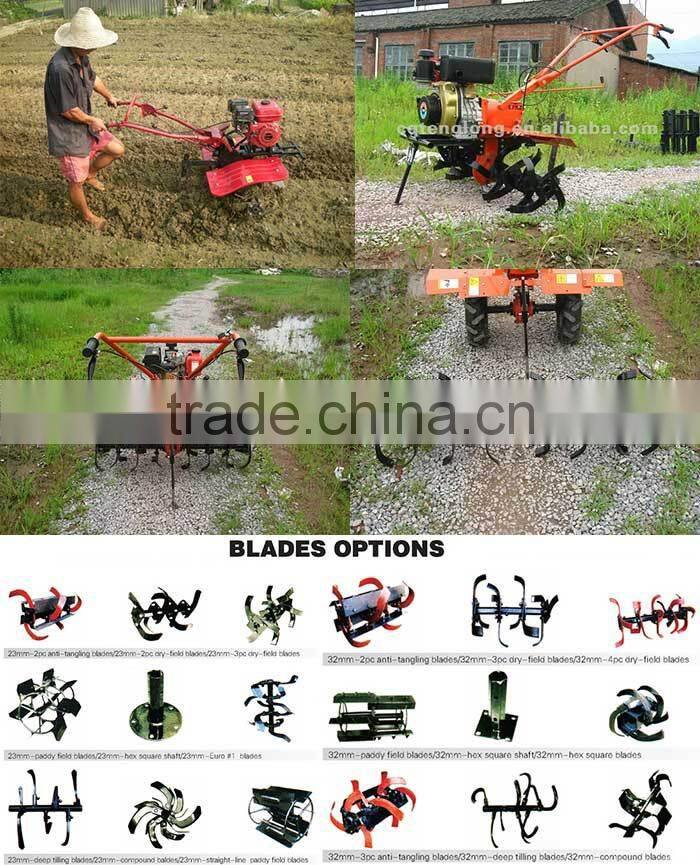

| Optional configuration | Paddy field blades,30pcs/32/40pcs dry field blades,anti-tangling blades,side plate,tilling kit etc |
| Blades connections/structures | 2+1+1;2+2;3+1+1;3+2 |
Chongqing Tenglong Shines Electro-Mechanics Co., ltd. which was established in 1998. A professional, leading positioned the first manufacturer of gasoline engine, generator, water pump, tiller and other agricultural machineries in Chongqing, China. With more than 14 years manufacturing experience in general power industry, rigorous quality control, totally 8 procedures to ensure the quality. Outstanding technical talents and advanced technology win us a good reputation in whole China.
Powerful Engine: single cylinder 4 stroke from 2.5HP to 16HP. Recoil or key start. - 30°low temperature operation, reduce engine
Energetic generator: Single/Dual fuel powered, 100% cooper high quality electricity generated with THD less than 1.5%
Effective water pump: Self priming or centrifugal type, 1 inch to 4 inch for select
Economic tiller/cultivators: Belt or gear transmission, low cost labor saving tools for agricultural

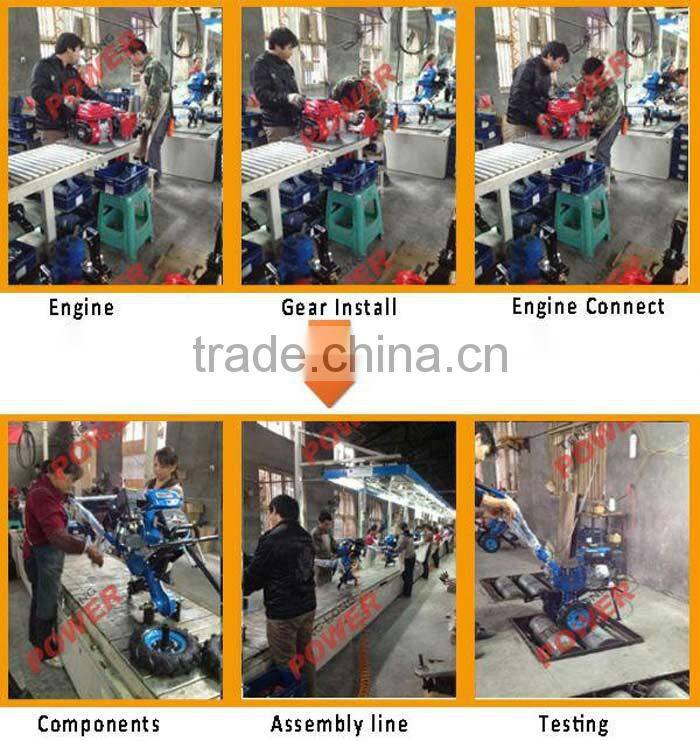

Power Tiller Cultivator Process

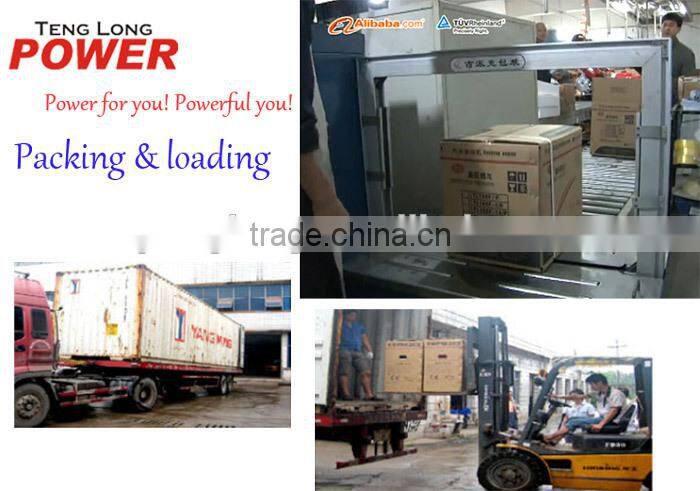

1 set in a polybag, standard thicken strong carton box
Customer designed packing method is available
A: Within 30days after got your deposit or LC
Q: Is it all right to make customer brand name?
A: You can OEM brand name if the quantity above the MOQ.
Q: Where is your loading port?
A: Chongqing,CHINA .
Q: What are your payment term?
A: 30% deposit and balance T/T against by the copy of B/L or L/C at sight.
Come on! Don't be shy. Feel free to contact me .
Click " Send " below!
