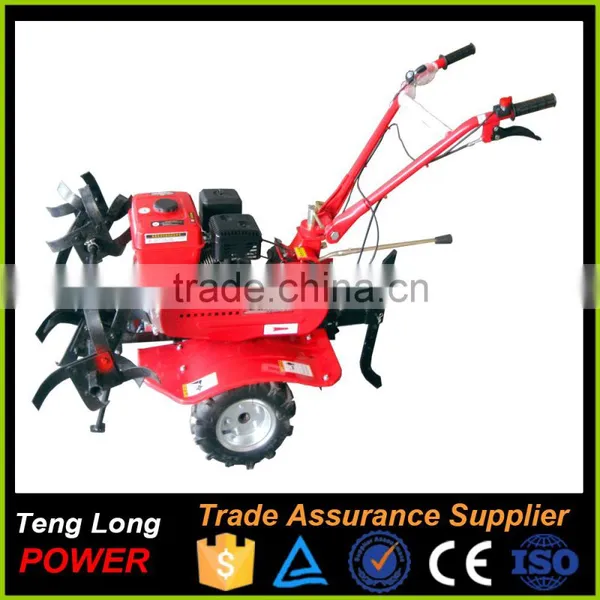

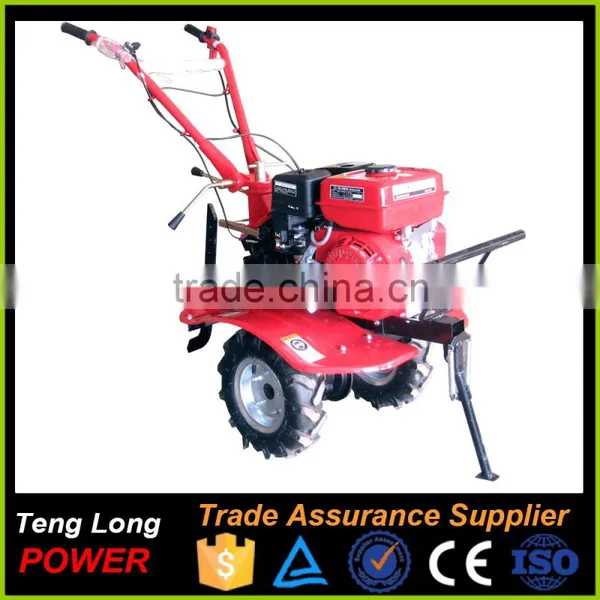

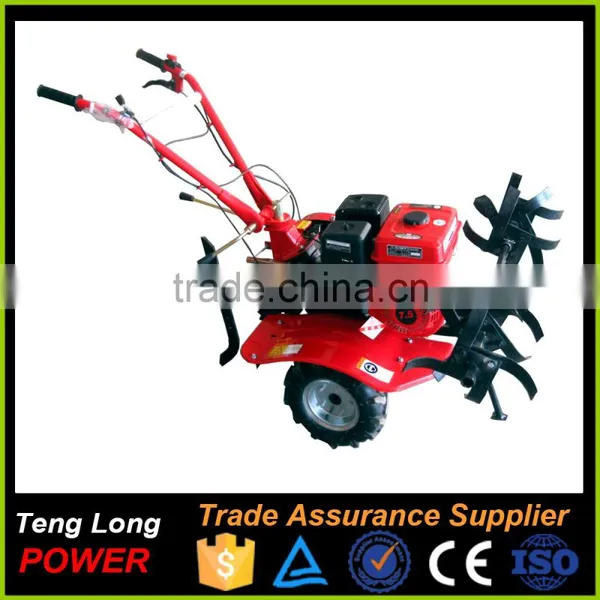

Seeder used in farmland and garden professional machines for tiller
1.Product Spec.(
| Model | TL1WG3.8-50FQ | ||
| Engine | 168F-1/P,6.5HP | ||
| Bore*Stroke(mm) | 68*45 | ||
| Max Power(kw/rpm) | 4.8/3600 | ||
| Fuel capacity(L) | 3.6or 4.5 | ||
| Fuel Type | Gasoline | ||
| Engine Oil Capacity(L) | 0.6 | ||
| Gearbox oil capacity(L) | 0.95 | ||
| Fuel consumption(g/kw.h) | ≤340 | ||
| Start system | Recoil start | ||
| Work width(mm) | 600-900 | ||
| Work width(mm) | ≥100 | ||
| Gears | 2,1,0,(-1) | ||
| Transmission Type | Belt transmission | ||
| Clutch Type | External Tentioned clutch | ||
| Packing size(mm) | 870*440*780 | ||
| Packing Structure | Hard carton box with metal framework inside | ||
| N.W(kg) | 56 | ||
| G.W(kg) | 71 | ||
| Standard configuration | 23mm dry field blades(3+1 type;24pcs),400-8 tires | ||
| Optional configuration | Paddy field blades,30pcs/32/40pcs dry field blades,anti-tangling blades,side plate,tilling kit etc. | ||
| Blades connections/structures | 2+1+1;2+2;3+1+1;3+2 | ||
Spare parts
More models choice
| MODEL | TL1WG4.0-105FC | TL1WG6.3-135FC | G3 | |||||||||||
| ENGINE | 178F diesel | 186F diesel | 170F/P (7.0hp) | |||||||||||
| BORE X STROKE | 78x62 | 86x70 | 70x56 | |||||||||||
| MAX POWER (Kw/rpm) | 4.4/3600 | 6.6/3600 | 5.15/3600 | |||||||||||
| FUEL CAPACITY (L) | 3.5 | 5.5 | 4.5 | |||||||||||
| FUEL TYPE | Diesel | Disel | Gasoline | |||||||||||
| ENGINE OIL CAPACITY (L) | 1.1 | 1.65 | 0.6 | |||||||||||
| GEARBOX OIL CAPACITY (L) | 2.5 | 2.5 | 0.9 | |||||||||||
| FUEL CONSUMPTION (G/Kw.h) | ≤285 | ≤282 | ≤340 | |||||||||||
| START SYSTEM | Recoil/Electric Start | Recoil/Electric Start | Recoil Start | |||||||||||
| WORK WIDTH (mm) | 1050 | 1350 | 500-700 | |||||||||||
| WORK DEPTH (mm) | ≥100 | ≥100 | ≥100 | |||||||||||
| GEARS | 2, 1, 0, -1 | 2, 1, 0, -1 | ||||||||||||
| TRANSMISSION TYPE | Gear Transmisson | Gear Transmisson | Gear Transmisson | |||||||||||
| CLUTCH | Built-in Clutch | Built-in Clutch | Built-in Clutch | |||||||||||
| PACKING SIZE (mm) | 1000x530x800 | 1020x560x840 | 870 x 440 x 780 | |||||||||||
| PACKING | Hard carton box + inner metal framework | |||||||||||||
| N.W.(kg) | 102 | 117 | 70 | |||||||||||
| G.W.(kg) | 124 | 138 | 90 | |||||||||||
| STANDARD CONFIGURATION | 32mm 3pc x 4unit dry-field blades (24pcs 3+1 type), 400-8 tire | 32mm 3pc x 4unit dry-field blades (24pcs 3+1 type), 400-8 tire | 23mm 3pc x 4unit anti-tangling blades (24pcs), 350-6 tire | |||||||||||
| OPTIONAL CONFIG. | Paddy field blades, anty-tangling blades, ditcher, side plate etc. | |||||||||||||
| BLADES CONNECTIONS | 2+1+1;2+2;3+1+1;3+2 | |||||||||||||
Flow chart
2. Company Information.
Chongqing Tenglong Shines Electro-Mechanics Co., ltd. which was established in 1998. A professional, leading positioned the first manufacturer of gasoline engine, generator, water pump, tiller and other agricultural machineries in Chongqing, China. With more than 14 years manufacturing experience in general power industry, rigorous quality control, totally 8 procedures to ensure the quality. Outstanding technical talents and advanced technology win us a good reputation in whole China.
Powerful Engine: single cylinder 4 stroke from 2.5HP to 16HP. Recoil or key start. - 30°low temperature operation, reduce engine
Energetic generator: Single/Dual fuel powered, 100% cooper high quality electricity generated with THD less than 1.5%
Effective water pump: Self priming or centrifugal type, 1 inch to 4 inch for select
Economic tiller/cultivators: Belt or gear transmission, low cost labor saving tools for agricultural
