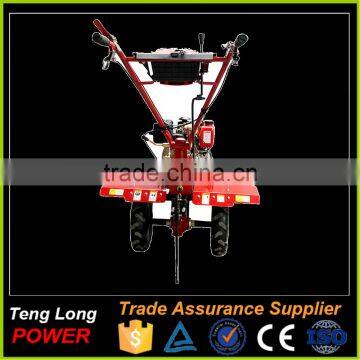

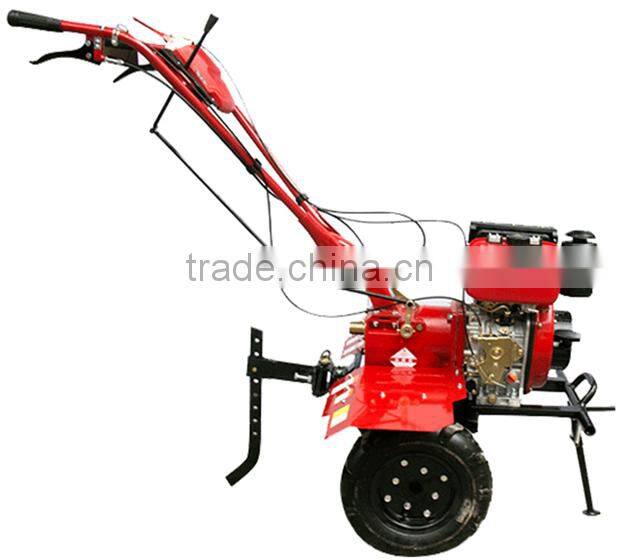

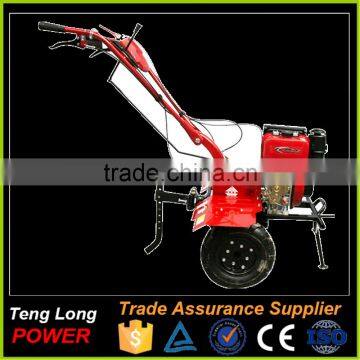

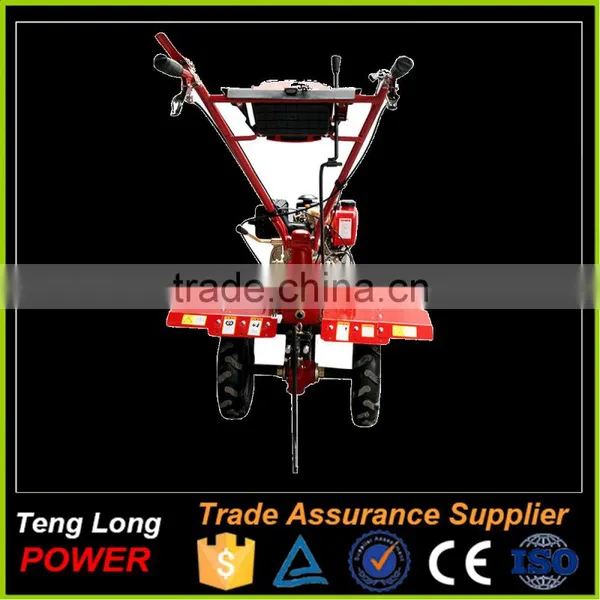

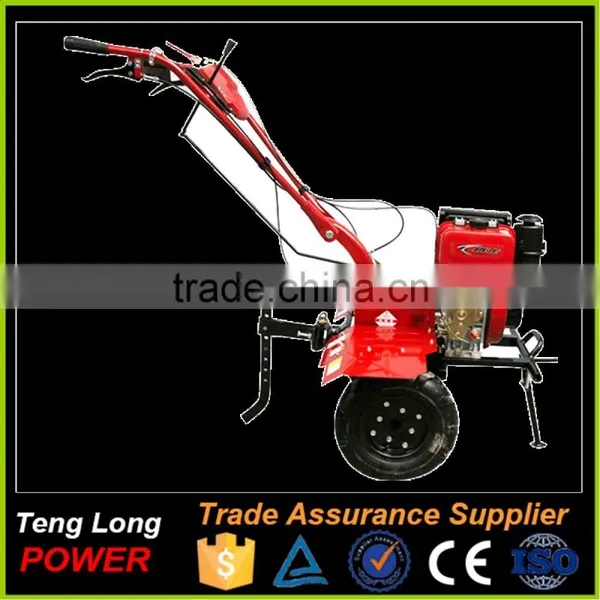

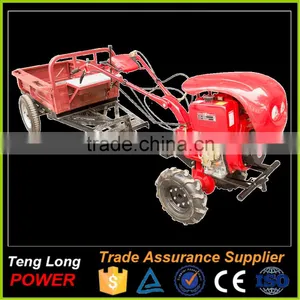

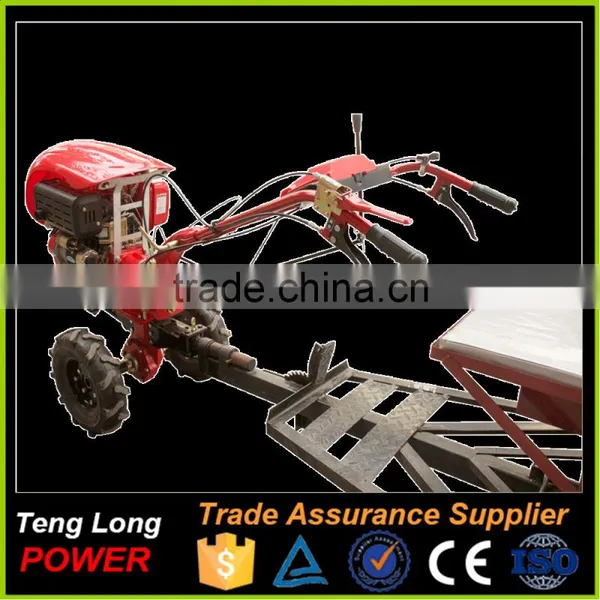

With Headlight Diesel Engine Hand Ploughing Cultivator
Specifications:
Model |
TL1WG3.5-95FC |
Engine |
170F diesel |
Bore*Stroke(mm) |
70*55 |
Max Power(kw/rpm) |
3.8/3600 |
Fuel capacity(L) |
2.5 |
Fuel Type |
diesel |
Engine Oil Capacity(L) |
0.75 |
Gearbox oil capacity(L) |
0.9 |
Fuel consumption(g/kw.h) |
≤290 |
Start system |
Recoil/electric start |
Work width(mm) |
500-1050 |
Work depth(mm) |
≥100 |
Gears |
2,1,0,-1 |
Transmission Type |
gear transmission |
Clutch Type |
Built-in clutch |
Packing size(mm) |
830x450x830 |
Packing Structure |
Inner metal framework + outer hard carton box |
N.W(kg) |
82 |
G.W(kg) |
103 |
Standard configuration |
3pc x 4unit dry field blades;400-8 tires x 2pcs |
Optional configuration |

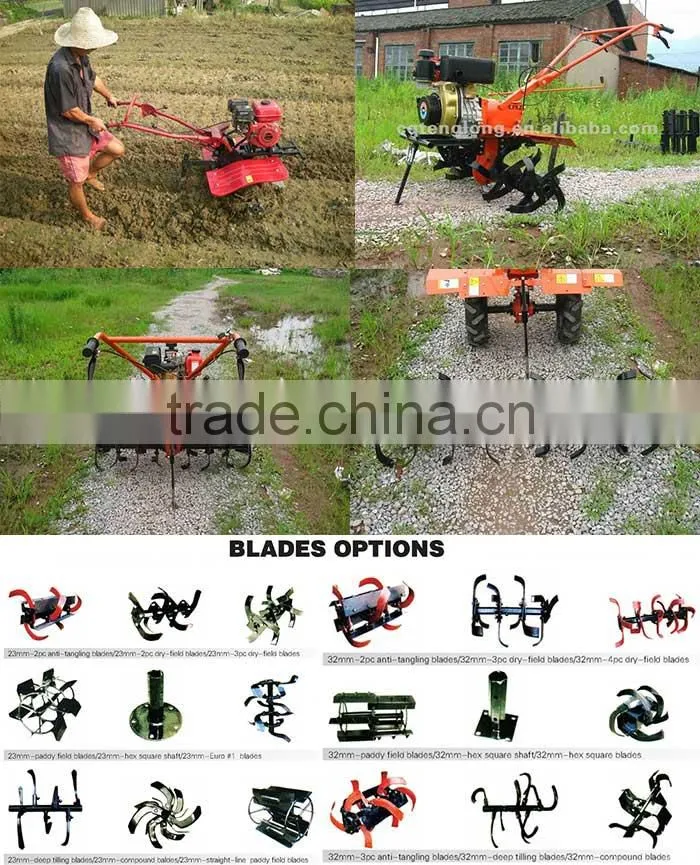

Paddy field blades,anti-tangling blades,ditcher,side plate etc. |
Blades connections/structures |
2+1+1;2+2;3+1+1;3+2 |
Field use spring ploughing cultivator
Belt tranmission or gear transmission
External clutch or built-in cluch
100% parts supply
OEM available
CE certified
Company Spec.
First manufacture in Chongqing for gasoline/kerosene/LGP Engines, Generator sets, Water pumps and Tillers /Cultivators. With more than 10 years experience in general power industry, since 1998.
Packing &Shipping:
Packaging Details: hard carton box with inner bracket
Delivery Detail: Within 15-20 working days after got your deposit or LC .
1. Warranty:
Our all products with 1 year warranty.
2. OEM Acceptable:
We accept your brand and customize packing carton available
In follow orders, we can provide spare parts charge lower price.
3. Samples:
Sample is available for checking our quality.
4. Delivery time:
Either sample order or batch order. Factory need at least 15 days.
Q: what is you deliver time ?
A: Within 30days after got your deposit or LC
Q: How about quality control in your factory?
A: Our company are always paying great attentions to quality controlling from the beginning to the end.
Q: Where is your loading port?
A: Chongqing,CHINA .
Q: What are your payment term?
A: 30% deposit and balance T/T against by the copy of B/L or L/C at sight.
