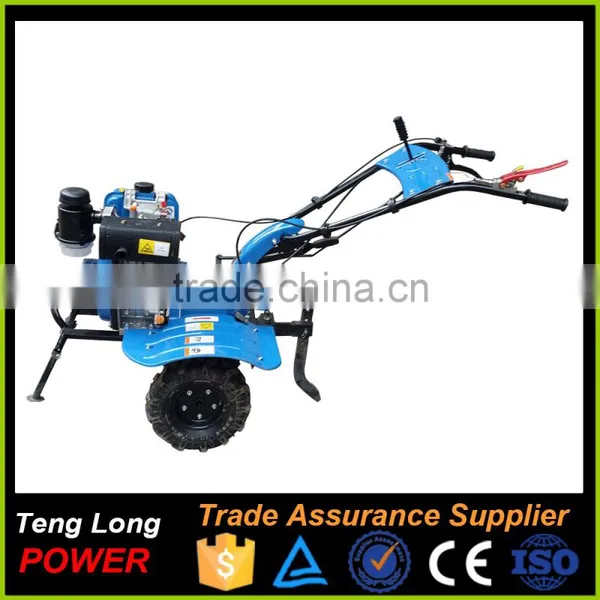

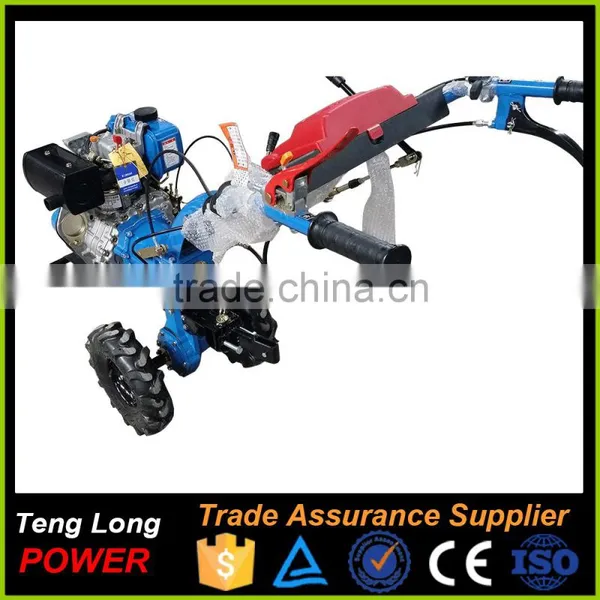

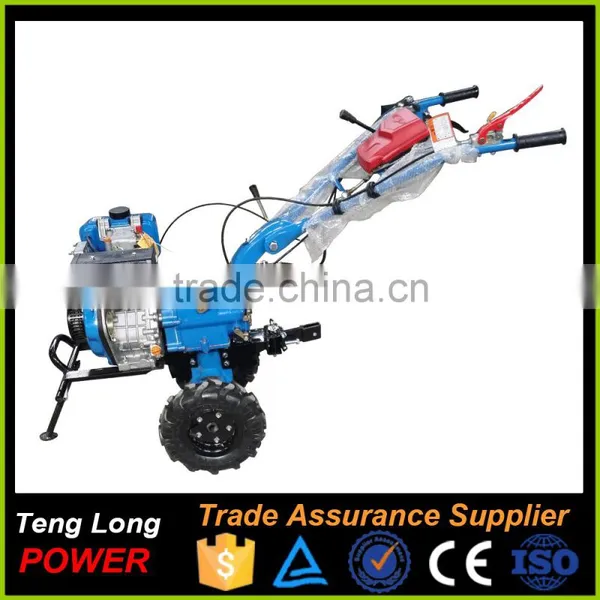

Gear Transmission Diesel Fuel Power Engine Rotary Tiller Cultivators With Plough For Sale
Product Spec.(
| Model | TL1WG4.0-105FC |
| Engine | 178F Diesel |
| Bore*Stroke(mm) | 78*62 |
| Max Power(kw/rpm) | 4.4/3600 |
| Fuel capacity(L) | 3.5 |
| Fuel Type | Diesel |
| Engine Oil Capacity(L) | 1.1 |
| Gearbox oil capacity(L) | 2.5 |
| Fuel consumption(g/kw.h) | ≤285 |
| Start system | Recoil or Electric start |
| Work width(mm) | 1050 |
| Work width(mm) | ≥100 |
| Gears | 2,1,0,(-1) |
| Transmission Type | Gear transmission |
| Clutch Type | Bult in clutch |
| Packing size(mm) | 1000*530*800 |
| Packing Structure | Hard carton box+inner metal framework |
| N.W(kg) | 102 |
| G.W(kg) | 124 |
| Standard configuration | 32mm 3pcs 4 unit dry-field blades(24pcs 3+1 type),400-8 tire |
| Optional configuration | paddy field blades anty-tangling blades,ditcher,side plate etc. |
| Blades connections/structures | 2+1+1;2+2;3+1+1;3+2 |
More models choice
| MODEL | TL1WG3.8-50FQ | TL500GY | TL1WG3.8-95FQ | TL1WG4.0-105FQ | ||||||||||
| ENGINE | 168F-1/P, 6.5HP | 170F/P,7HP | 170F/P, 7.0HP | 170F/P, 7.0HP | ||||||||||
| BORE X STROKE | 68 x 54 | 70x56 | 70x56 | 70x56 | ||||||||||
| MAX POWER (Kw/rpm) | 4.8/3600 | 5.15/3600 | 5.15/3600 | 5.15/3600 | ||||||||||
| FUEL CAPACITY (L) | 3.6 or 4.5 | 4.5 | 4.5 | 4.5 | ||||||||||
| FUEL TYPE | Gasoline | Gasoline | Gasoline | Gasoline | ||||||||||
| ENGINE OIL CAPACITY (L) | 0.6 | 0.6 | 0.6 | 0.6 | ||||||||||
| GEARBOX OIL CAPACITY (L) | 0.95 | 0.95 | 0.95 | 2.5 | ||||||||||
| FUEL CONSUMPTION (G/Kw.h) | ≤340 | ≤340 | ≤340 | ≤340 | ||||||||||
| START SYSTEM | Recoil Start | Recoil Start | Recoil Start | Recoil Start | ||||||||||
| WORK WIDTH (mm) | 500-1050 | 500-700 | 900-1050 | 900-1050 | ||||||||||
| WORK DEPTH (mm) | ≥100 | ≥100 | ≥100 | ≥100 | ||||||||||
| GEARS | 2, 1, 0, (-1) | 2, 1, 0, (-1) | 2, 1, 0, (-1) | 2, 1, 0, -1 | ||||||||||
| TRANSMISSION TYPE | Belt Transmission | Belt Transmission | Belt Transmission | Belt Transmission | ||||||||||
| CLUTCH | External Tentioned Clutch | Built-in Clutch | Built-in Clutch | Built-in Clutch | ||||||||||
| PACKING SIZE (mm) | 870 x 440 x 780 | 870 x 440 x 780 | 870 x 440 x 780 | 1000x530x800 | ||||||||||
| PACKING | Hard carton box + inner metal framework | |||||||||||||
| N.W.(kg) | 56 | 70 | 73 | 84 | ||||||||||
| W.W.(kg) | 71 | 91 | 92 | 105 | ||||||||||
| STANDARD CONFIGURATION | 23mm 3pc x 4unit dry-field blades (24pcs 3+1 type), 400-8 tire | 23mm 4pc x 3unit dry-field blades (24pcs 2+1 type), 350-4 tire | 23mm 3pc x 4unit dry-field blades (24pcs 3+1 type), 400-8 tire | 23mm 3pc x 4unit dry-field blades (24pcs 3+1 type), 400-8 tire | ||||||||||
| OPTIONAL CONFIG. | Paddy field blades, anty-tangling blades, ditcher, side plate etc. | |||||||||||||
| BLADES CONNECTIONS | 2+1+1;2+2;3+1+1;3+2 | |||||||||||||
Chongqing Tenglong Shines Electro-Mechanics Co., ltd. which was established in 1998. A professional, leading positioned the first manufacturer of gasoline engine, generator, water pump, tiller and other agricultural machineries in Chongqing, China. With more than 14 years manufacturing experience in general power industry, rigorous quality control, totally 8 procedures to ensure the quality. Outstanding technical talents and advanced technology win us a good reputation in whole China.
Powerful Engine: single cylinder 4 stroke from 2.5HP to 16HP. Recoil or key start. - 30°low temperature operation, reduce engine
Energetic generator: Single/Dual fuel powered, 100% cooper high quality electricity generated with THD less than 1.5%
Effective water pump: Self priming or centrifugal type, 1 inch to 4 inch for select
Economic tiller/cultivators: Belt or gear transmission, low cost labor saving tools for agricultural
Power Tiller Cultivator Process
1 set in a polybag, standard thicken strong carton box
Customer designed packing method is available
A: Within 30days after got your deposit or LC
Q: Is it all right to make customer brand name?
A: You can OEM brand name if the quantity above the MOQ.
Q: Where is your loading port?
A: Chongqing,CHINA .
Q: What are your payment term?
A: 30% deposit and balance T/T against by the copy of B/L or L/C at sight.
Come on! Don't be shy. Feel free to contact me .
Click " Send " below!
