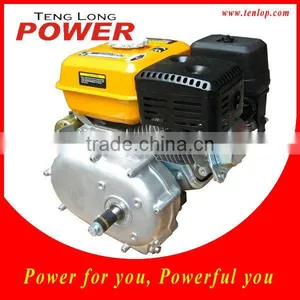

Centrifugal Clutch Engine 4 stroke OHV

Specifications

1. Reted 6.5hp, 1800rpm
2. Centrifugal Clutch Engine
3. Canton Fair Booth: 4.1-F38
4. Low Fuel Consumption
5.No Retail



  Centrifugal Clutch Engine 4 stroke OHV
1.  Product Spec .

MODELS	TL168F(1/2)P Wet Clutch Engine
Types	Forced Air-Cooling, 4 Strokes, Single Cylinder OHV
Displacement (cc)	196
B x S (mm*mm)	68x54
Engine Speed (rpm)	1800
Max. Output (HP)	6.5
Rated Output (HP)	5.2
Mx. Torque (N.m/rpm)	10.8/2600
Starting System	Recoil
Ignition System	Non-Contact Transistorized Magneto Ignition System
Fuel Capacity (L)	3.6
Oil Capacity (L)	0.6
Packing (LxWxH) (mm)	400x345x380
Net Weight (Kg)	18
20’GP/40’GP/40HQ	550/1120/1120

Detail concern TL
152F/P Side Valve Gasoline Engine Gold Supplier Tenglong Power Group


More models choice

MODEL			TL168F/P (5.5HP)			TL168F-1/P (6.5HP)			TL170F/P (7.0HP)			TL173F/P (8.0HP)
TYPE			4 STROKE, 1 CYLINDER, FORCED AIR-COOLING, OHV
DISPLACEMENT (CC)			163			196			215			243
BORE X STROKE mm)			68x45			68x54			70 x 56			73x58
SPEED (rpm)			3600			3600			3600			3600
MAX POWER (HP)			5.5			6.5			7			8
RATED POWER (HP)			4.6			5.2			5.6			7.2
MAX TORQUE (N.m/rpm)			8.8/2600			10.8/2600			12/2600			16/2600
STARTING SYSTEM			RECOIL OR KEY			RECOIL OR KEY			RECOIL OR KEY			RECOIL OR KEY
IGNITION SYSTEM			Non-Contact Transistorized Magneto Ignition System
FUEL CAPACITY (L)			3.6			3.6			3.6			6
OIL CAPACITY(L)			0.6			0.6			0.6			1.1
FUEL CONSUMPTION			≤395			≤395			≤395			≤374
PACKING (LxWxH) (mm)			400x345x380			400x345x380			400x345x380			475x450x505
N.W. (Kg)			16			17			18			23

Flow chart

2. Company Information.



Chongqing Tenglong Shines Electro-Mechanics Co., ltd. which was established in 1998. A professional, leading positioned the first manufacturer of gasoline engine, generator, water pump, tiller and other agricultural machineries in Chongqing, China. With more than 14 years manufacturing experience in general power industry, rigorous quality control, totally 8 procedures to ensure the quality. Outstanding technical talents and advanced technology win us a good reputation in whole China.

Powerful Engine: single cylinder 4 stroke from 2.5HP to 16HP. Recoil or key start. - 30°low temperature operation, reduce engine

Energetic generator:  Single/Dual fuel powered, 100% cooper high quality electricity generated with THD less than 1.5%

Effective water pump: Self priming or centrifugal type, 1 inch to 4 inch for select

Economic tiller/cultivators: Belt or gear transmission, low cost labor saving tools for agricultural

Certification:

Trade Show & Business Negotiation:

 Shipping:



 1 set in a polybag, standard carton box





   Customer designed packing method available
