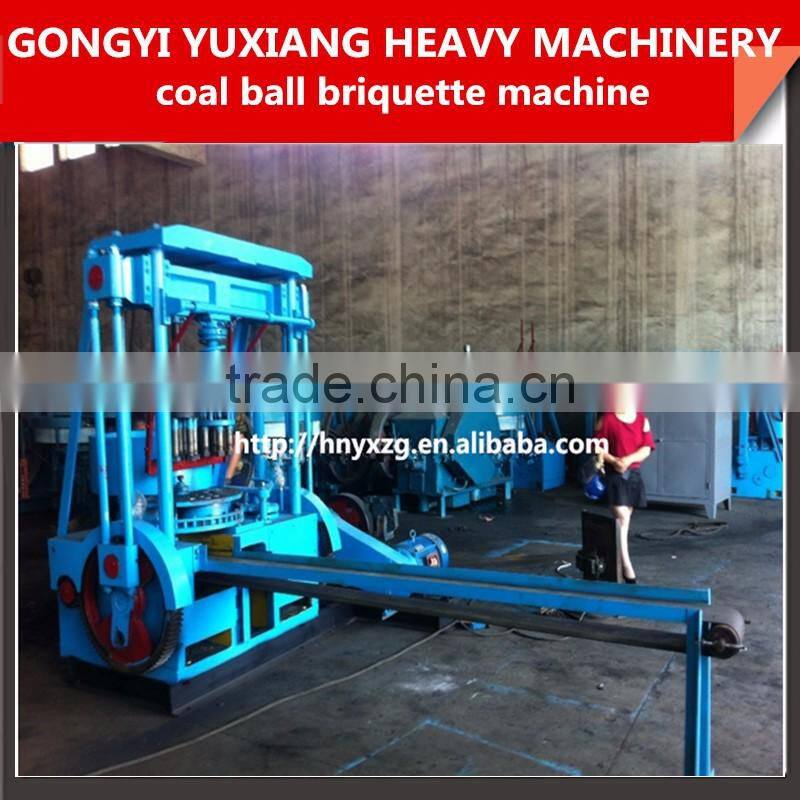

Help CenterHigh Capacity Coal Briquette Machine for BBQ
Related Products
-
Gold Supplier Supply Peanut Oil Press Machine With Great After ServiceUS$ 1,625 - 3,500MOQ: 1 Set -
1200A High Efficiency Mining Pan Mill for Processing Gold OreUS$ 4,000 - 6,000MOQ: 1 Set
-
Gold Wet Pan Mill Gold Grinding Machine for Edge Runner Mill in ChinaUS$ 4,000 - 6,000MOQ: 1 Set
-
China High Efficiency Wet Pan Mill for Gpld Grinding Machine in SudanUS$ 4,000 - 6,000MOQ: 1 Set
-
1200A Hot Selling Wheel Rolling Type Roll Gold Wet Pan for Processing Gold OreUS$ 4,000 - 6,000MOQ: 1 Set
introduction of honeycomb coal briquette machine
According to different kinds raw material, honeycomb coal briquette machine has been widely applied in China for over 40 years. It is used to punch coal powder, charcoal powder into coal/charcoal briquettes whose dimension is between 45-300mm, and used in stove for cooking, bbq, warming, etc. The final coal briquette are high density, high hardness. Honeycomb coal briquette machine's final coal briquette or charcoal briquettes are widely used in stove for cooking in China.

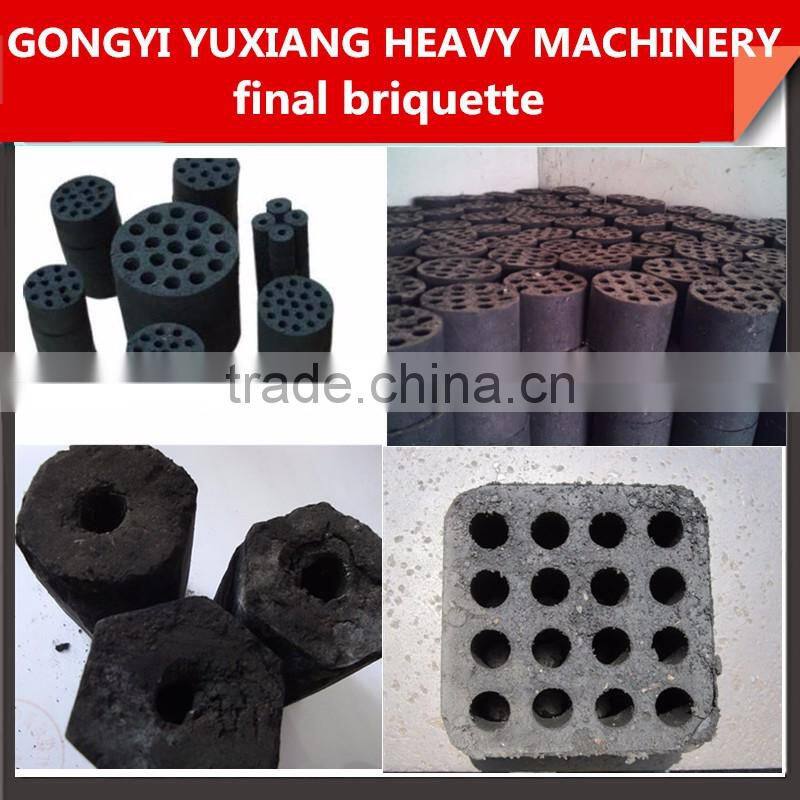

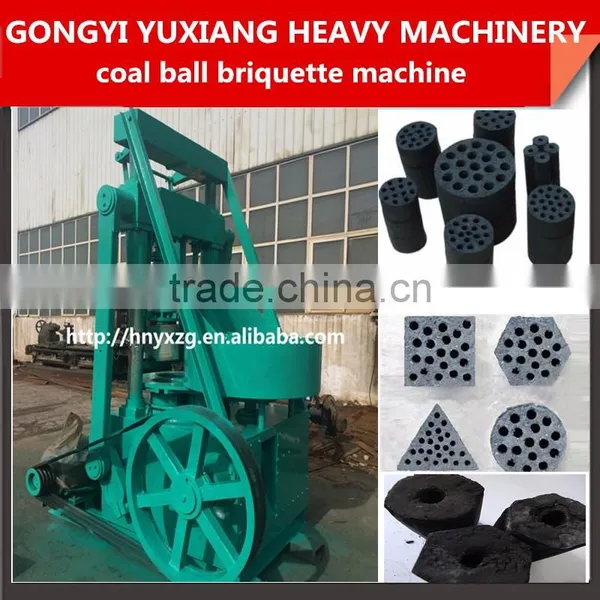

Different shapes coal briquettes made by honeycomb coal briquette machine:
Coal briquettes' shape: Round shape coal briquette with several holes(Diameter between 140-300
mm) Cylinder shape with a hole( diameter 50mm with a 15mm hole is the most popular size) Plum-
blossom shape with hole, square shape with several holes( the length are customized), hexagonal
shape with a hole, rectangle shape, etc.
Coal briquettes' size: The diameter or length is 45mm-300mm.
Coal briquettes' density: The density of coal briquettes can be adjusted according your demands by
changing the upper punching part.
Coal briquettes' burning time: The burning time is about 4-5 hours per small piece.
Coal briquettes made by honeycomb coal briquette machine/coal dust briquette
making machine:

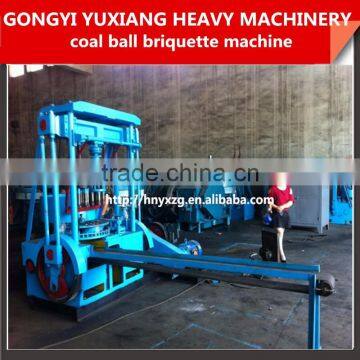

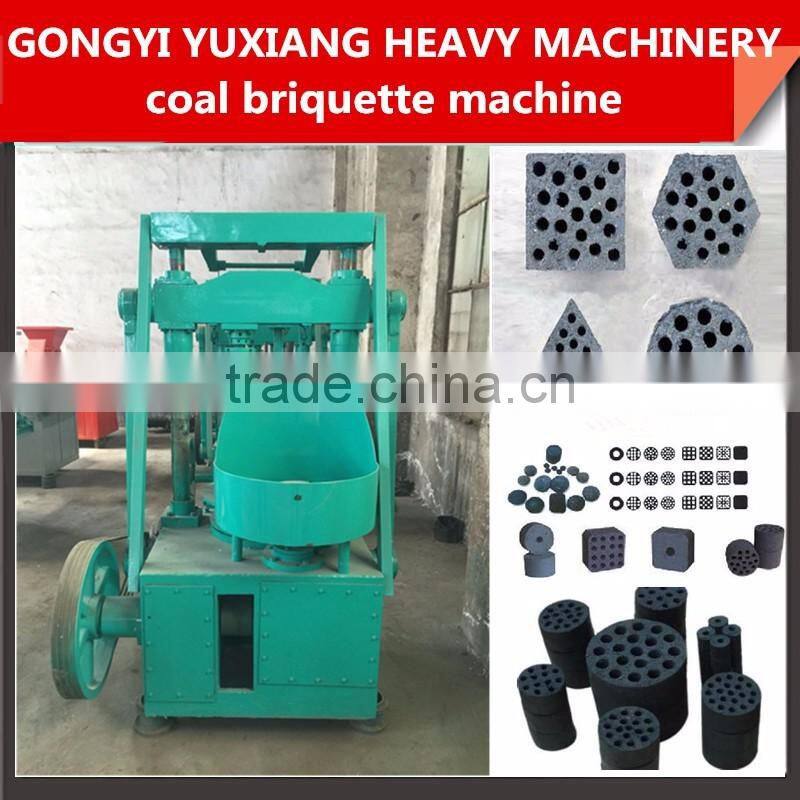

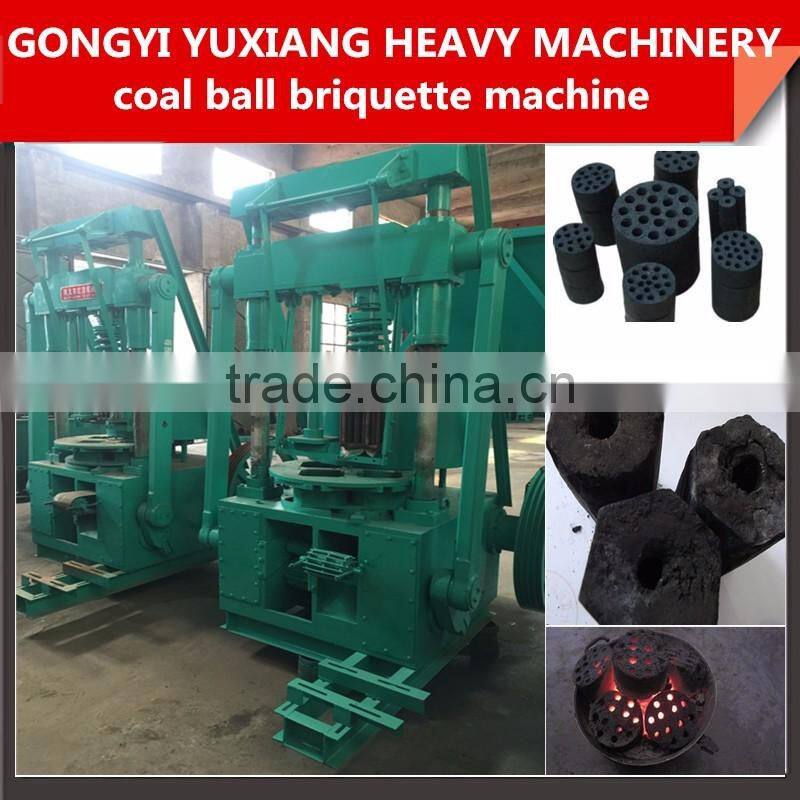

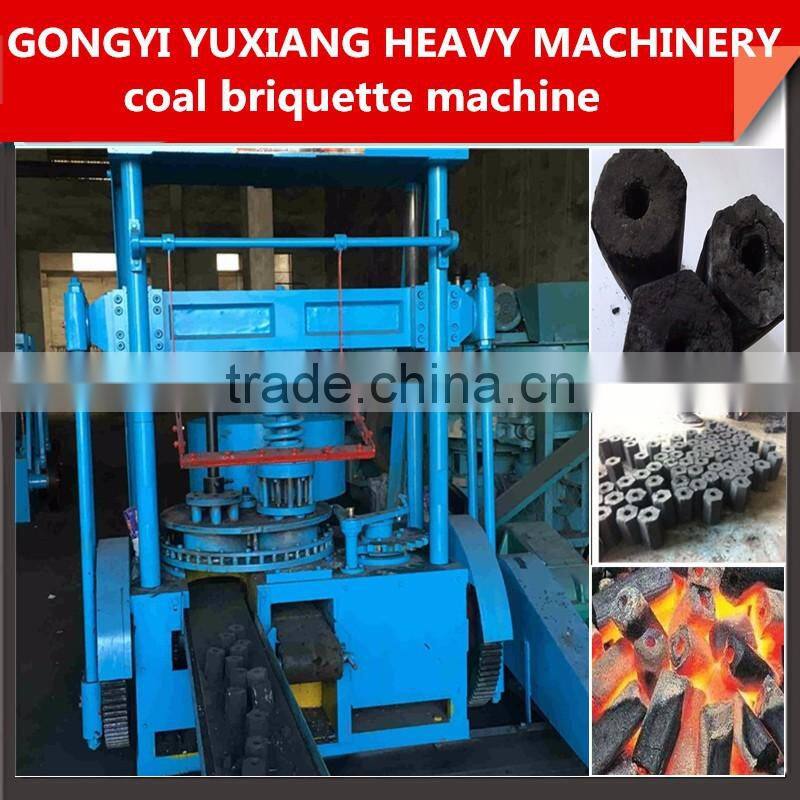

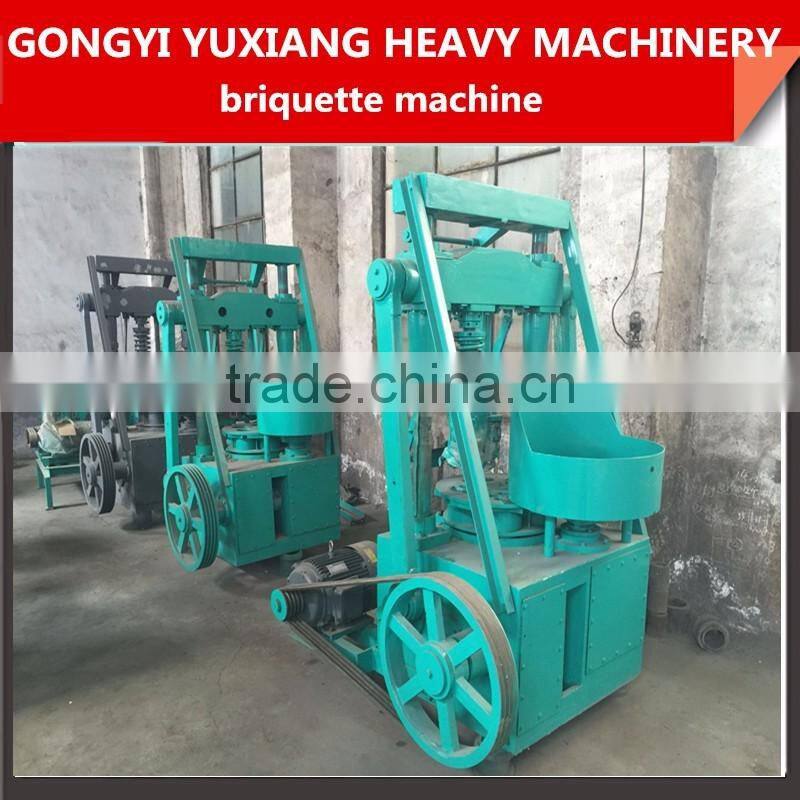

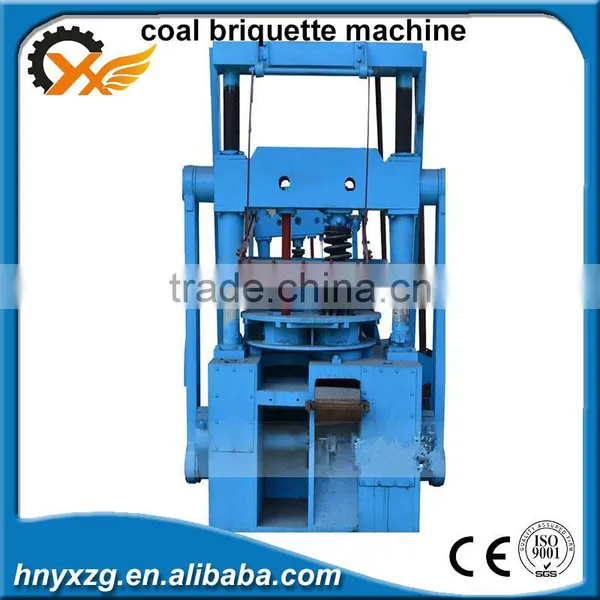

2. Structure of the honeycomb briquette machine
Our honeycomb briquette machine is divided into five parts: main body, transmission part, feeding part, punching part, and transport part. And every part works together in order to provide a stable and reliable performance.
1. Body parts: Consits of platen, engine base, forming the skeleton entity.
2. Driving parts: Consists of motor, belt pulley, gear, transmission shaft, etc. The motor make the gear shaft rotating through belt pulley, and through tow gears pass to axis, and then by a pair of bevel gear and the axis of rotation to drive the dial, and then pass to the four panel movement.
3. Feeding parts: Consists of spindle, hopper, agitator, it will strike by axial gear mixer, beaten coal and load mode barrel.
4. The punching parts: It is mainly consists of four slide, sliding beam, punch, punch holder,
punch pin, activity pressure plate, end of activity mode, spring, etc. When the machine driven by two gears, through the pull rod drives the sliding beam, make the punch down, activities set up, the spring become tight, press the coal powder into coal briquettes, and punch the coal briquettes onto the conveyor, for conveying out, the density of coal briquettes, is decided by the spring to tightly press activity plate.

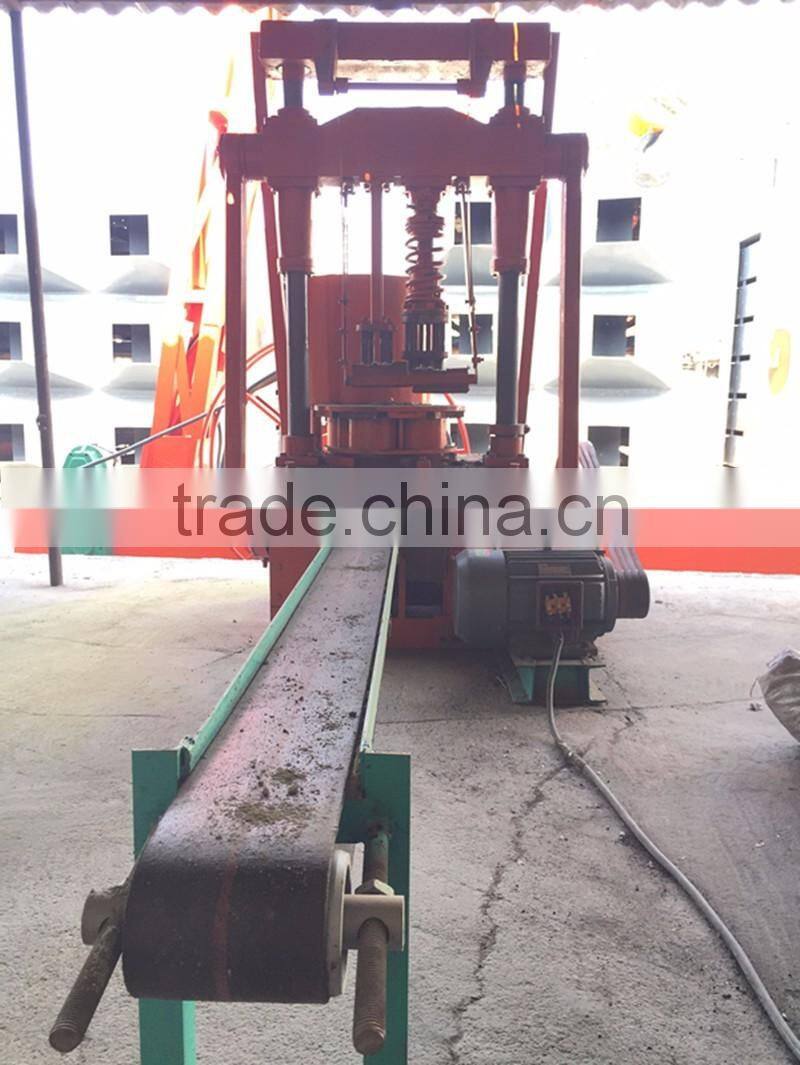

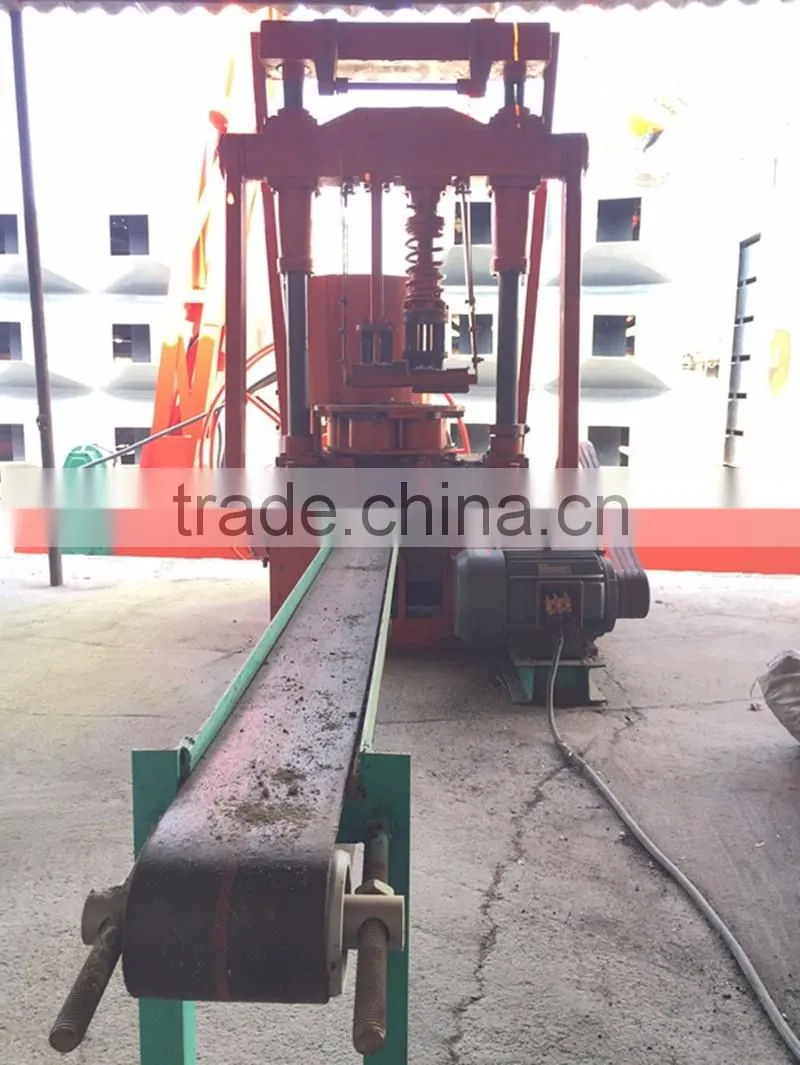

5. Transport part: Consists of transmission rack, belt pulley, support, conveying belt, etc. The conveyor belt random rotation the shaped coal briquettes out off the body, the adjustable screw on the conveyor rack can adjust the tightness.

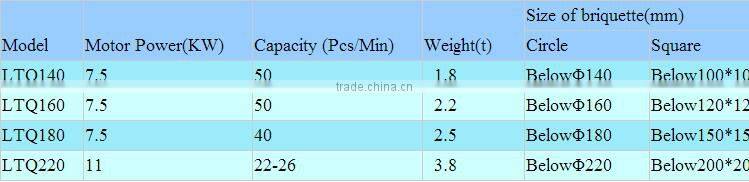

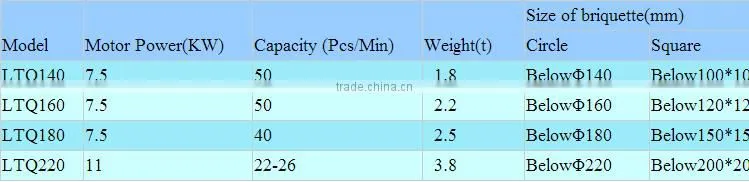

Main parameter of honeycomb coal briquette machine
The Pre-sale service is free, begins with analyzing and planning of your particular needs. Whether you need a single machine, a multi-stage process? Or a production line of complete plant.
We can guide you to install the products or directly send our engineer in your country for the installation.
In the after sales service,We provide one year warranty for all of our products and six month for the wear parts. Spare and wear parts are always close to you.
Gongyi city Yuxiang Heavy Machinery Co,Ltd has established more than 20 years, which is a professional manufacturer and exporter that is concerned with R&D, production, sales and service. In the past 20 years, our mainly product Mining series equipment, Charcoal briquette machine series, Carbonization furnace equipment, Dryer series equipment, Grinding machine series,feed and fuel pellet making machine ,oil press machine etc. We are located in Gongyi city, Henan, China.
