Plant direct sale 6YL-130 150 cold oil press machine production line
Low investment 6YL-130 150 cold oil press machine production line
here goes you can see the oil press machine viedo :https://youtu.be/lrquQJdnRUc

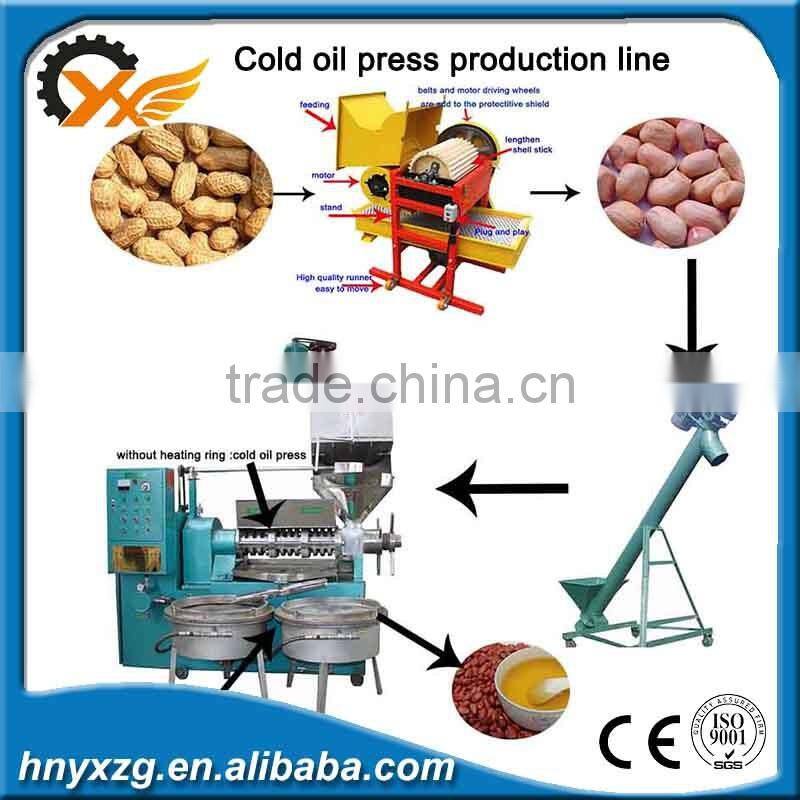

the process:the material→feeding→press→filter→pure oil
Yuxiang 6YL-130 150 From the cold pressing machine suitable for vegetable oil. The utility model is suitable for the oil pressing (Leng Zha)
at normal temperature without steam frying, and can also be suitable for low temperature pressing of oil.
Especially suitable for vegetable oil or peeling shell after the low temperature and normal temperature pressing, such as soybean,
peanut, sunflower seed, tea seed, rapeseed kernel, corn germ and special oil flax seed, perilla seed, amaranth seeds, month rubber seed,
almond and pepper seeds such as low temperature or normal temperature crushing.
The material of cold oil press machine production line
The peanut sheller machine of cold oil press production line
|
After the peanut sheller machine is operated normally, the peanut is put into the hopper quantitatively, evenly and continuously, and the peanut shell is broken under the repeated impact, friction and impact of the rotor. Peanut and peanut shell broken in the rotating rotor under pressure and blow, screen through certain pore size peanut shell, grain by blow force rotating fan, peanut shell weight the light was blown out of the machine body, through the screening of peanut shaker to cleaning purpose. More details>>> |
Technical Parameter
| Type | Power (kw) | Shelling rate | Cleaning rate | Break rate | Capacity (kg/h) | Dimension(mm) |
| YX-200 | 1.5 | 700*900 | 3-4-0.75kw | less than 0.3% | 500-700 | 1100*700*1400 |
| YX-300 | 3330*400 | 830*1300 | 3-4-1.5kw | less than 0.3% | 700-900 | 1100*1200*1400 |
The spiral feeding machine of the cold oil press machine
|
Automatic Spiral feeding machine is mainly used to transport the fried material to the Auxiliary machine of oil press machine,Spiral material grade stainless steel manufacturing, clean and sanitary, easy to clean and so on More details>>> |
|
Technical parameter
|
Inclined spiral feeding machine (2/2.6/3 m) Motor:1.1kw Diameter of circular pipe:140mm Capacity:500kg/h Weight:50/60/70kg |
Vertical spiral feeding machine (2/2.5/2.9) Motor:2.2kw Diameter of circular pipe:140mm Capacity:500kg/h Weight:35/75/85kg |

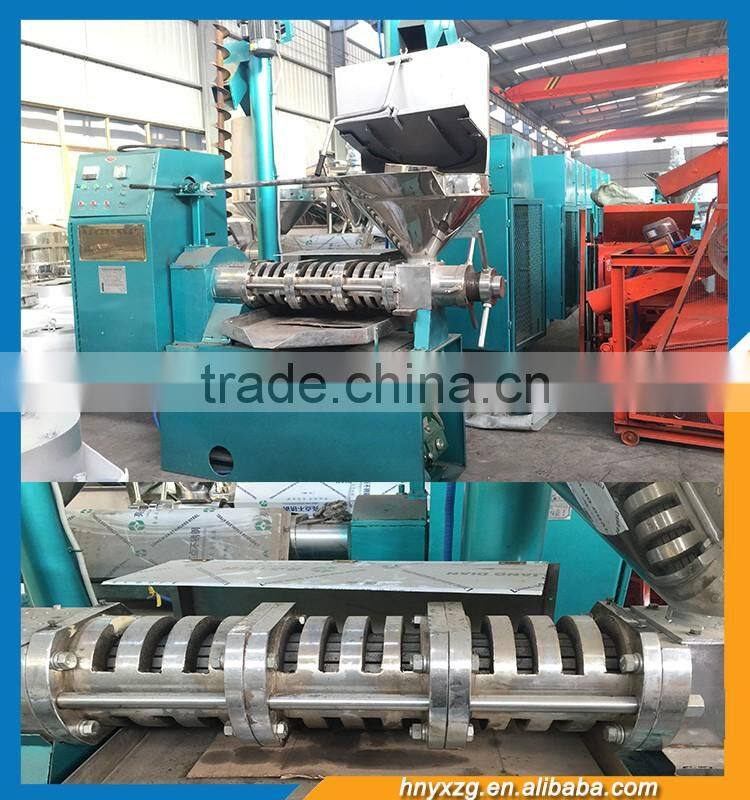

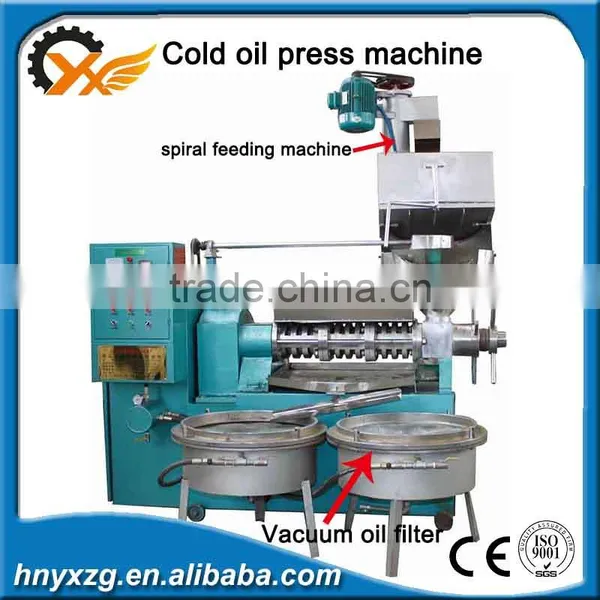

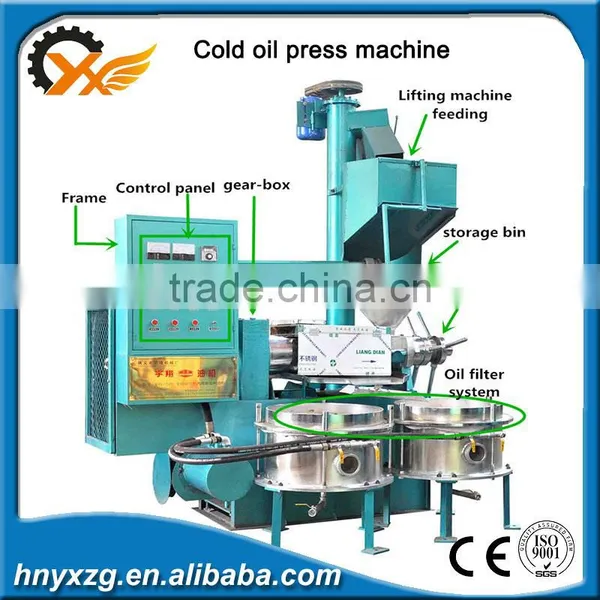

the oil press machine of the Cold oil press production line
|
Cold oil press machine 6YL-130150 type cold pressing machine is suitable for all kinds of oil pressing process, no need to be steamed, no press, direct press. Cancel the cooking process, save manpower and electricity consumption. The cake is well formed, the residual oil is low, the permeability is good, the leaching is no longer difficult, the color of the hair oil is shallow, the peroxide value is low, and the refining rate is improved. More details>>> |
| The machine operation and hot press press greatly different, circular feeding system of type 130150 cold pressing machine adopts the material with the screw auger design, more convenient for the later two times press the sheet into the material crushing kcal in trouble, at the same time above the feed hopper is installed with forced feeding screw design, make more smooth feeding materials is flow evenly, easy to control, easy to operate. | |
Parameter
| Type | Voltage(v) | vacuum pump power(kw) |
Main motor(kw) | Thought put(kg/h) | Whole weight(kg) |
Dimension (mm) |
| 6YL-130 | 380 | 37 | 22 | 180-260 | 1480 | 2130*1050*2850 |
| 6YL-150 | 380 | 38 | 26 | 200-380 | 1680 | 2430*1250*2850 |

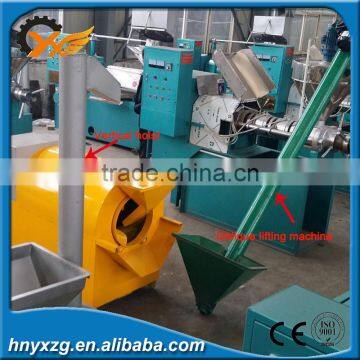

our workshop of hot oil press machine production line
|
|

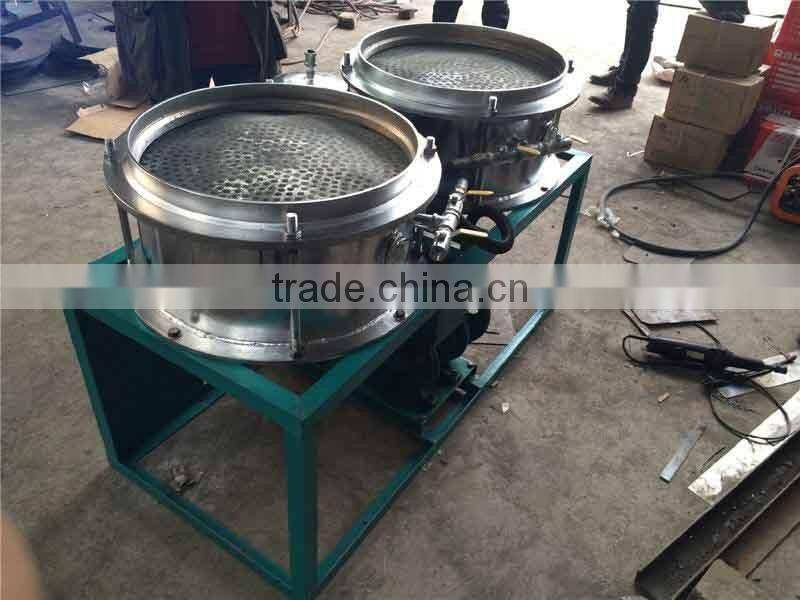

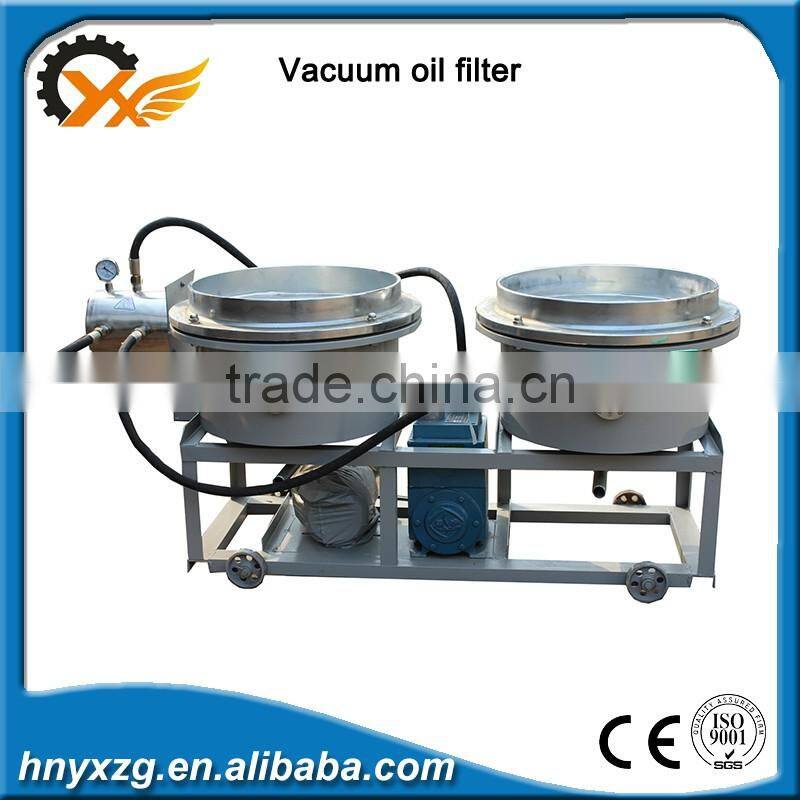

the Vacuum oil filter machine of the hot oil press production line
| The vacuum oil filter is designed according to the different boiling points of water and oil, which is composed of a vacuum heating tank, a filter, a condenser, a primary filter, a water tank, a vacuum pump, an oil pump and an electric cabinet. Vacuum pump to vacuum tank air to form a vacuum, outside the oil under the influence of the atmospheric pressure through the entrance pipe into the primary filter, remove larger particles, and then into the heating tank, after heating the 40~75 C oil through the automatic oil float valve, the valve is automatically controlled in a vacuum tank the amount of oil import balance. |
|
the final product of hot oil press machine production line
|
|
Advantage of Cold oil press machine production line
Nutrient retention of the most complete, the cold pressed out of oil because of no damage, generally do not need to add additives can keep a long time,
the oil reserves of natural flavor and color, the complete preservation of the biologically active substances in the oil, sesame oil and peanut oil flavor,
and must get through the hot pressing process to. Cold pressing material must be carefully selected
disadvantage:the oil taste is not fragrant,Low smoke point, water content is not stable, is not conducive to long-term storage.
Customer visit and packing of cold oil press machine production line
|
|
Our Service
Pre-sale services:
Act as a good adviser and assistant of clients
Select equipment model;
Design and manufacture products according to clients’ special requirement;
Train technical personnel for clients;
Services during the sale:
Respect clients;considering every aspect and details for our customers
Check products ahead of delivery;
Keep costumers informed about the shipping;
After-sale services:
We promise excellent after-sale service!
Assist client to prepare for the first construction scheme;
Install and debug the equipment;
main the first-line operators on site;
Take initiative to eliminate the troubles rapidly at site;
Provide maintenance for big items;
