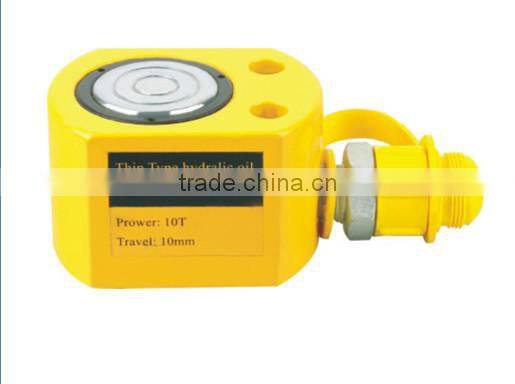

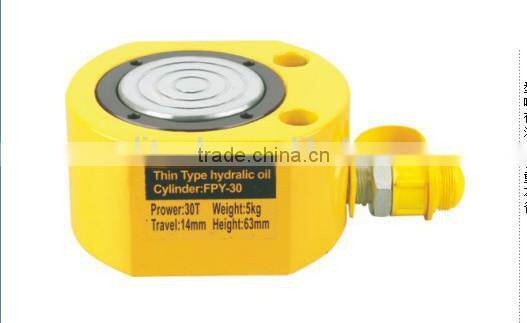

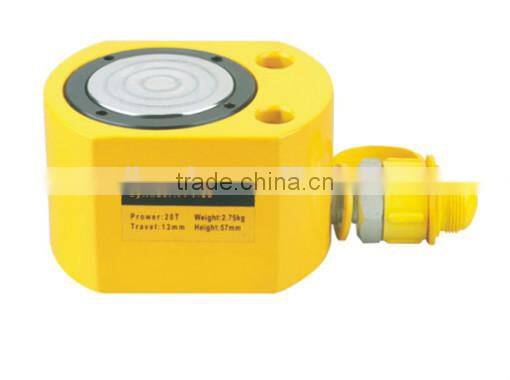

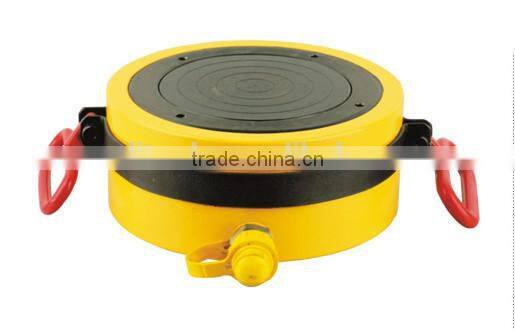

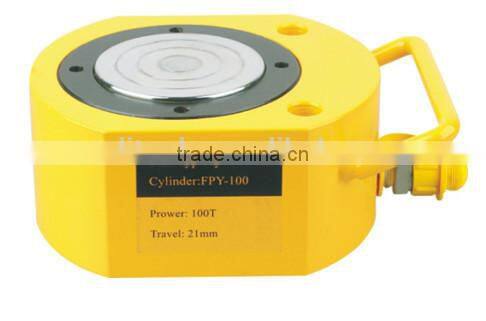

FPY series hydraulic cylinders used in car lift
Features:
1. Hydraulic hydraulic jack- Low height is suit for working in narrowness; Short stroke can broke up times and times.
2. The surface of plunger is finished with chrome plate to protect the using of longevity of the product;
3. Plunger has the function of retracting automatically
ITEM NO |
FPY-05 |
FPY-10 |
FPY-20 |
FPY-30 |
FPY-50 |
FPY-100 |
FPY-200 |
Tonnage |
5T |
10T |
20T |
30T |
50T |
100T |
200T |
Work Travel |
7mm |
10mm |
12mm |
14mm |
18mm |
21mm |
22mm |
Cylinder Effective area |
9.61cm² |
11.3cm² |
22cm² |
31.1cm² |
56.7cm² |
95cm² |
201cm² |
Collapsed Height |
41mm |
52mm |
58mm |
64mm |
72mm |
88mm |
102mm |
Extended height |
48mm |
62mm |
70mm |
82mm |
90mm |
109mm |
124mm |
Outside dia(mm) |
64x48 |
81x56 |
100x77 |
115x95 |
138x115 |
185x160 |
275x245 |
CylinderBore die |
35mm |
43mm |
60mm |
75mm |
95mm |
130mm |
195mm |
Weight |
0.7KG |
1.50KG |
2.7KG |
4.5KG |
7.0KG |
15.7KG |
42.7KG |
