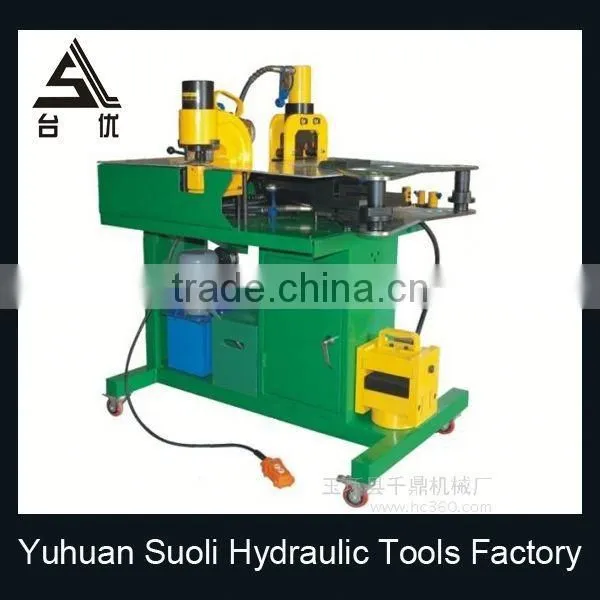

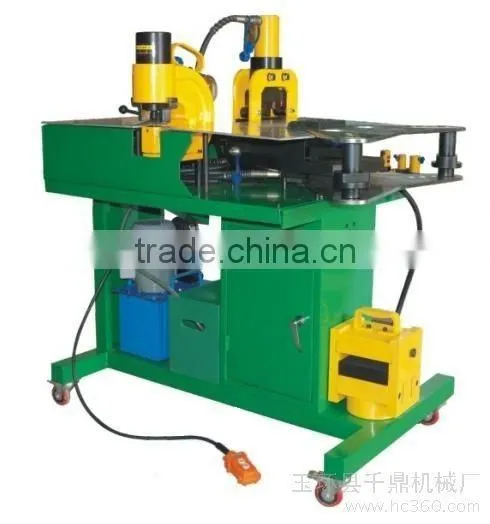

Copper And Aluminum Hydraulic Busbar Processing Machine VHB-501.
Feature:
1. This machine is the light of foreigh advanced products, combined with the actual situation in China, in order to improve work efficiency.
2. To save hours of work, while the design and manufacture
3. Suitable for transmission and distribution in a large workshop and site work, construction, and power distribution cabinets and switch cabinets, etc
4. The use of electrical applinces factory.
5. The machine is equipped with: bending, cutting, punching functionality
6. Optional foot switch or wire switch, easy to operate
Functions | four functions,cutting(CWC-150),punching(CH-70),bending(PLW-125) and embossing(HYB-150) |
Dimension | 850mm(L)x750mm(W)x1100mm(H) |
Input voltage | Single phase 50Hz,220V(we can meet your need) |
Rating oil pressure | 700kg/cm2 |
Cutting Force | 25T |
Cutting Range | 150mm(Width)X12mm(Thickness) |
Punching Force | 35T |
Punching capacity | Φ20.5x12mm |
Punching Dies | Impact( Φ7, 9, Φ10.5, Φ13.8, Φ17, Φ20.5) |
Bending Force | 25T |
Bending caoacity | 150x12mm |
Embossing capacity | 150x12.5mm |
Distance from hole to sheet side | 110mm |
Weight | 275kg |
