30 years Widely Used Manual Briquette Machine/manual Ball Press Machine

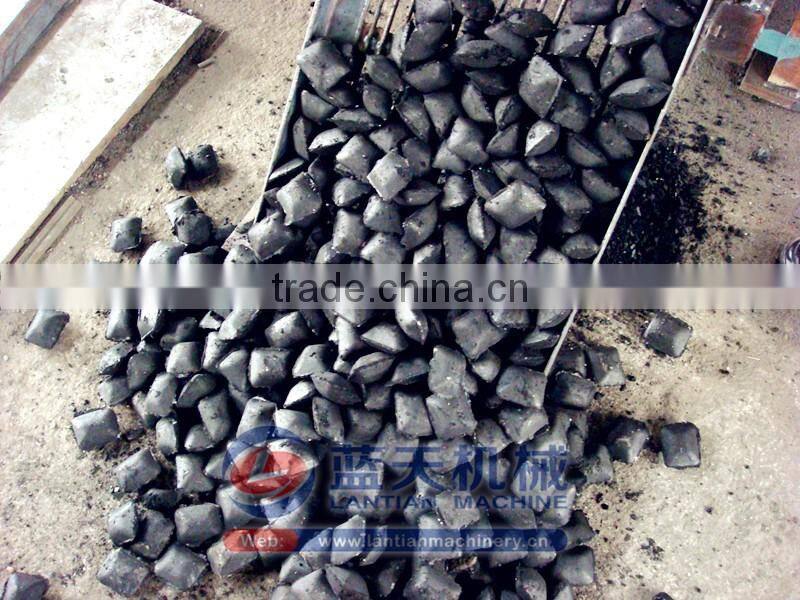

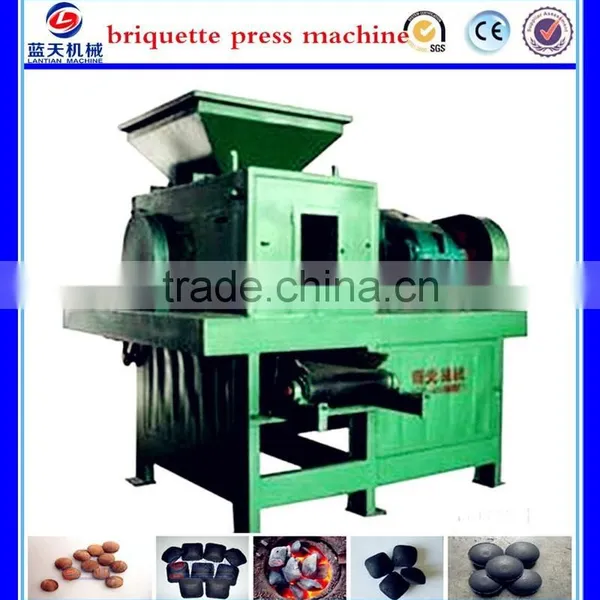

The final product show:
Note: the briquettes shape and size are defined by customer.

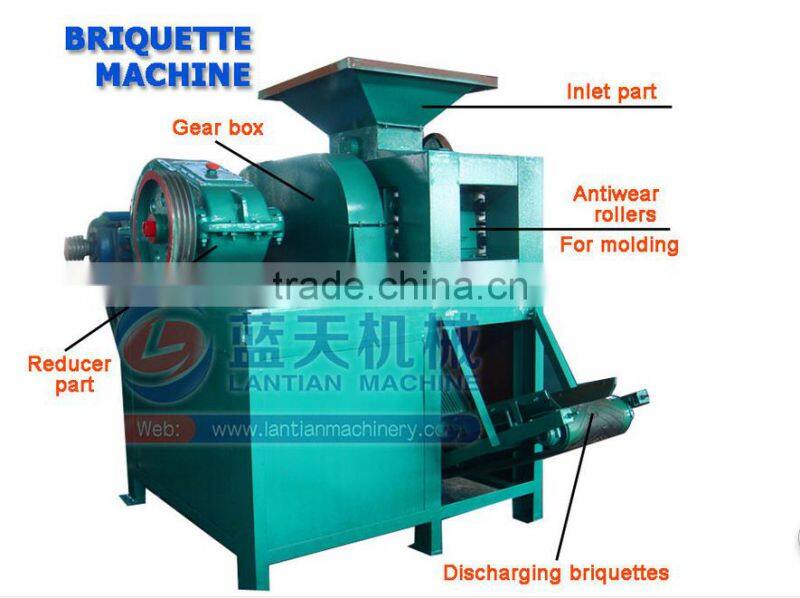

1.Brief Introduction of Manual Ball Press Machine :
Briquetting machine is an ideal mechanical equipment designed for processing powdery materials, such as nonferrous metal powder and mineral powders. After being made into briquettes, these wasted powders can be reused in various industries, hence increasing additional value of mineral resources. Ball briquette machine is proud of that the finished briquettes come with high intensity, great convenience for transportation and various shapes. Custom-made shape is also available.
2.Applicable materials of Manual Ball Press Machine :
(1). Coal/coke/charcoal powder.
(2).Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.
(3).Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc

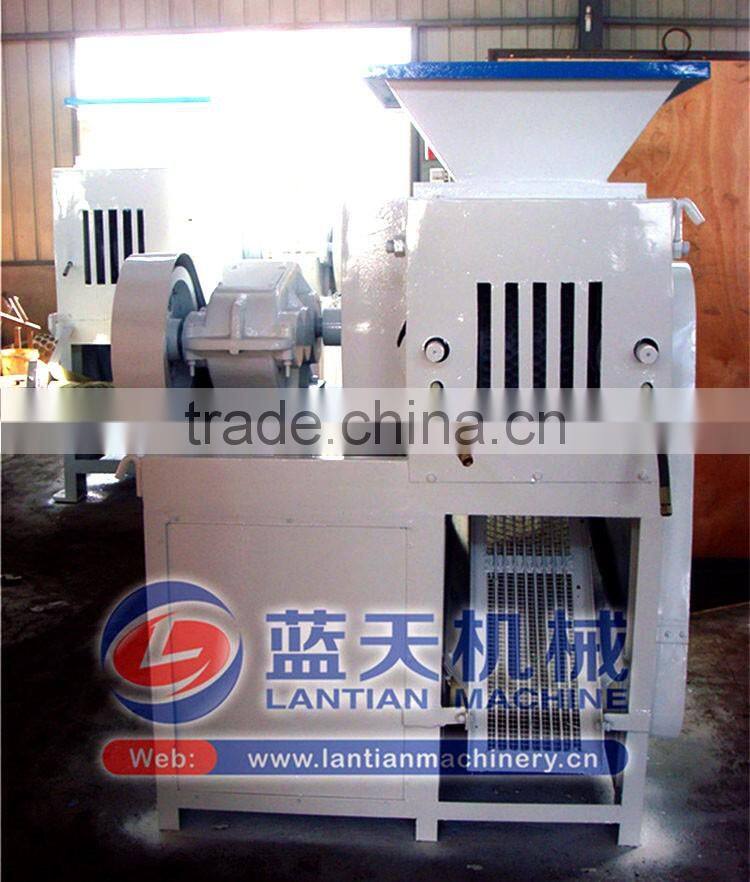

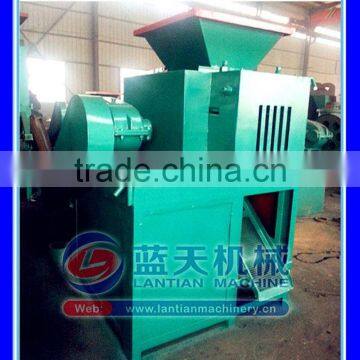

290 type:

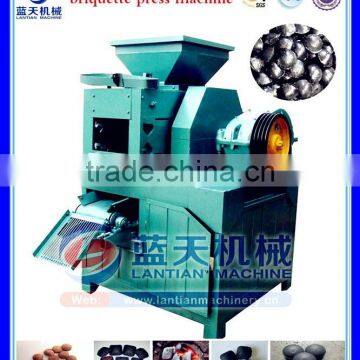

360 type:

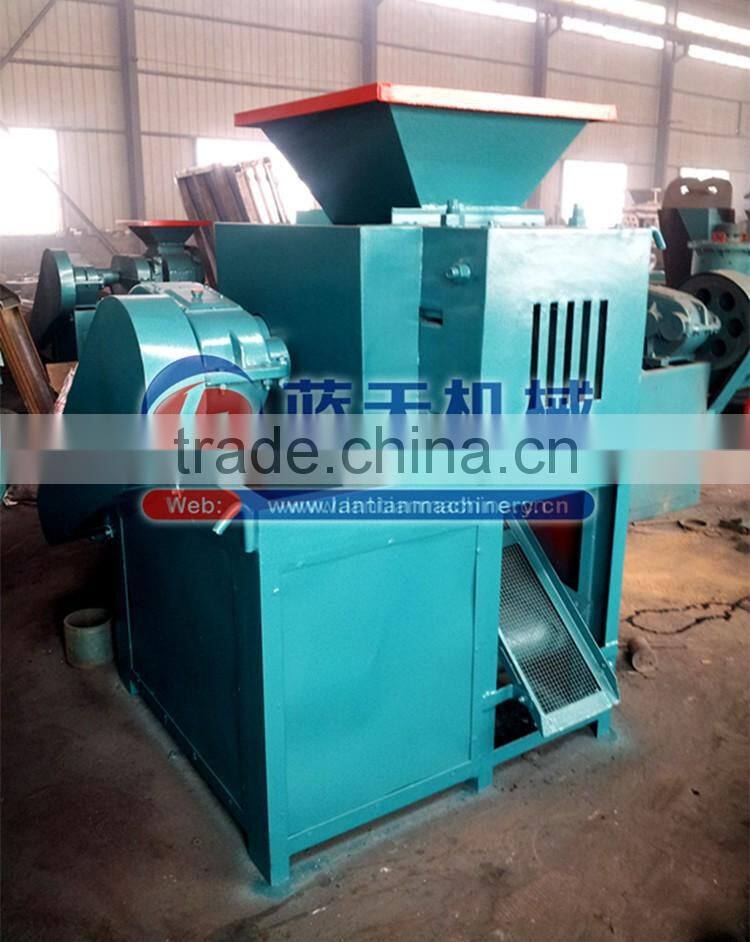

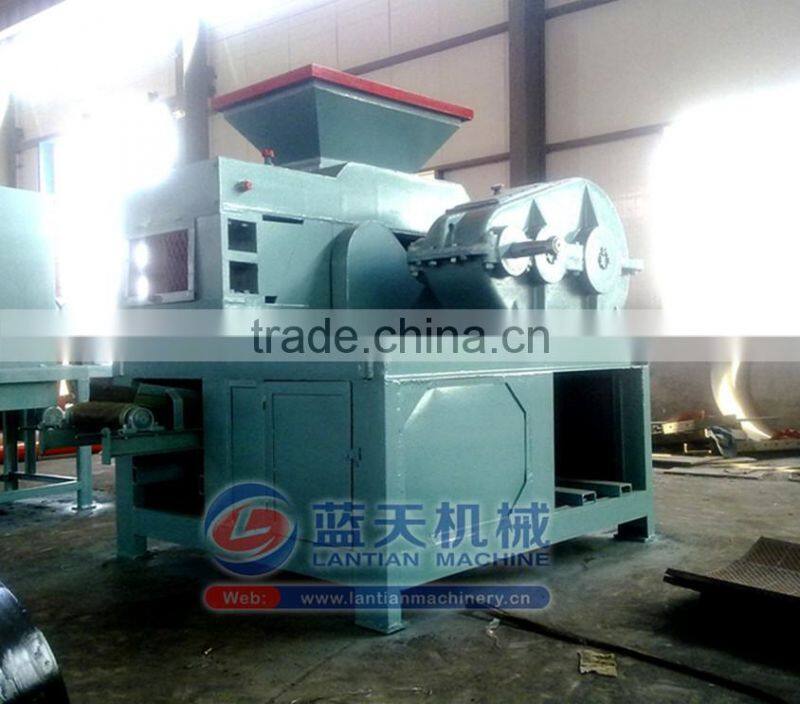

1000 type:
3.Parameters of Manual Ball Press Machine :
Type | Roller Diameter | Capacity | Motor power | Outlet shape and size |
YQJ-290 | 290mm | 1-2 ton/h | 5.5 kw | Customized |
YQJ-360 | 360mm | 3-4 ton/h | 7.5 kw | Customized |
YQJ-450 | 450mm | 5-6 ton/h | 15 kw | Customized |
YQJ-550 | 550mm | 6-10 ton/h | 18 kw | Customized |
YQJ-650 | 650mm | 10-15 ton/h | 25 kw | Customized |
YQJ-850 | 850mm | 15-25 ton/h | 30-55 kw | Customized |
YQJ-1000 | 1000mm | 25-35 ton/h | 75-130 kw | Customized |
Note: The capacity below is based on the coal powder, and the real machine and real capacity is accordiing the materials you use.

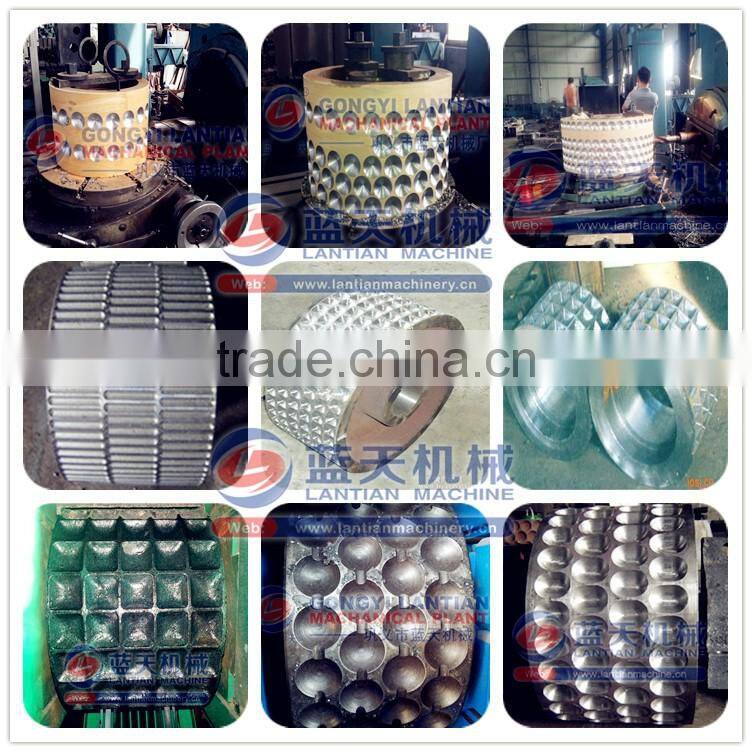

4.Different moulds:

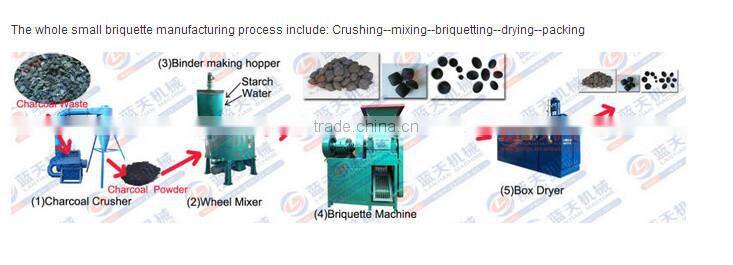

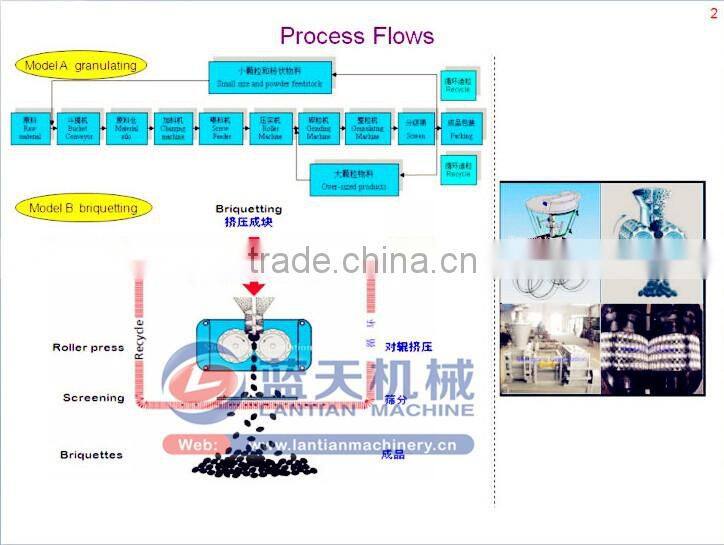

5. The Manual Ball Press Machine production line:
Raw material-----Crushing -----Mixing-----Feeding-----Briquetting----Final briquette----Dryer:
1.Raw Material:
1)more than 30 kind of materials can be as raw materials,such as Wood sawdust, rice hull,
peanut shell, bamboo sawdust, tree branch, plant straw, tobacco/tea/wheat waste,etc.
2.) put 3 tons raw material will output 1 ton finished charcoal.
2.Crusher and mixer: need to crush the raw materials <10mm.
3.Briquette Forming Machine:
used to change raw materials into different shape charcoal,such as square shape, hexagon shape, enneagon shape etc.
4.Drying machine: we have box dryer,vertical dryer,heat pump dryer for it.
6. The working site of Manual Ball Press Machine :
The package and shipping:
FAQ about briquette ball press machine:
1.How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
2..What's the best raw material moisture for briquette coal ball press?
Answer:10%-12%. If material moisture is larger, we had better dry it firstly.
3..What's the max. feeding size for ball press?
Answer:3mm.If larger, we will need crusher.
4.What's the briquette size can be made by your briquette coal ball press?
Answer:Normally the briquette diameter is between 30-60mm.We also can custom made the briquette size according the customer's requirement.
5.Will this machine requires binder for making briquettes?
Answer:Yes, in order to make sure the briquette strength, we will need binder.
1. Established in 1980s, our company covers an area of 100,000 square meters which includes 66,000 square meters of workshops. We have the most advanced technology, most strict process, from material purchase to the finished products, all strictly according to the national quality inspections standards.It mainly specilize in charcoal making machine, sawdust briquette machine,briquette machine,powder making machine,extruder machine, BBQ machine,honeycomb briquette machine,carbonization furnace,heat pump dryer and so on.
2. As manufactures, we have more than 30 years of experience, our products all achieved patent certificates, and our company has many times achieved the title of honer: " Observe Contract and Keep Promise" " Quality Trustworthy Product" "Good After-sales Service Reputation", etc.
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station.
