Specifications
mildy wash filling and sealing machine1.Compact Design
2.Driving Parts Fully-closed
3.Pneumatic Tube Washing & Feeding
Mildy Wash / Plastic Tube Filling and Sealing Machine-ZHY-60YP
Features of Mildy Wash Filling and Sealing Machine :
1.Compact Design
2.Driving Parts Fully-closed
3.Pneumatic Tube Washing & Feeding
4.Intelligent Temperature Control and Cooling System
5.Easy to Operate and Adjust
6.316L Stainless Steel Contact Parts to meet GMP Standard
7.Safety Interlock Shutdown when Door is Open
8.Overload Protection Provided
9.Automated Working process from Tube Loading to Finished Products Output
10.Automatic Orientation Effected by Photoelectric Induction
Optional Devices of Mildy Wash Filling and Sealing Machine :
1.Chiller
2.Date Coding Embossing
3.Automatic Tube Feeding Magazine
4.Change Part
Technical Parameters of Mildy Wash Filling and Sealing Machine :
Filling volume |
1-250ml/unit (Adjustable) |
Filling accuracy |
less than±1percent |
Capacity |
2400-3600unit/hour, Adjustable |
Tube diameter |
Φ10-50 mm |
Tube length |
50-200mm |
Hopper volume |
40L |
Power |
380V/220V (Optional) |
Air pressure |
0.4-0.6 MPa |
Equipped motor |
1.1KW |
Machine power |
5kw |
Inner wind motor |
0.37kw |
Convulsions motor |
0.37kw |
Dimension |
1950*760*1850(mm) |
Weight |
About 950 Kg |
|
|
Notice:this Plastic Tube Filling and Sealing Machine should equipped with a ZH-C Refrigerator
Main features and technical parameters of ZH-C Refrigerator :
Power |
Displacement |
Refrigerating temperature |
1500W |
20L/m |
10-20<°C |

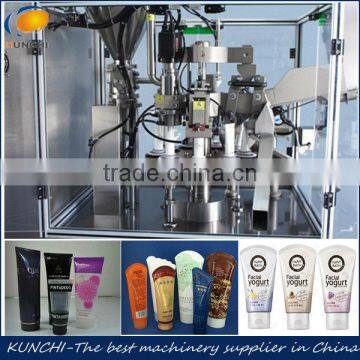

Photo show of Mildy Wash Filling and Sealing Machine :
working demo:
Packing:
Plastic tubes after filling and sealing (final products) :
Kind remind:
If you are interested in this machine, please detail your requirements while you are sending your inquiry, the more, the better, so that we can give you the best recommendation.
