automatic simple structure and convenient operation paste and liquid filling machine

FOB Price

USD $1,050 - $3,200 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port any port of china
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Food, Commodity, Medical, Chemical	Packaging Type	Bottles, Stand-up Pouch, Bags
Packaging Material	Plastic, Metal	Automatic Grade	Automatic
Driven Type	Electric	Voltage	380V
Place of Origin	Henan, China	Brand Name	KUNCHI
Model Number	JF-I-60	Dimension(LWH)	700250300mm
Weight	13kg	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

paste and liquid filling machine
1.piston made of PTFE material pneumatic parts
2.with a foot switch and auto- filling

automatic simple structure and convenient operation paste and liquid filling machine

Work principle of paste and liquid filling machine

A. Through the cylinder's movement of forward and backward to make the piston which is located in the cylinder do reciprocating movement,

so as to occur the negative pressure in the preceding chest of the cylinder

B. The piston is pulled backward when the cylinder make forward movement, the material cylinder occurred negative pressure,

the materials in the barrel are pressed into the feeding pipe by pressure and go into the material pipe through unidirectional valve of feeding and discharging materials.

C. The piston is driven forward when the cylinder make backward movement, the materials are pressed and go into discharging pipe through unidirectional valve of discharging materials,

finally filled into the empty bottle which need to be filled, then one time filling finished.

D. It is a single and simple action to each time of filling for the piston filling machine, so it has very high filling precision and stability to every regular container

Features of paste and liquid filling machine

1.The liquid filling machine cylinder, cabinet, hopper are made of stainless steel ,and the piston made of PTFE material pneumatic parts are imported components, compliance with GMP requirements.

2.Paste filling machine filling volume and filling speed can be adjusted, with a foot switch and auto- filling features.

3.Paste filling machine with high precision, simple structure, convenient operation.

Application of paste and liquid filling machine

This series of horizontal pneumatic semi-automatic paste filling machine widely used for chemical, food, cosmetic,

pharmaceutical, pesticide, oil and other industries liquid, paste, sauce, granular materials’ quantitative filling.

the series of equipment suitable for filling materials

(The same type of material, shapes may vary, the form below is for reference only

Food category

Oil class

Daily necessities

Cream class

Emulsion class

Seasoned class

Other class

Pure water

Distilled water

Running water

Juice

Tea with milk

Juice

Drinks

Jelly

Health wine

Treasure soup

Chicken soup

Cream

Blend oil

Colza oil

Tea seed oil

Soybean oil

Corn oil

.. .. ..

Edible oil

Fatty oil

Volatile oil

Machine oil

Gear oil

Hydraulic oil

Lubricating oil

Oil

Rust oil

Rail oil

Heat

Conduction oil

Mold release oil

Insulating oil

Brake oil

Recovery oil

Waste oil

Pine oil

Grease

Body wash

Shampoo

Hair conditioner

Baked ointment

Skin toner

Facial cleanser

Massage oil

Washing fluid

Essence milk

Liquid

Collars NET

Softener

Bleach

Fragrance liquid

Toothpaste

Paste

Extract

Cleaning agents

Protective agent

Additive

Active agent

Healing agent

Coupling agent

Flux

Glass liquid

Braked fluid

Antifreeze

Coolant

Dye hair cream

Cleansing cream

Skin cream

Hand cream

Sunscreen

Essence cream

Segregation frost

Cream

Lip balm

Solder paste

Soft cream

Milk cream

Vanishing cream

Chilblain ointment

Deodorant

Sesame paste

Peanut butter

Tomato sauce

Soybean paste

Seafood sauce

Fruit sauce

Seasoning

Sauce

Flavoring agent

Sweeteners

Preservative

Brightener

Thickener

Juice

Concentrate

Spices

Essence

Soy sauce

Vinegar

Resin

Fill fetal liquid

Cleaning cream

Color paste

Puree pulp slurry

Curing agent

Defoamer

Resin adhesive

Pesticides

Medicine glue

Extract honey Royal jelly

Technical parameter of filling machine

Single-head:

Model	JF-I-60	JF-I-125	JF-I-250	JF-I-500	JF-I-1000	JF-I-2500	JF-I 5000
Air supply	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
Filling volume	3-60ml	10-125ml	10-250ml	20-500ml	50-1000ml	100-2500ml	200-5000ml
Filling speed	≤30pcs/min	≤30pcs/min	≤30pcs/min	≤20pcs/min	≤20pcs/min	≤15pcs/min	≤12pcs/min
Material	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304
Weight	13kg	14kg	16kg	18kg	22kg	28kg	35kg
Packing size(mm)	700250300				800250320		1200300350

Two-head:

Model	JF-II-60	JF-II-125	JF-II-250	JF-II-500	JF-II-1000	JF-II-2500	JF-II-5000
Air supply	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
Filling volume	3-60ml	10-125ml	10-250ml	20-500ml	50-1000ml	100-2500ml	200-5000ml
Filling speed	≤60pcs/min	≤60pcs/min	≤60pcs/min	≤40pcs/min	≤40pcs/min	≤30pcs/min	≤30pcs/min
Material	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304
Weight	22kg	24kg	27kg	32kg	36kg	40kg	52kg
Packing size(mm)	700420300				800420320		1200500350

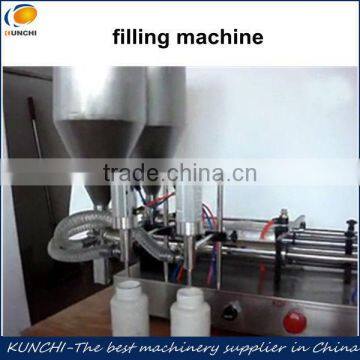

Picture show of filling machine
