Specifications
Aluminum Foil Sealing Machine1.Induction sealing
2.latest design
3.low cost & high efficiency
Automatic continuously sealing Aluminum Foil Sealing Machine
Features of Aluminum Foil Sealing Machine
1.Induction sealing
2.latest design
3.low cost & high efficiency
4.Automatic continuously sealing, easy installing, testing and operating
5.all stainless steel
6.beautiful and dignified
7.performance stable and reliable
8.meet a criterion of GMP
Main Introductions of Aluminum Foil Sealing Machine
the aluminum foil sealing machine is mainly suitable for the bottle mouth sealing of flat plastic, glass and other non-metal bottles with threaded form. Not suitable for metal, no thread bottle caps.
It making products have good waterproof, anti-oxidation and prolong the length for preservation. That’s why the sealing machine is necessary in many industries.
Our Induction Aluminum Foil Sealing Machine can be totally divided into three Types: Handheld Portable Type, Desktop Full-automatic Type and High Speed Continuous Assembly Line Type.
All of them meet a criterion of GMP.
Applications of Aluminum Foil Sealing Machine
Mainly for continuity sealing for both workshops and mass productions in the fields of food/ grocery, cosmetic, medicine, oil, daily chemicals,
agrochemicals and other industries. (Our company also provides all kinds of material-induction aluminum foil film.)
The machine mainly working for assembly line. 24 hours continuously working.
Working principle of Aluminum Foil Sealing Machine
Handheld type | Installed with a limited electro circuit in the mainframe in order to avoid damage caused by excessive electric current. Is a sealed process without contiguous, it makes high heat through electromagnetic induction in a moment, that is that aluminum foil is fused on the bunghole, the process is adapt to seal up for safekeeping which most of merchandises without pollution. |
Desktop type | Making use of the principle of electromagnetic. Bottleneck’s aluminum foil makes high heat in a moment, and then makes it fused on the bottleneck so that the machine could be up to the sealing function. |
High Speed Continuous type | Bottleneck’s aluminum foil makes high heat in a moment, and then makes it fused on the bottleneck so that the machine could be up to the sealing function. There are two sets of Main Board and Power Amplifier in it so that it could generate enough electric current and satisfy the rapid sealing. And equipped with delivering set so as to high speed produce easily. |
Main Parameters of Aluminum Foil Sealing Machine
Type | Model | Capacity (bottle/min) | Sealing Diameter (mm) | Power (w) | Mainframe Size (mm) | Weight (kg) |
Handheld type | GLF-300 | 0-40 | 15-60 | 300 | 310×240×150 | 3 |
GLF400-1000 | 0-40 | 8-60/60-120/120-300 | 400-1000 | 310×240×150 | 3.5 | |
GLF-421K | 0-40 | 15-60/60-120 | 400-1000 | 310×240×150 | 3.5 | |
Desktop type | GLF1400 | 0-110 | 15-70 | 1400 | 810×390×310 | 42 |
GLF1400S | 0-140 | 10-55 | 1400 | 810×390×310 | 42 | |
GLF1400N | 0-110 | 15-70 | 1400 | 805×310×330 | 40 | |
GLF1400NS | 0-140 | 10-55 | 1400 | 805×310×330 | 40 | |
GLF1600 | 0-100 | 30-105/65-150 | 1600 | 1005×310×330 | 46 | |
High Speed Continuous type | GLF1800 | 0-200 | 15-45/30-60/40-120 | 1800 | 420×310×940 | 55 |
GLF2100Z | 0-200 | 10-80 | 2100 | 1500×640×1150 | 82 | |
GLF2100L | 0-200 | 10-80 | 2100 | 420×310×940 | 58 | |
GLF3500Z | 0-240 | 20-80 | 3500 | 1500×640×2150 | 100 | |
GLF3500L | 0-240 | 20-80 | 3500 | 1420×750×1360 | 82 |

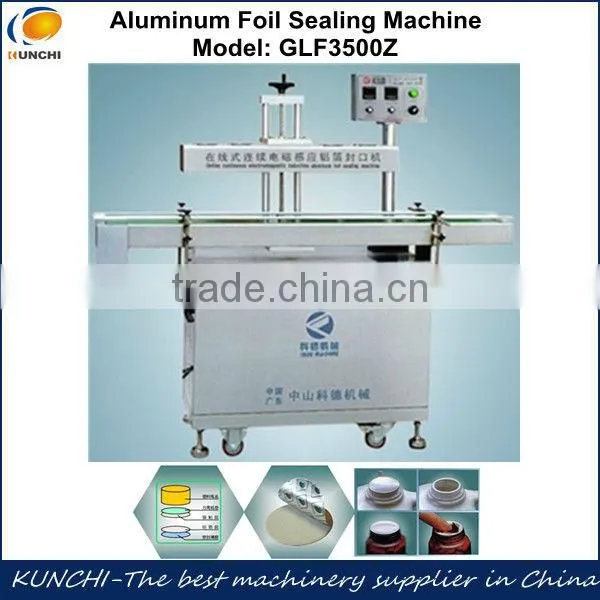

Picture show of Aluminum Foil Sealing Machine
