Best selling high capacity screw oil press machine with factory price
- 500 Set / Sets per Month
- Any China Port
- T/T Credit Card
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, oil press machine | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 200-300kg/h | Place of Origin: | Henan, China |
Brand Name: | KUNCHI | Model Number: | 6YL-120 | Voltage: | 380v |
Power(W): | 11000w | Dimension(L*W*H): | 2050x1350x2000mm | Weight: | 1000kg |
Certification: | ISO 9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
oil press machine1. produce different oil.
2.great performance and good qulity
3. low cost

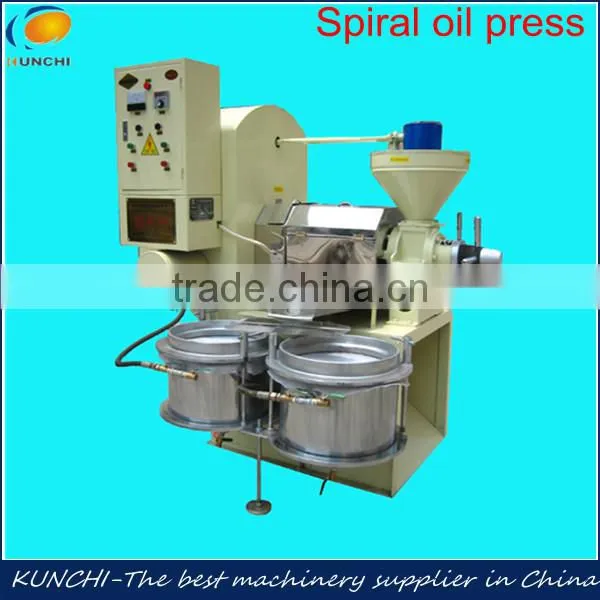

High capacity screw oil press
Features of oil press machine:
Simple design , easy to operate , wide suitability , continuous operation, high productivity and high oil product ratio.
Operating principle of oil press machine:
1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
Construction features of oil press machine:
6YL series spiral oil press is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.
Main technical parameters of oil press machine:
Model | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 |
Screw speed | 30-45r/min | 30-40 r/min | 30-40 r/min | 28-40 r/min | 28-40 r/min |
gear ratio | 14/42x19/57=1:6.63 | 15/40x15/55=1:9.78 | 15/34x15/55=1:9.59 | 15/38x19/48=1:7.38 | 15/38x15/52=1:8.78 |
Dimension | 1650x1150x1750 | 1950x1300x1900 | 2050x1350x2000 | 2200x1600x2150 | 2500x1600x2500 |
Productivity | 80-150kg/h | 150-250kg/h | 200-300kg/h | 250-400kg/h | 450-600kg/h |
Power | Y160L-6-5.5KW | Y160M-6-7.5KW | Y160L-6-11KW | Y180L-6-15KW | Y200L-6-18.5KW |
Vacuum pump | Y90S-4-0.55KW | Y90S-4-1.1KW | Y100L1-4-1.5KW | Y100L1-4-2.2KW | Y100L1-4-2.2KW |
Heater | 2KW | 3KW | 3.3KW | 3.8KW | 4KW |
The above parameters is according to oil material that is refined, separated, flaked, steamed and fired, and the auxiliary equipments are complete with reasonable techniques.

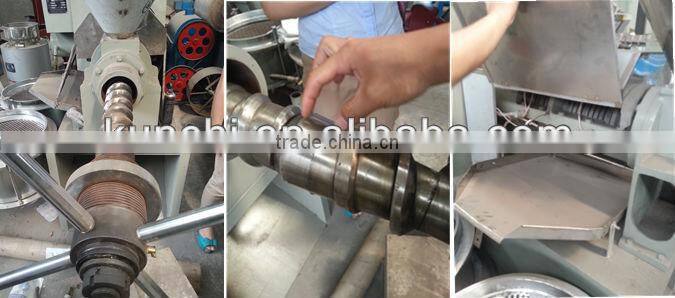

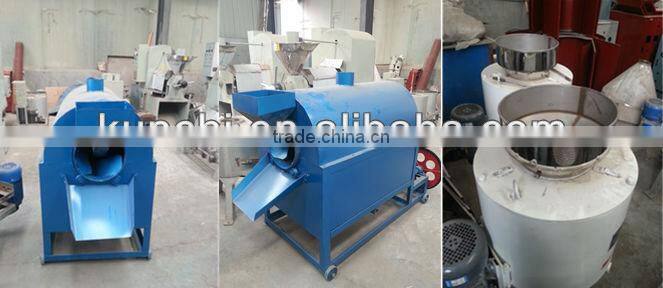

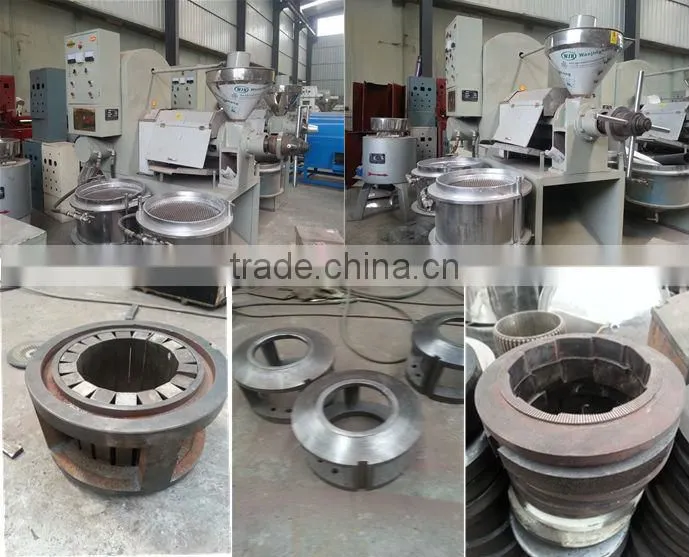

Picture shows of oil press machine:
Raw materal:
For the detailed information, please contact me freely!
