Specifications
concrete batch plantPortable concrete mixer;
The first use of cast steel gear ring in the same industry;
Better materials
Concrete batch plant
Features of concrete batch plant :
Electric Concrete Mixer
1. Portable concrete mixer, the first use of cast steel gear ring in the same industry.
2. Better materials, drum wall thickness is 6-8 mm, for longer durability.
3. Brand name parts, such as the speed reducer, electromotor and cable wires.
4. Reasonable price, high quality.
5. Reliable supplier.
Brief introduction of concrete batch plant :
JZC Series concrete mixers are gravity types bipyramid reversal discharging mixers. Mixing drum moved by gear transmission, when it works, foreward means mixing and stirring, inversion means discharging.
JZC Series concrete mixers are designed and manufactured according to GB/T9142-2000 Concrete Mixer Technology Conditions, are advanced types that with the features of high output capacity, good performance of mixing, handsome appearance, can be moved easily, etc.
Application of concrete batch plant :
This series of concrete mixture can mix and stir plastic and half dry concrete, applied for General construction sites, road, bridge engineering and various kinds of concrete members factory.
Includes 3 mainly models as JZC350, 500 and 750. Main differences of them are out-put capacities. Among them 750 is a stationary type, it can not only be used as single machine, but also combined with a dosing machine and built to a mixing plant.
Except JZC-750, other two types are mobile type, can be moved very completely.
Kind remind of concrete batch plant :
Different models of this Electric Concrete Mixer for your option: In addition to the three best selling models JZC350, 500 and 750, we also can supply you JZC250, 400, 1000 and 1500. They can meet your diversity demand of output capacities. The Models are rich in order to meet customers’ quantity demand.
Factory direct sale. We are the manufacturer's subsidiary. With the mature technology and better materials, we have obtained a dominated position of marketing occupation ratio in China.
Parameters of concrete batch plant :
Models | JZC350 | JZC500 | JZC750 | |
Performance | Discharging capacity (L) | 350 | 500 | 750 |
Charging capacity (L) | 560 | 800 | 1200 | |
Productivity(m3/h) | 10-14 | 18-20 | 20-22 | |
Mixing drum rotate speed (r/min) | 14 | 13 | 13 | |
Precision of water supply | Random error ≤ 2% | Random error ≤ 2% | Random error ≤ 2% | |
Motor | Mixing motor(KW) | 5.5 | 11 | 15 |
Elevating motor (KW) | 5.5 | 5.5 | 7.5 | |
Water pump motor (KW) | 0.55 | 0.75 | 1.1 | |
Others | Overall size (L*W*H) (mm) | 2766×2140×3000 | 5226×2200×5460 | 6116×2056×6060 |
Weight (Kg) | 1950 | 3100 | 4200 | |

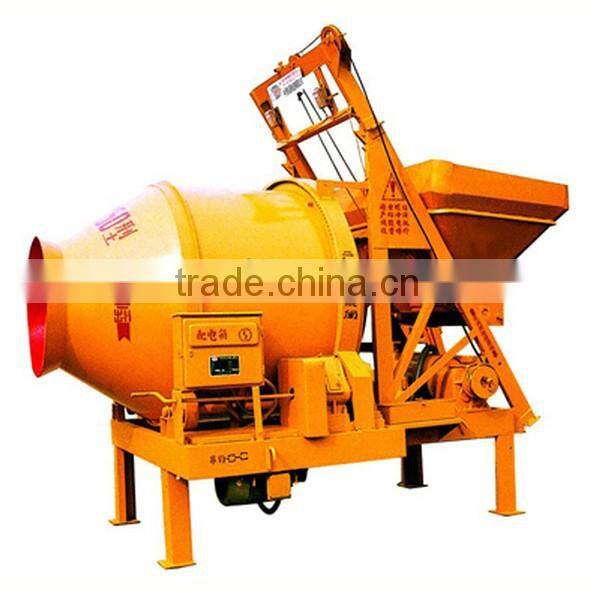

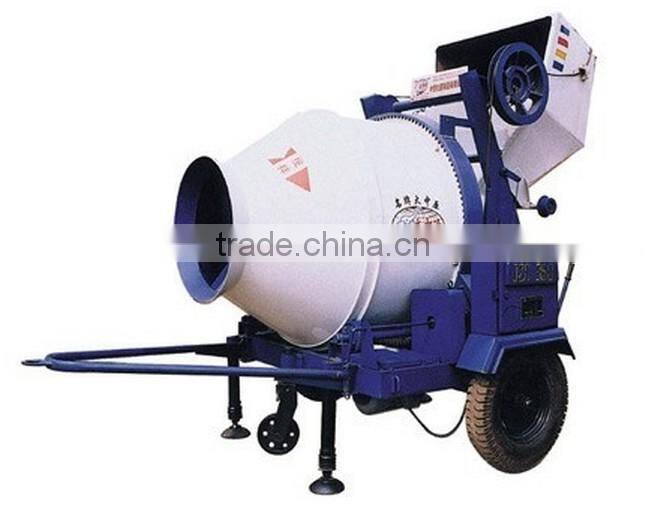

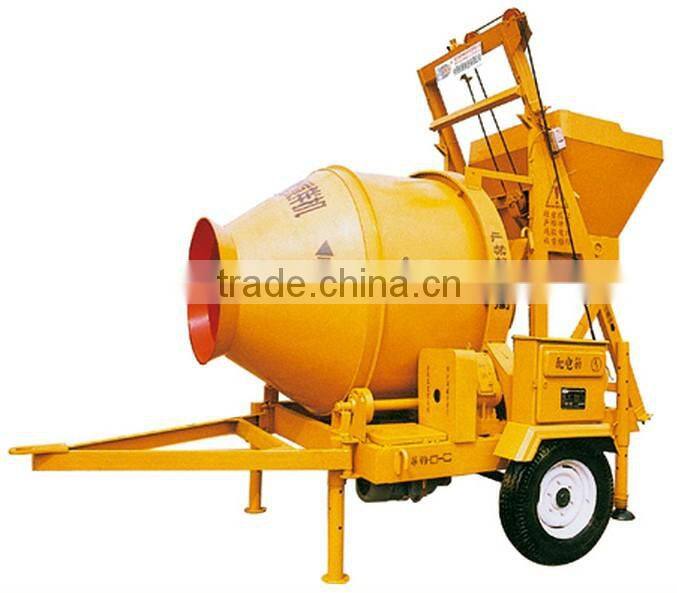

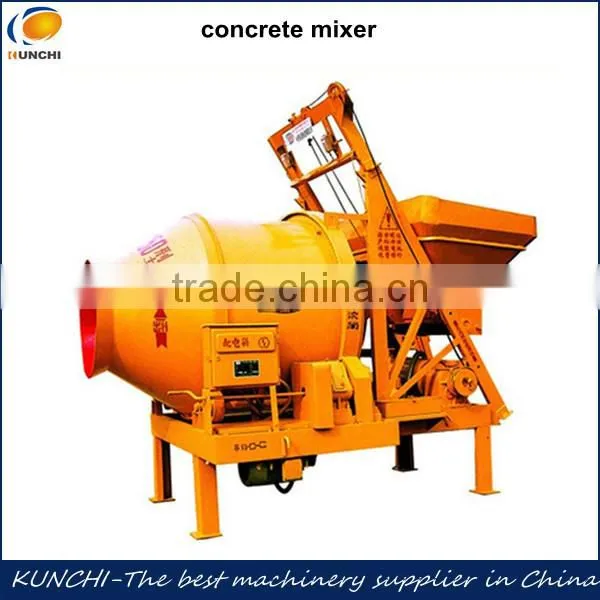

Photo show of concrete batch plant :
