Specifications
oil presser1.many years experience
2.stainless steel
3.different scales
4.stable operation
Best qualiy screw oil expeller series
Features of oil expeller:
Simple design , easy to operate , wide suitability , continuous operation, high productivity and high oil product ratio.
Operating principle of oil expeller :
1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
Construction features of oil expeller :
6YL series spiral oil press is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.
Main technical parameters of oil presser :
Model |
6YL-80 |
6YL-100 |
6YL-120 |
6YL-130 |
6YL-160 |
Screw speed |
30-45r/min |
30-40 r/min |
30-40 r/min |
28-40 r/min |
28-40 r/min |
gear ratio |
14/42x19/57=1:6.63 |
15/40x15/55=1:9.78 |
15/34x15/55=1:9.59 |
15/38x19/48=1:7.38 |
15/38x15/52=1:8.78 |
Dimension |
1650x1150x1750 |
1950x1300x1900 |
2050x1350x2000 |
2200x1600x2150 |
2500x1600x2500 |
Productivity |
80-150kg/h |
150-250kg/h |
200-300kg/h |
250-400kg/h |
450-600kg/h |
Power |
Y160L-6-5.5KW |
Y160M-6-7.5KW |
Y160L-6-11KW |
Y180L-6-15KW |
Y200L-6-18.5KW |
Vacuum pump |
Y90S-4-0.55KW |
Y90S-4-1.1KW |
Y100L1-4-1.5KW |
Y100L1-4-2.2KW |
Y100L1-4-2.2KW |
Heater |
2KW |
3KW |
3.3KW |
3.8KW |
4KW |
The above parameters is according to oil material that is refined, separated, flaked, steamed and fired, and the auxiliary equipments are complete with reasonable techniques.

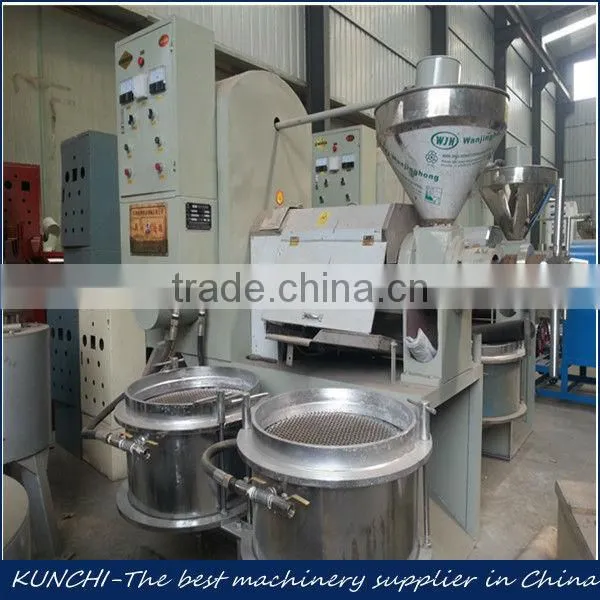

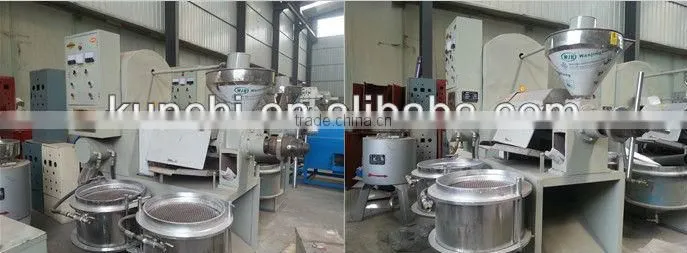

Photo show of oil expeller :

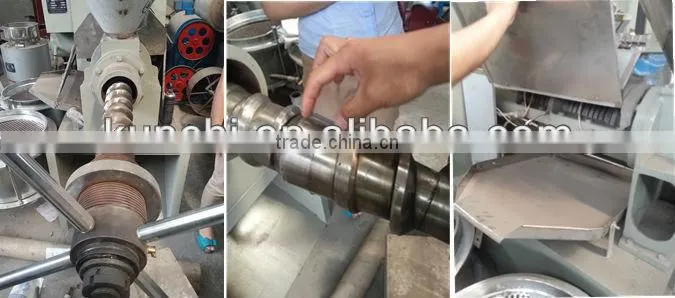

Parts of oil expeller :

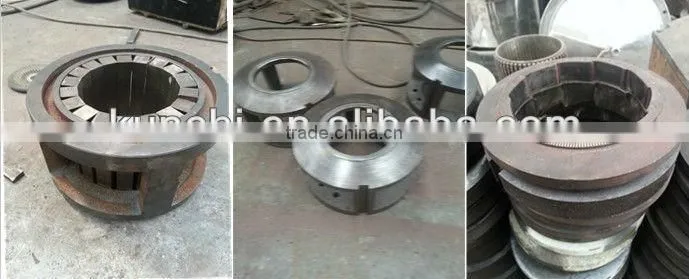

Details of oil expeller :

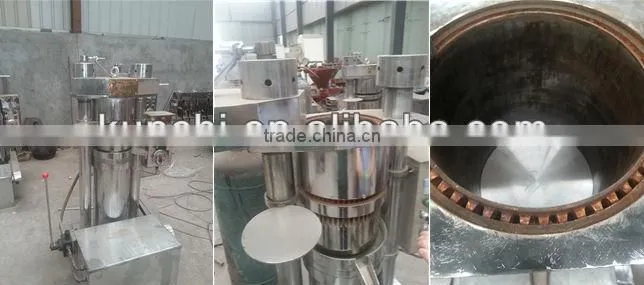

hydraulic pressure of oil expeller :
