High quality animal feed mixer grinder/ animal feed grinder and mixer
- 500 Set / Sets per Month
- Ang China Port
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | KUNCHI |
Model Number: | KC-500 | Type: | Other, feed grinder and mixer | Voltage: | 380V |
Power(W): | 7500 | Dimension(L*W*H): | 2300*1050*2500MM | Weight: | 430 kg |
Certification: | ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
animal feed mixer grinder1.specially designed
2.crush kinds of cereal, grain
3.very convenient
4.easy to operate
Animal feed grinder and mixer
Application scope of Animal Feed Grinder And Mixer :
This animal feed grinder and mixer is specially designed for small farmers, medium and industrial feed processing plant, chicken farm, pig farm, feeding industry.
This feed grinder mixer can be used to crush all kinds of cereal, grain, like corn, wheat, bean, and others to powder that can make animal feed or for other process,
it has the crush and mix function at the same time, very convenient and easy to operate.
Features of Animal Feed Grinder And Mixer :
1.Uses the novel umbrella type decompress machinery and dial sword system, avoid the materials stagnation or running unevenly, can raise the evenness.
2.The top and the bottom axis adopts the novel dust sealing construction, avoid the phenomenon of bearing damage caused by the dust.
3.This machine fast mixing, low energy consumption, good evenness,bulletproof,is suitable for small-sized feed factories and family-style livestock and farm.
4.Self-suck type feeding material for crusher part.
5.It occupy a small place and easy to install and carry.
Working principle of Animal Feed Grinder And Mixer:
The machine consists of a feeding machine, grinder, mixer.Usually it is matched using for the pellet machine for the animal feed processing.
1.The crushing structure: There are two ways to input the materials: automatically or manually. When the raw materials were put into the crushing room, with the beating of the hammer leaf and the scrubbing of the air, the raw materials will be crushed into mealiness or graininess. Then under the effect of the centrifugal air, the mealiness or the graininess will get in to the A impeller casing through the sieve pore.
2.The materials mixing structure: with the whirling of the thruster, the materials will be transferred into the material pipeline by the B hammer room by force. There, the materials will be lifted to the top of the room and be totally mixed up and down and spinned from left to right via the air. Thus the materials can be evenly mixed which is quite ideal.
Technical parameter of Animal Feed Grinder And Mixer :
Model | Power(kw) | Output (kg/h) | Size (mm) | Weight (kg) | Volume (m³) | Mixing Uniformity (CV%) | |
grinder | mixer | ||||||
KC-500 | 7.5-11 | 3 | 500-700 | 2300*1050*2500 | 430 | 0.5 | ≥ 95 |
KC-750 | 7.5-11 | 3 | 700-900 | 2350*1160*2600 | 460 | 0.75 | ≥ 95 |
KC-1000 | 7.5-15 | 3-4 | 1000-1500 | 2400*1300*2900 | 540 | 1 | ≥ 95 |
KC-1500 | 11-15 | 4 | 1500-2000 | 2798*1200*3020 | 800 | 1.5 | ≥ 95 |
KC-2000 | 11-15 | 4 | 2000-2500 | 2800*1750*3100 | 1000 | 2 | ≥ 95 |

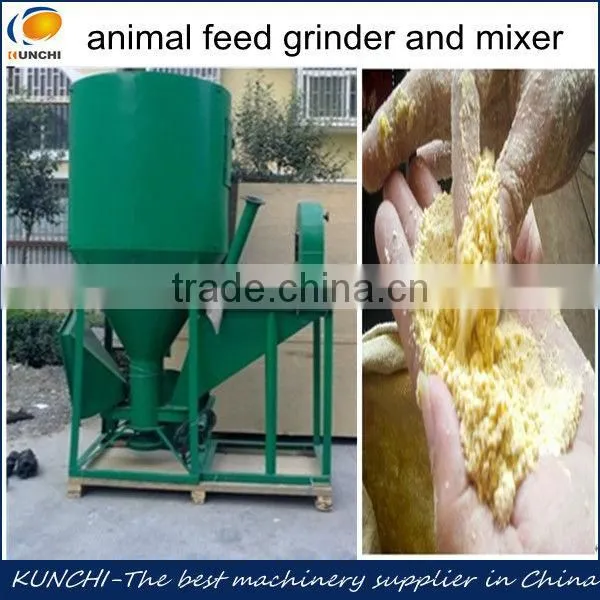

Photo show of Animal Feed Grinder And Mixer :
Working principle of feed grinder and mixer:
